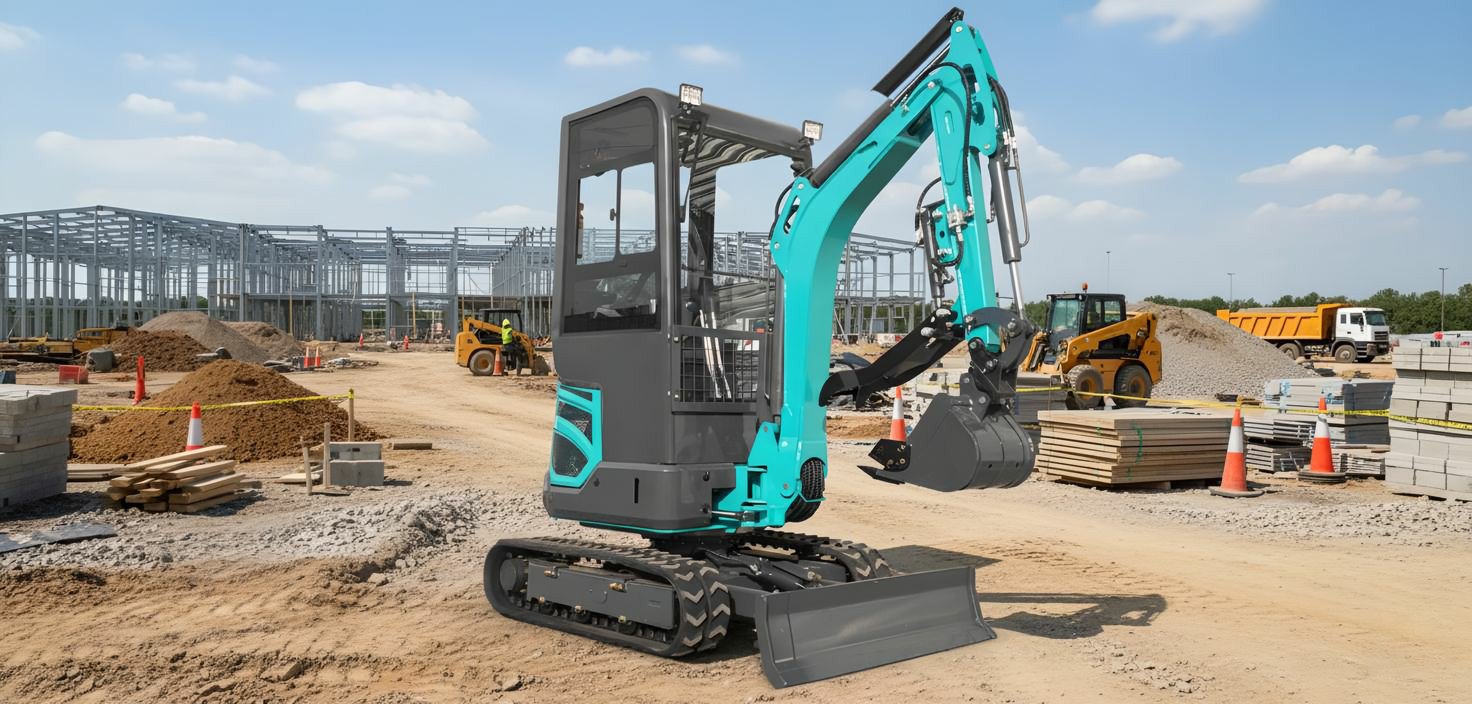

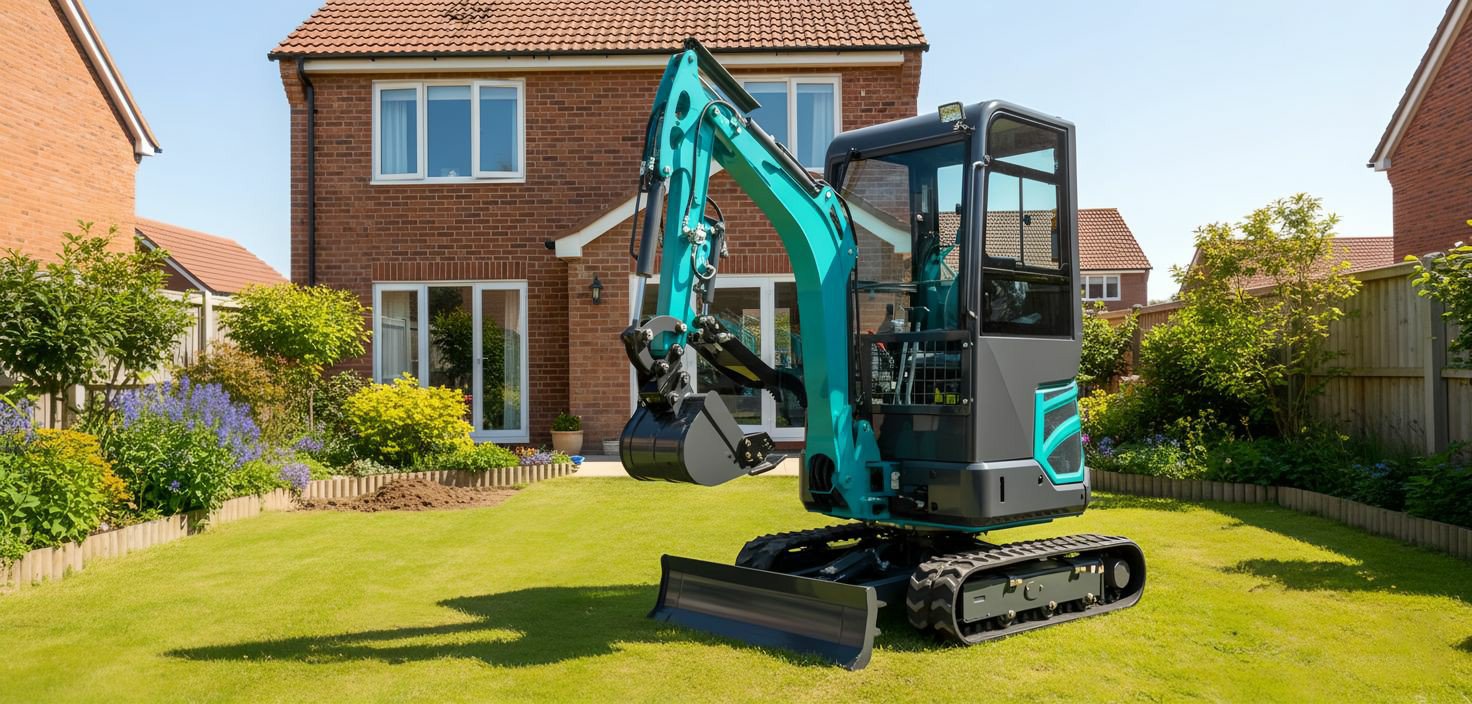

1.8T Mini Excavator
(1) Compact structure, small turning radius, flexible movement, very suitable for operating in narrow spaces such as indoor decoration, landscaping, and ditch excavation. (2) Equipped with a well-known brand engine, reliable quality, strong power, low fuel consumption, and easy starting. (3) Adopting a high-performance brand hydraulic system, excavation, swinging, and walking are smooth and precise, with sensitive and stable movements. (4) Electric start, easy to operate; The human centered control layout reduces operator fatigue. (5) The whole machine has undergone spray coating and rust prevention treatment, with a beautiful appearance, durability, corrosion resistance, and long service life. (6) Compliant with international safety standards and certified by CE, ensuring safe and reliable operation.



| Product Parameters | Value |
|---|---|
| Engine Model | KUBOTA D722 |
| Engine Type | Three-cylinder Direct Injection |
| Displacement | 0.719L |
| Rated Power | 10.2kw/2500rpm |
| Type | Gear Pumps |
| Rated Working Flow | 25L/min |
| Arm Digging Force | 5.5kN |
| Bucket Digging Force | 9kN |
| Travel Speed | 2.5km/h |
| Traction Force | 15kN |
| Gradability | 30° |
| Max. Rotation Speed | 9.5r/min |
| Brake Type | Mechanical Brake |
| Machine Weight | 1800kg |
| Bucket Capacity | 0.04m³ |
| Fuel Tank Capacity | 12L |
| Cooling System | 5L |
| Engine Oil Volume | 3.2L |
| Hydraulic Oil Tank Capacity | 15L |
| Overall Length | 3210mm |
| Overall Height (To Top Of Boom) | 1340mm |
| Counterweight Ground Clearance | 445mm |
| Minimum Ground Clearance | 150mm |
| Wheelbase | 1100mm |
| Bucket Width | 430mm |
| Max. Digging Height | 2800mm |
| Max. Dumping Height | 1850mm |
| Max. Digging Depth | 2100mm |
| Max. Digging Radius on Ground | 3550mm |
| Min. Swing Radius of Working Device | 1540mm |
| Max. Lifting Height of Bulldozer | 150mm |
| Max. Cutting Depth of Bulldozer | 220mm |
