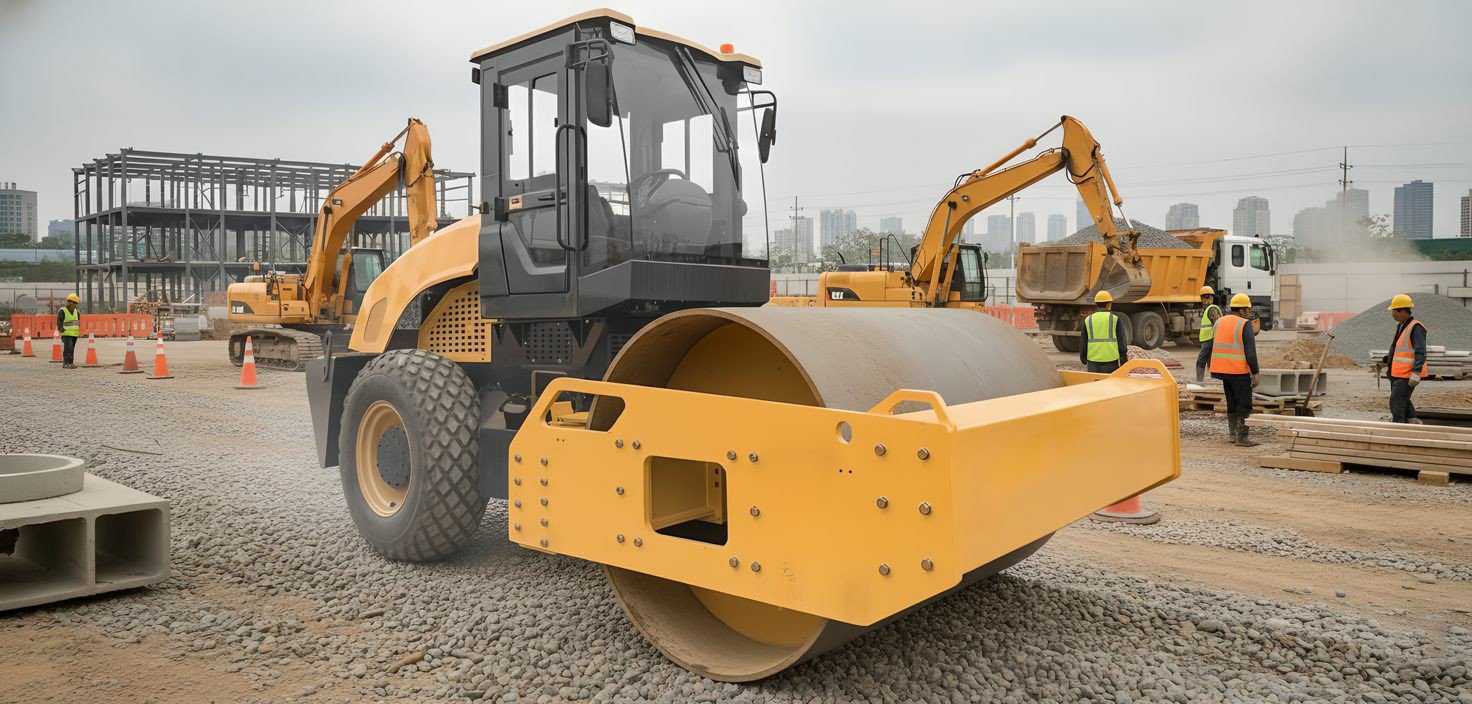

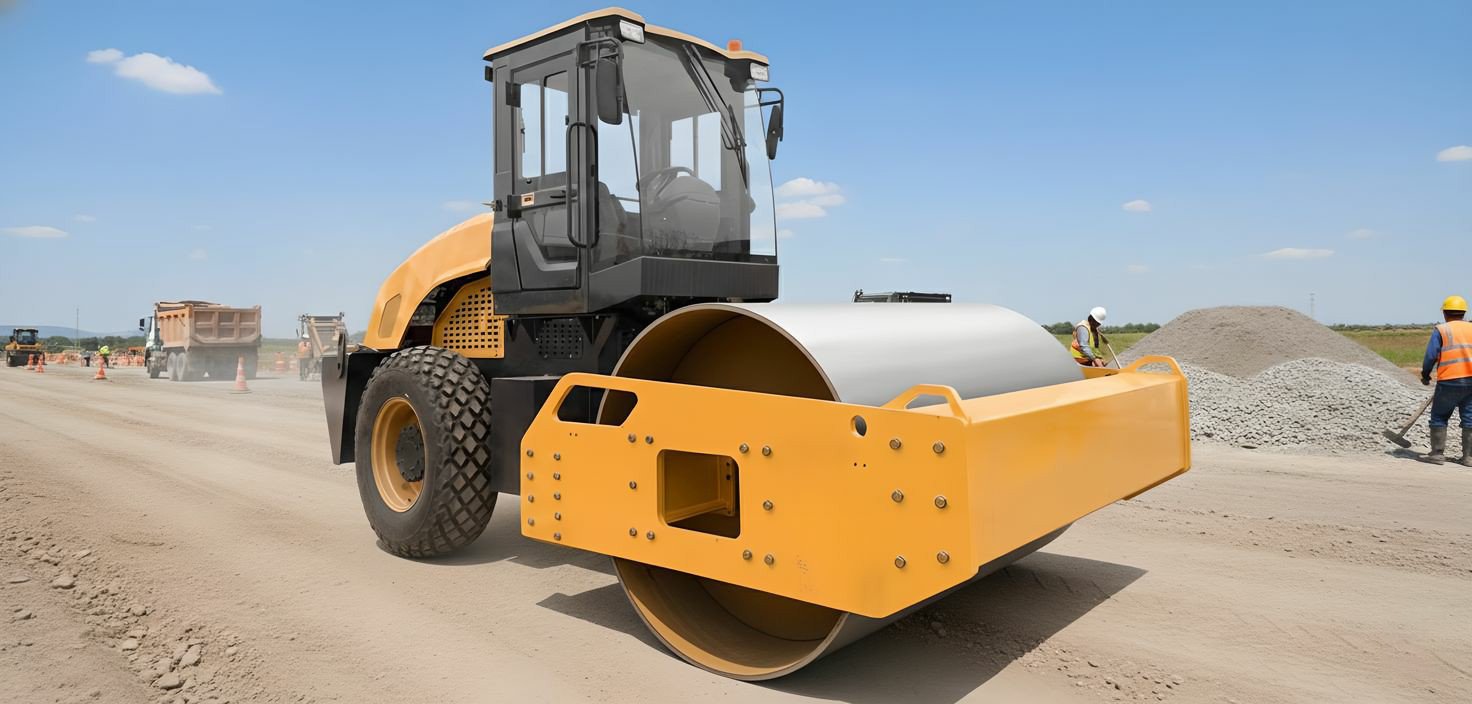

10T Single Drum Road Roller
(1)The small operating radius allows for operation in confinedareas, making it ideal for trench backfilling. (2)The brand-name engine provides ample power, ample power, and stable performance. (3)It utilizes dual hydraulic pumps: a main pump for vibration anda smaller pump for steering. Non-vibrating hydraulic oil fowsdirectly back at low pressure, reducing oil pressure and temperature, making it suitable for extended operations. (4)It is primarily used for backfilling auxiliary roads, pipelinesunderground parking lots,inter-village roads, and gravelfoundation compaction. (5)The plastic-sprayed surface is aesthetically pleasing andrust-resistant. This product is CE-certifed. (6)This machine lacks a clutch and offers continuously variablehigh and low speeds continuously, making operation easy and efficient.



| Product Parameters | Value |
|---|---|
| Operating Weight | 10000kg |
| Static Line Load | 385N/cm |
| Working Speed | 0-16km/h |
| Climbing Ability | 30° |
| Minimum Mturning Radius | 4000mm |
| Hydraulic Oil Tank Capacity | 180L |
| Fuel Tank Capacity | 200L |
| Minimum Ground Clearance | 400mm |
| Vibration Frequency | 37.5Hz |
| Amplitude | 0.6mm |
| Exciting Force | 285/150kN |
| Steel Wheel Diameter | 1400mm |
| Working Width | 2130mm |
| Engine Model | YN38TAF4 |
| Engine Fuel Type | Diesel |
| Engine Rated Power | 74kw(100.6hp) |
| Engine Rated Speed | 2400r/min |
| Wheelbase | 3160mm |
