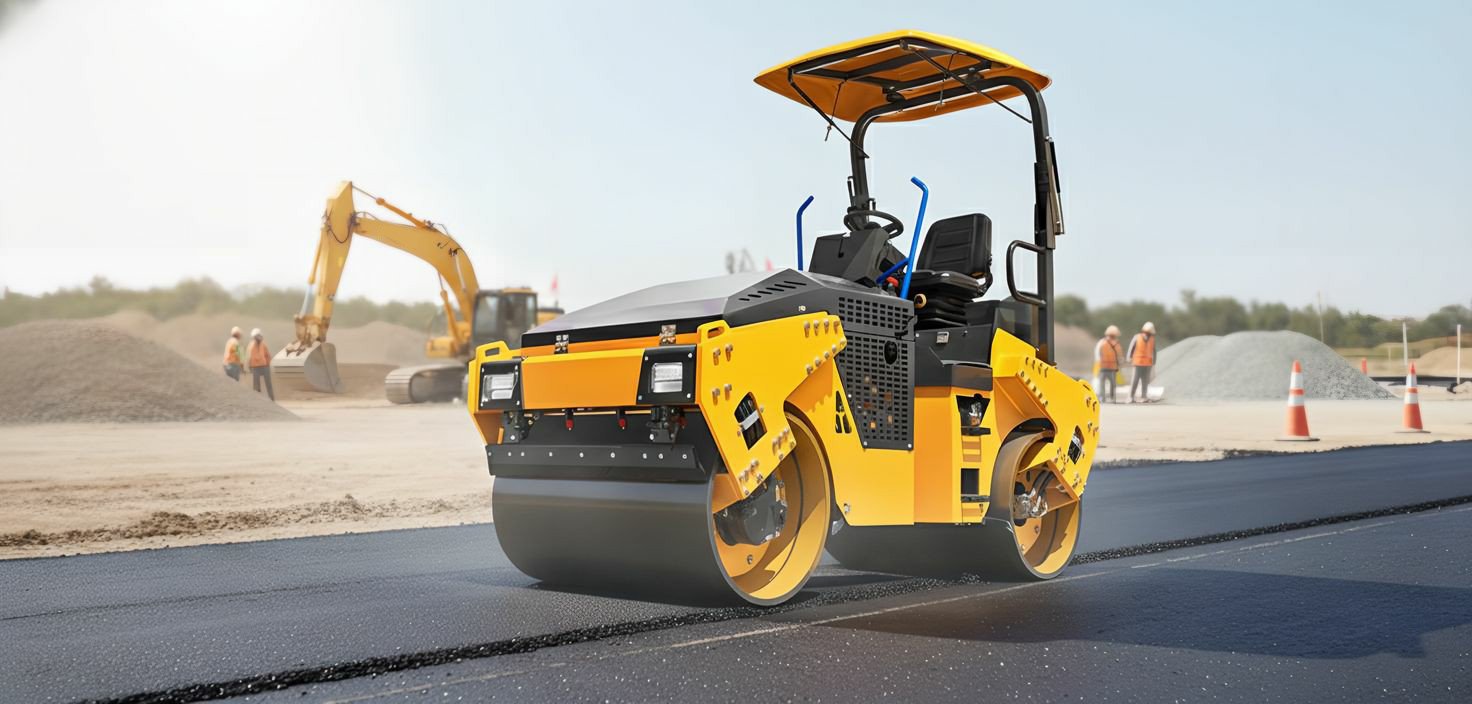

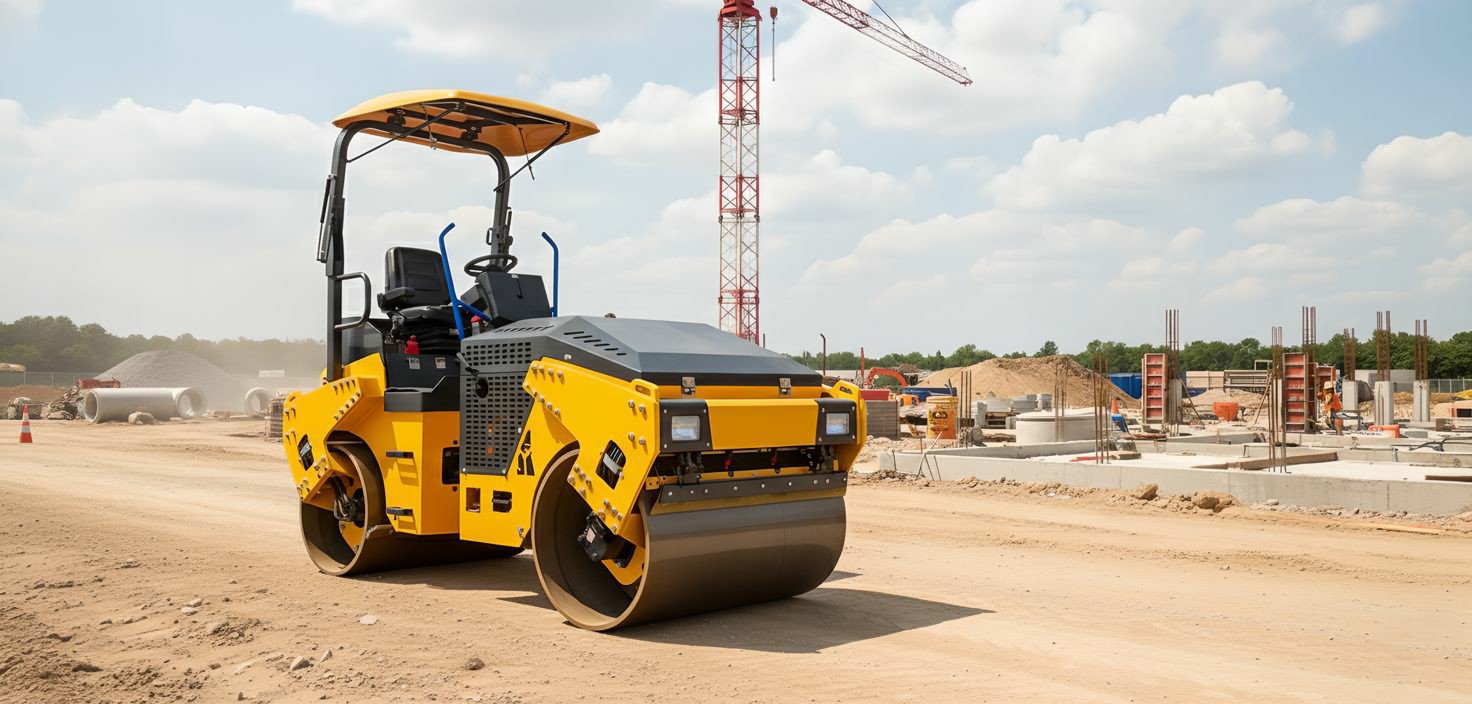

3.5T Double Drum Road Roller
(1)Suitable for compacting and repairing general paving.ment bases and asphalt surfaces on urban roads, inter-city and rural highways, water conservancy projects, stadiums, and other industrial sites. (2)Hydraulically driven with infinitely variable speeds. High-end models feature an LCD display with automaticfault diagnosis for easy and comfortable operation. (3)Vibration control with automatic or electromagneticclutch control. Plastic-sprayed finish for a beautiful, rust-resistant, and corrosion-resistant appearance. CEcertified. (4)Equipped with a parking system for enhanced safety. The low-slung front hood design provides a wide field ofview and facilitates maintenance and repair. (5)Hydraulic dual-amplitude, dual-vibration system. High-pressure vibration is used for compaction, offeringexcellent performance.lt can operate with both wheelsor with independent front-wheel vibration.



| Product Parameters | Value |
|---|---|
| Operating Weight | 3500kg |
| Static Line Load | 125N/cm |
| Working Speed | 0-9km/h |
| Climbing Ability | 30° |
| Minimum Mturning Radius | 3850mm |
| Hydraulic Oil Tank Capacity | 62L |
| Fuel Tank Capacity | 51L |
| Water Tank Capacity | 146L |
| Vibration Frequency | 60Hz |
| Amplitude | 0.5mm |
| Exciting Force | 60kN |
| Steel Wheel Diameter | 700mm |
| Working Width | 1200mm |
| Engine Model | QC-V20-38C41 |
| Engine Fuel Type | Diesel |
| Engine Rated Power | 28kw (38hp) |
| Engine Rated Speed | 2600r/min |
| Wheelbase | 1930mm |
