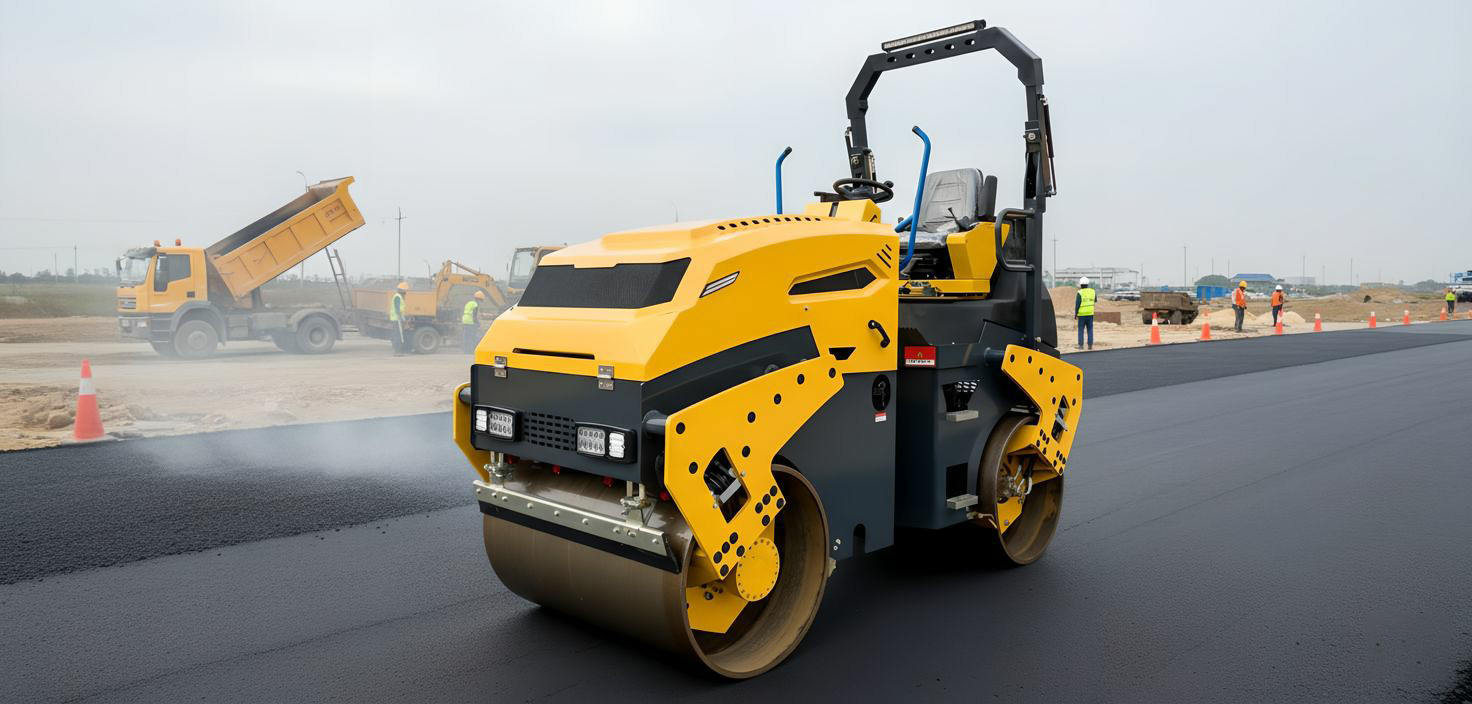

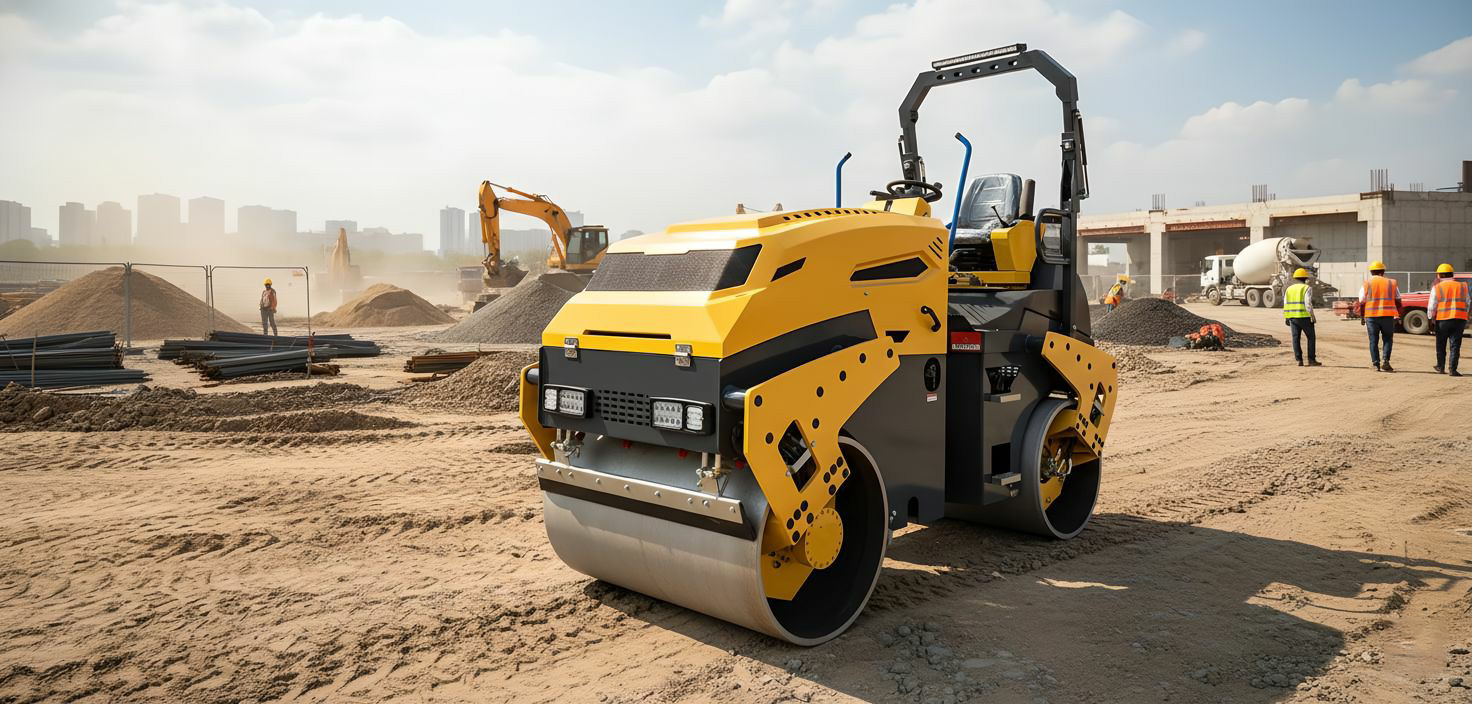

3T Full Hydraulic Double Drum Road Roller
(1)Scope of application: Suitable for compaction and repair of general road base and asphalt surface layers such asurban roads, inter-city and rural roads, water conservation projects, stadiums, and other industrial sites. (2)Hydraulic double amplitude and double vibration; adjust the exciting force for earthwork compaction, with better performance. (3)lt can vibrate with two wheels or one wheel independently; save energy and reduce consumption to protect equipment. (4)Hydraulic parking, hydraulic steering, articulated frame, safe, light, and flexible operation; (5)Electronically controlled pressure spraying system; better spraying effect. (6)Shock-absorbing seat with a wide field of view; convenient maintenance and construction.



| Product Parameters | Value |
|---|---|
| Operating Weight | 3000kg |
| Static Line Load | 130/120N/cm |
| Working Speed | 0-10km/h |
| Climbing Ability | 30° |
| Minimum Mturning Radius | 2850mm |
| Hydraulic Oil Tank Capacity | 70L |
| Fuel Tank Capacity | 60L |
| Water Tank Capacity | 150L |
| Vibration Frequency | 63Hz |
| Amplitude | 0.8mm |
| Exciting Force | 50.6kN |
| Steel Wheel Diameter | 700mm |
| Working Width | 1200mm |
| Engine Model | V25-50C41 |
| Engine Fuel Type | Diesel |
| Engine Rated Power | 36.8kw (50hp) |
| Engine Rated Speed | 2400r/min |
| Wheelbase | 1830mm |
