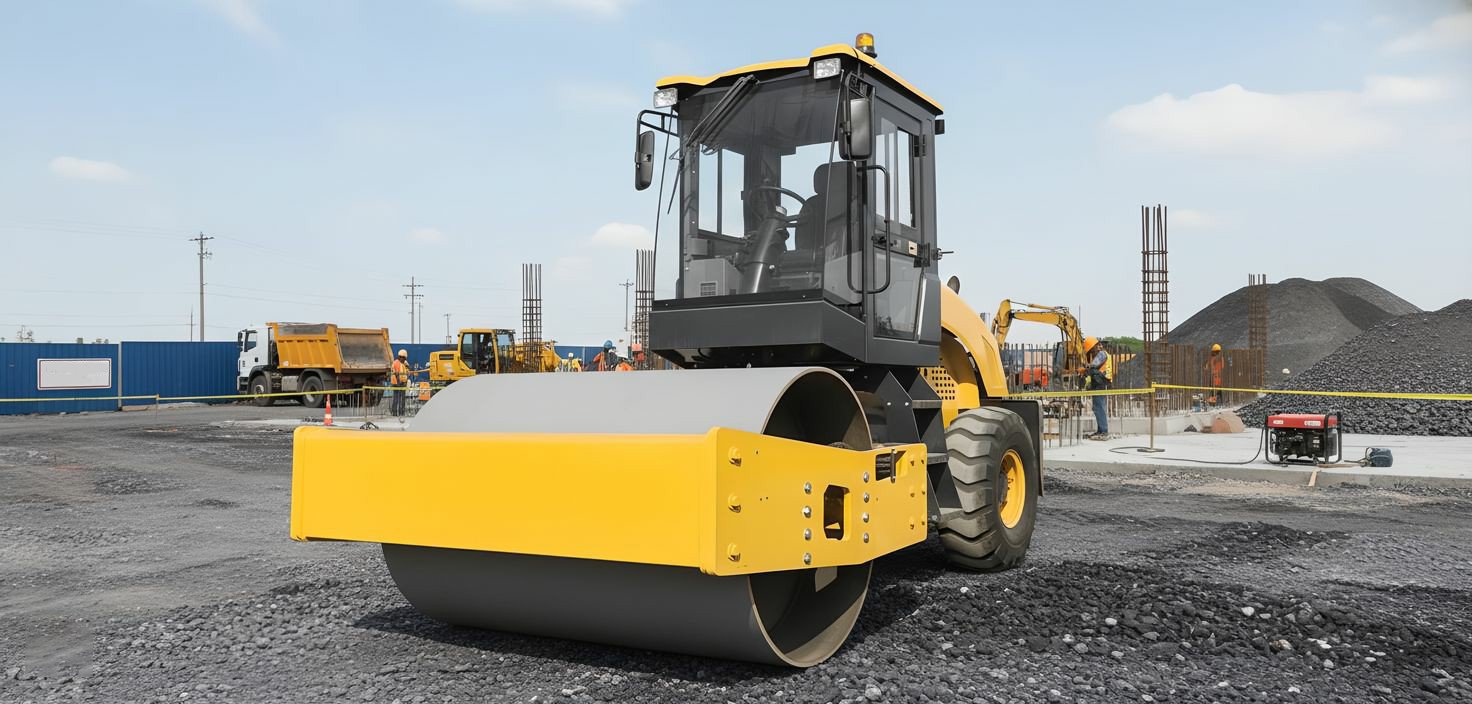

4T Full Hydraulic Single Drum Road Roller
(1)The machine is flexible and convenient, suitable for compacting road earthwork, paving and compacting asphalt concrete, sand and gravel mixture, and cement stabilized soil, as well as trench backfilling and construction engineering back-filling. It is an ideal compaction equipment. (2)Equipped with high-effciency and energy-saving dieselengine, it has high power, strong power, and high efficiency. (3)The braking system adoptsan oil-gas brake, which makes thebrake more reliable and light, and is equipped with a handbrake for more convenient operation. (4)The machine travels with hydraulic vibration and hydraulicsteering, and has reliable performance. (5)Articulated connection, flexible steering, convenient andfast transfer. (6)The whole machine has a compact and reasonable structure, high configuration, strong performance, reliable qualityand high work efficiency. (7)Small investment, fast return, high reliability, simple andconvenient maintenance.



| Product Parameters | Value |
|---|---|
| Operating Weight | 4000kg |
| Static Line Load | 236N/cm |
| Working Speed | 0-18km/h |
| Climbing Ability | 30° |
| Minimum Mturning Radius | 2350mm |
| Hydraulic Oil Tank Capacity | 65L |
| Fuel Tank Capacity | 95L |
| Wheelbase | 2350mm |
| Vibration Frequency | 45Hz |
| Amplitude | 0.5mm |
| Exciting Force | 70kN |
| Steel Wheel Diameter | 1000mm |
| Working Width | 1450mm |
| Engine Model | YN490 |
| Engine Fuel Type | Diesel |
| Engine Rated Power | 36.8kw (50hp) |
| Engine Rated Speed | 2400r/min |
