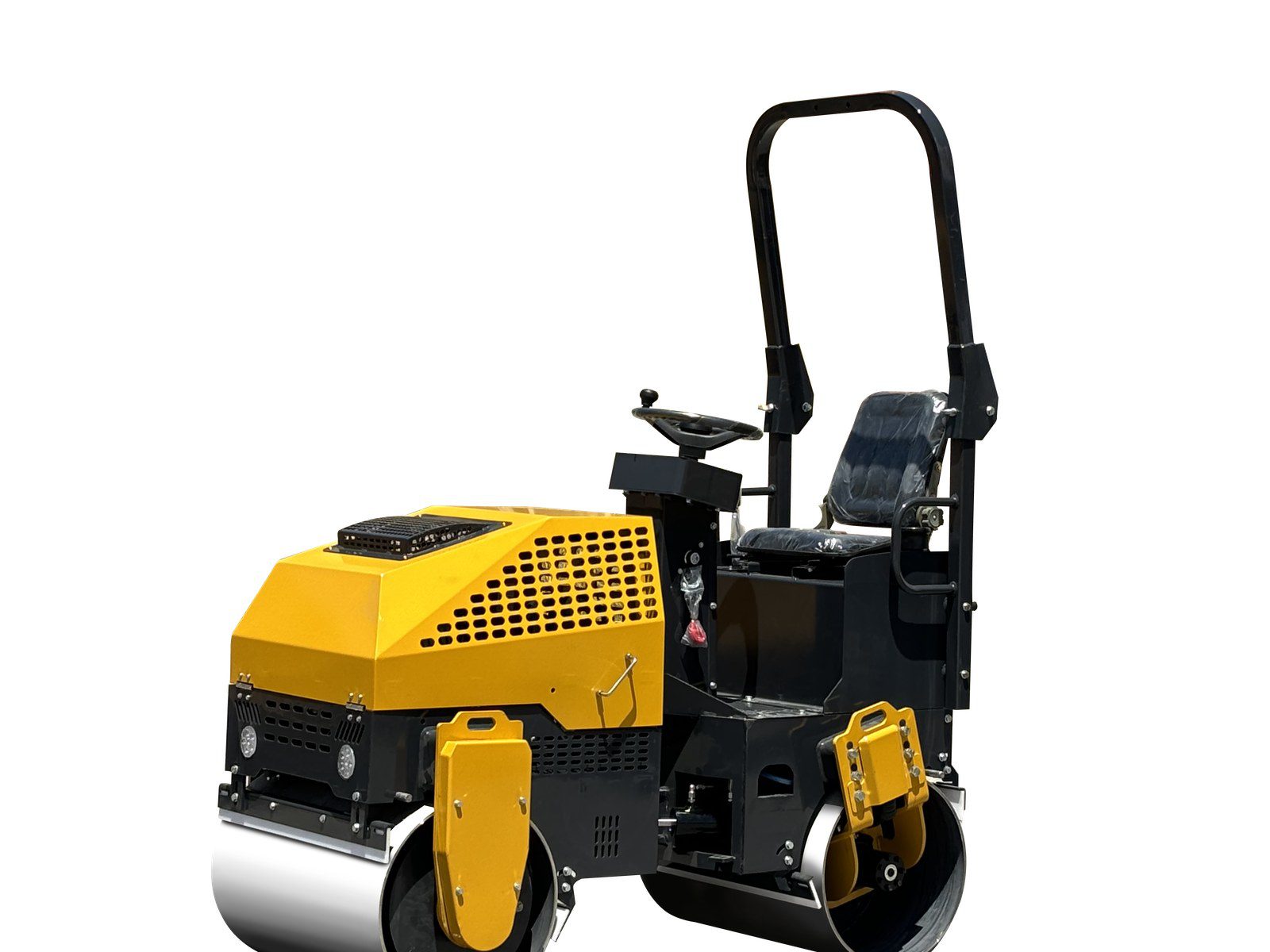

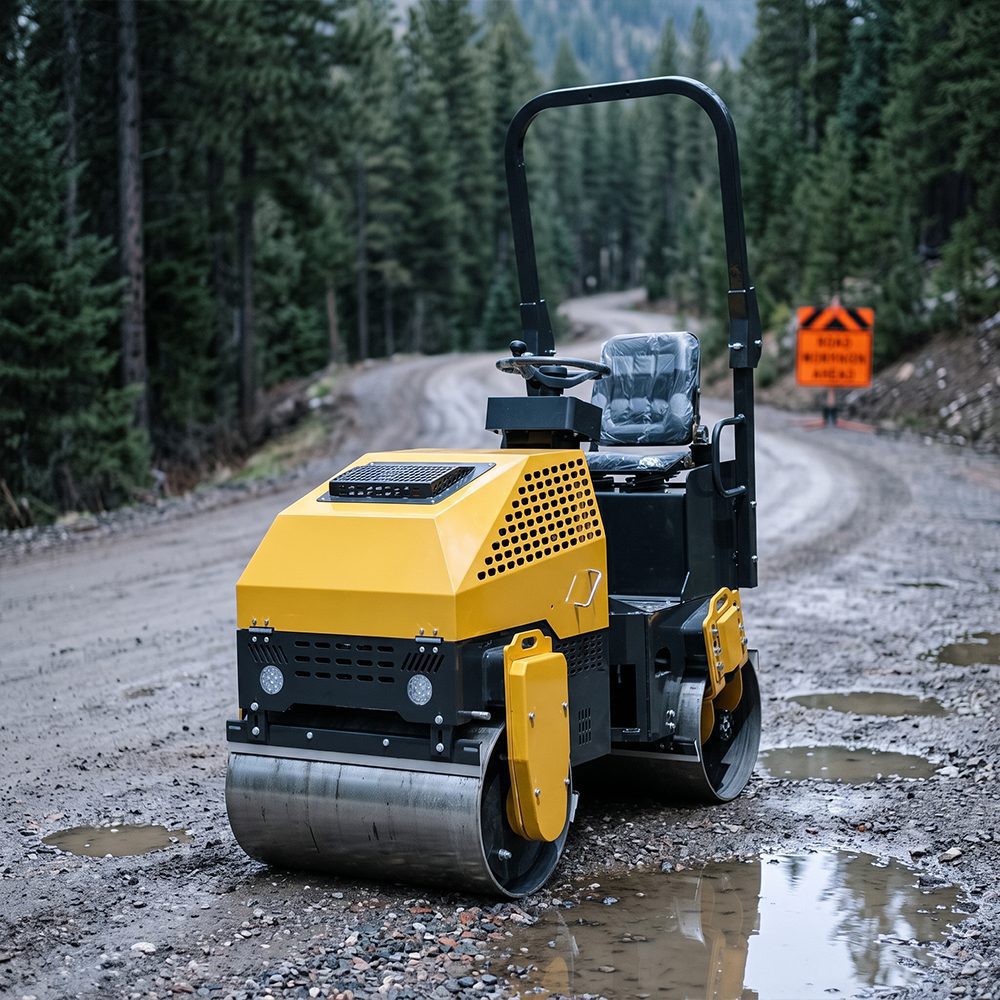

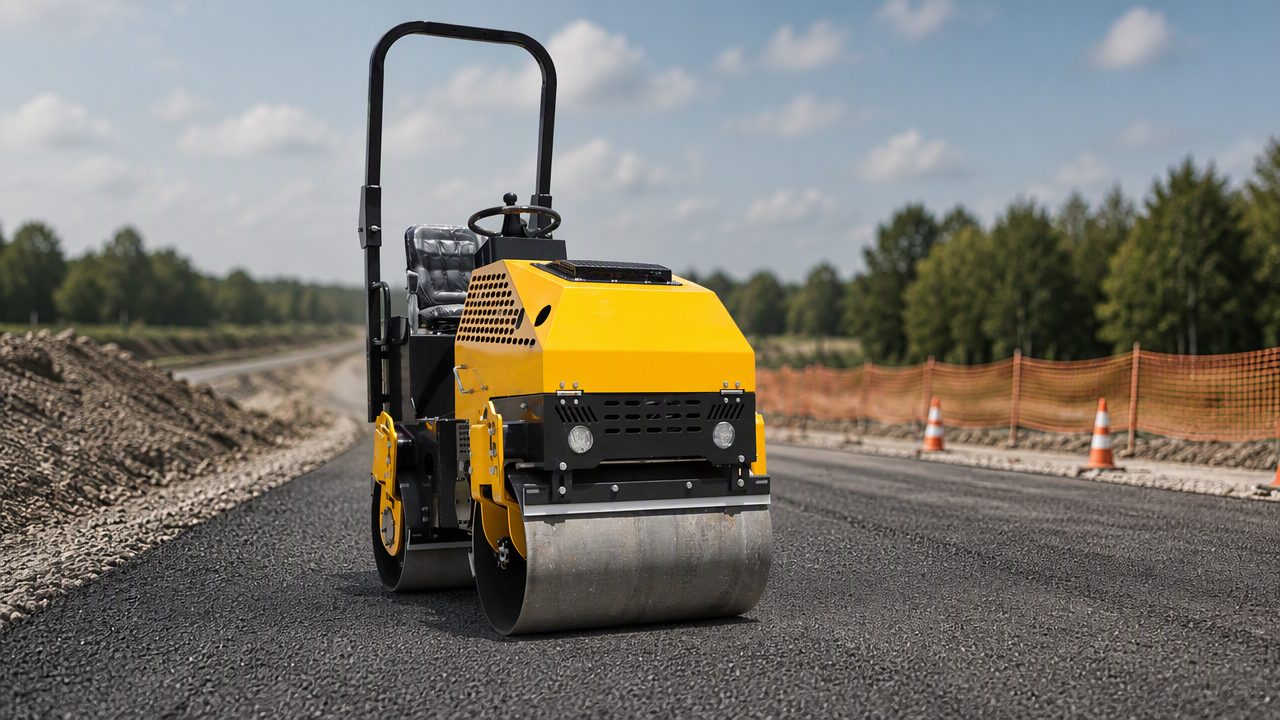

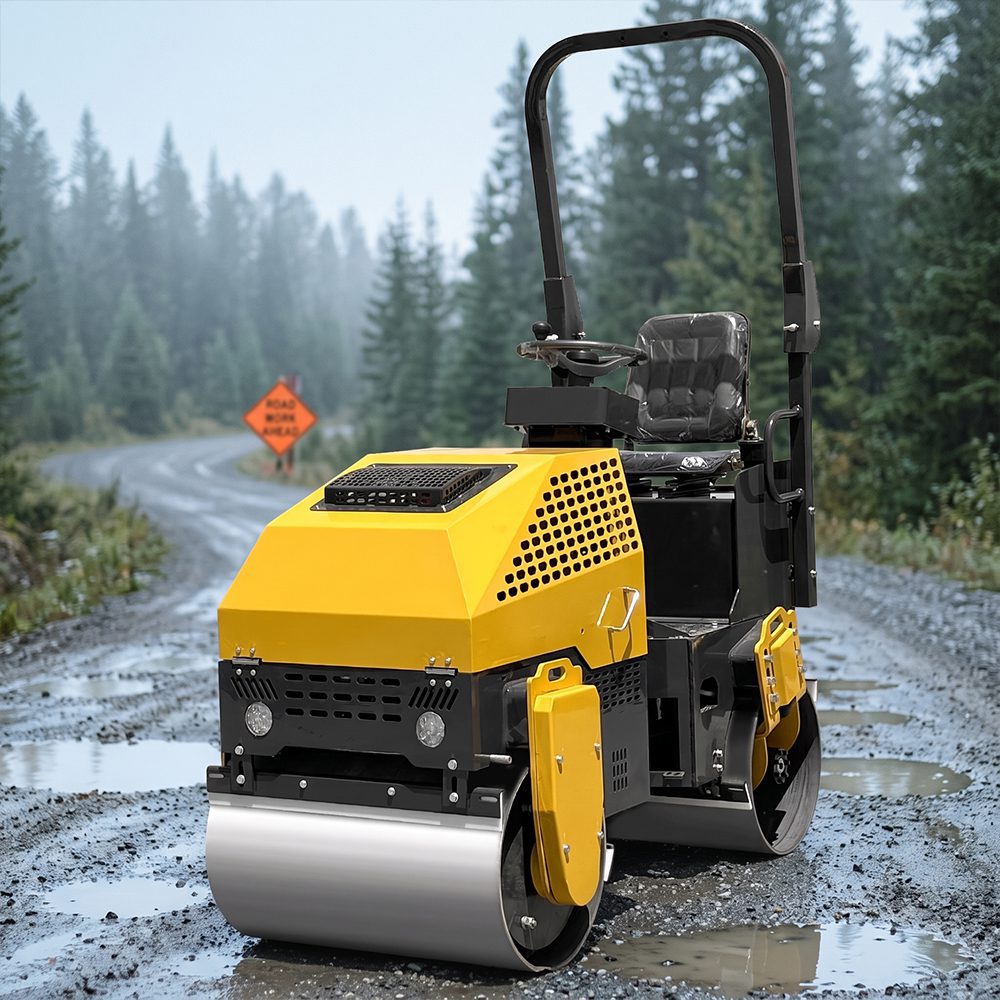

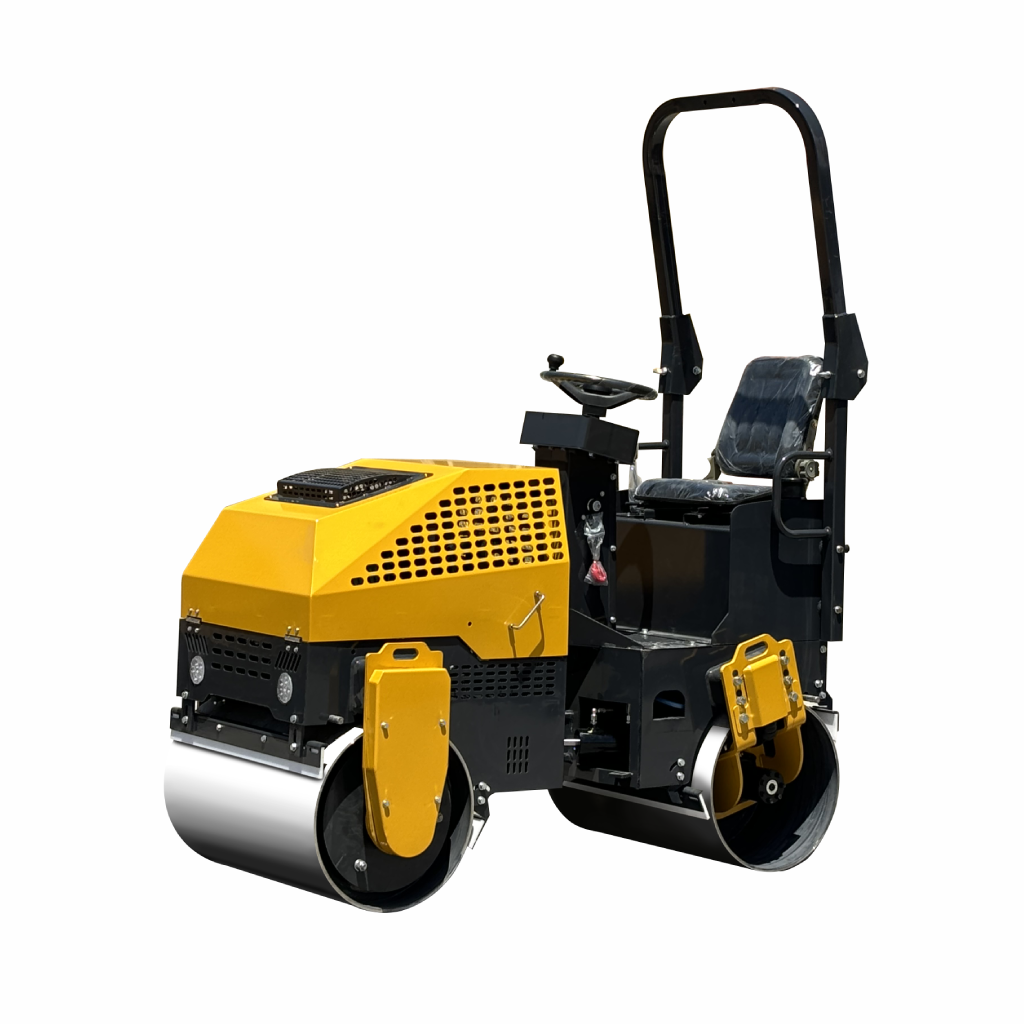

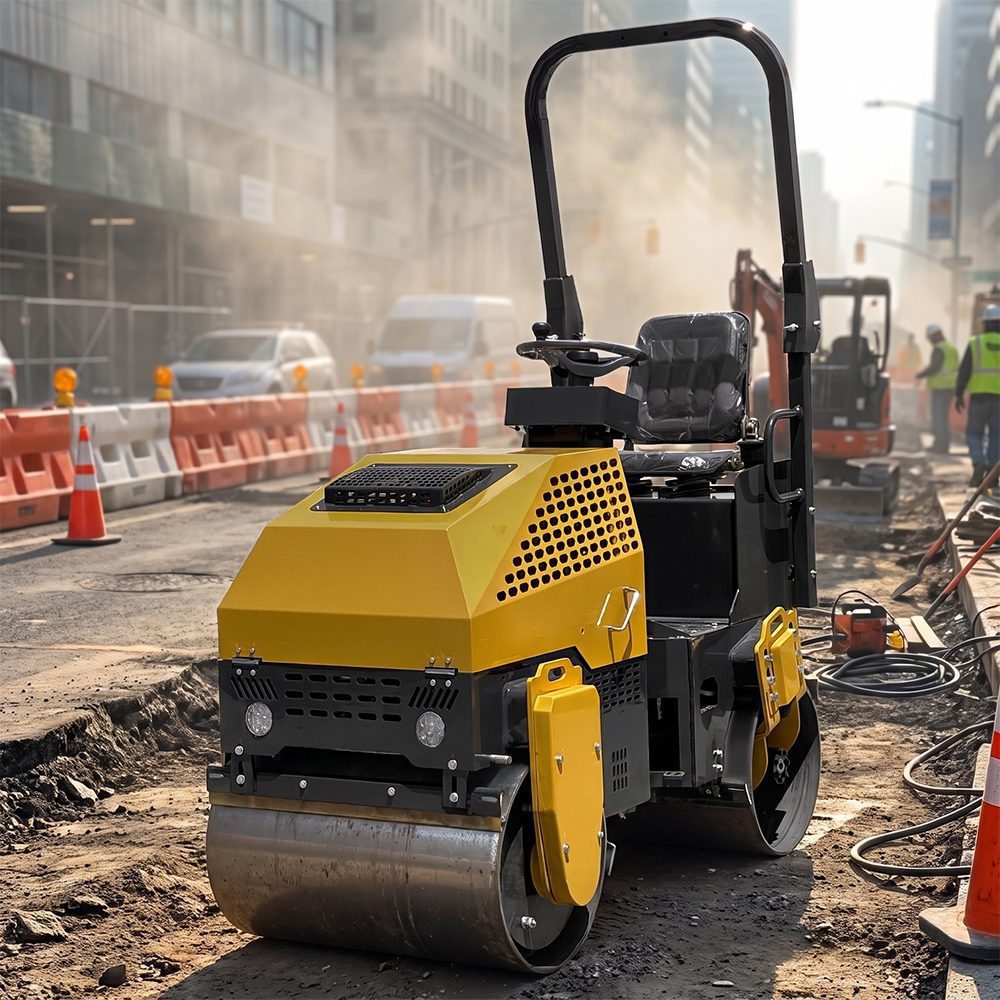

LUXIN LX01JS 1-Ton Mechanical Drive Double Drum Vibratory Roller
Premium 1-ton (1,000 kg) hydraulic vibratory roller driven by a 6.3 kW (8.6 hp) KD186FB4 diesel engine. Features a large-displacement variable piston pump, dual travel motors, stepless speed control (0–5 km/h), front drum vibration (16 kN exciting force @ 50 Hz), slope driving brake safety system, high-pressure water spraying system with quick-change nozzles, 2,200 mm turning radius, and a 61.5L water tank. Designed for narrow trench backfilling, sidewalk construction, and asphalt maintenance.
Table of Contents
This 1-ton vibratory roller is engineered for high-efficiency compaction in restricted spaces. Its compact design and small turning radius make it particularly suitable for trench backfilling and narrow-area operations.
Key Features
-
Compact Maneuverability: Small operating radius allows effective work in confined areas.
-
Advanced Water Spraying System: High-pressure system ensures uniform coverage; supports intermittent operation to conserve water; nozzles are designed for quick replacement.
-
User-Friendly Operation: Stepless speed control for both forward and reverse movement; ergonomic, streamlined handle design enhances operator comfort and convenience.
-
Safety Assurance: Equipped with a driving brake function to prevent the machine from sliding on slopes.
-
Reliable Power Source: Standard engine is a well-known domestic brand with national warranty coverage; international brand options are also available upon request.
-
Superior Hydraulic System: Large-displacement variable piston pump enables stepless travel; dual motors independently drive travel and vibration functions, delivering stable speed performance with one-touch operation.

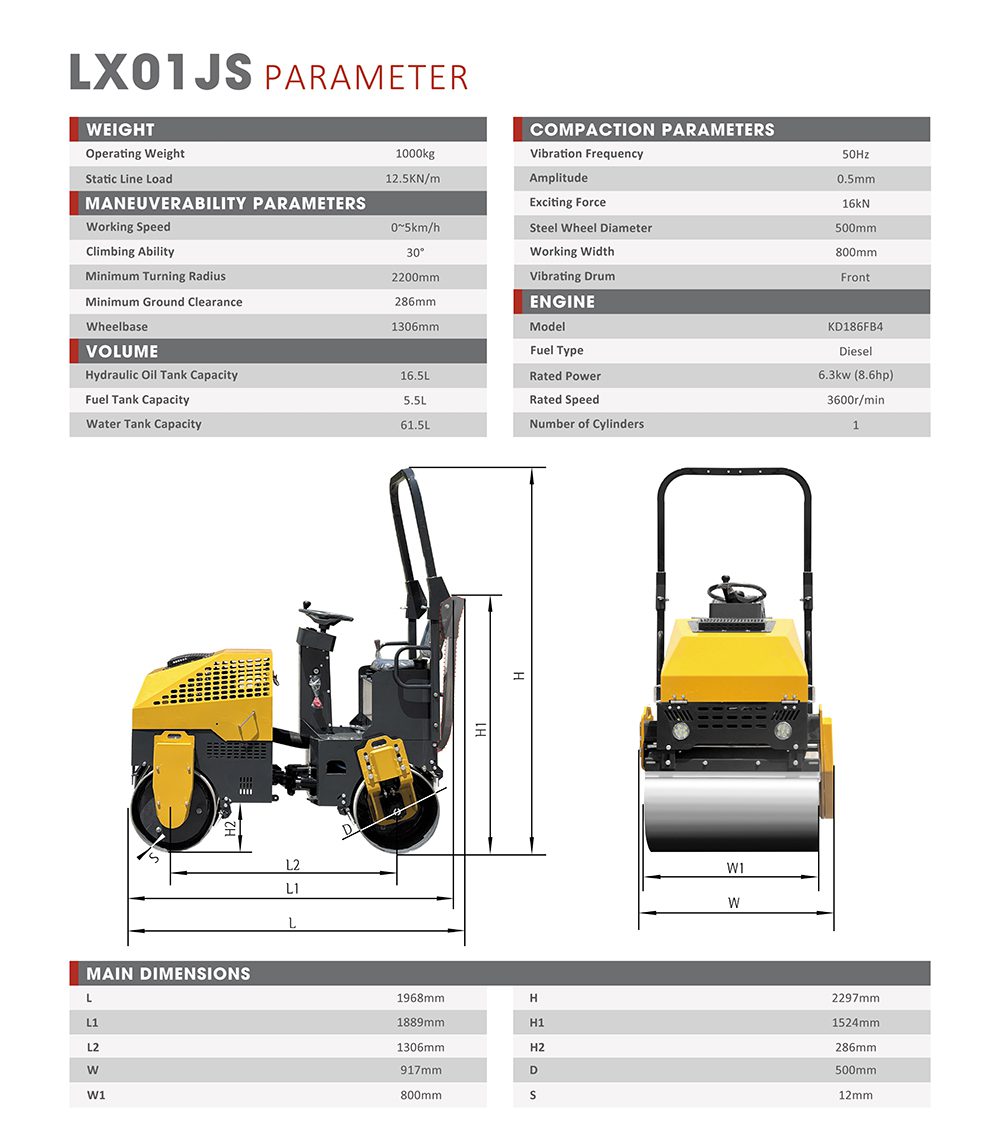

Technical Specifications
| Category | Parameter |
|---|---|
| Weight | |
| Operating Weight | 1000 kg |
| Static Line Load | 12.5 KN/m |
| Maneuverability | |
| Working Speed | 0 – 5 km/h |
| Climbing Ability | 30° |
| Minimum Turning Radius | 2200 mm |
| Minimum Ground Clearance | 286 mm |
| Wheelbase | 1306 mm |
| Capacities | |
| Hydraulic Oil Tank | 16.5 L |
| Fuel Tank | 5.5 L |
| Water Tank | 61.5 L |
| Compaction System | |
| Vibration Frequency | 50 Hz |
| Amplitude | 0.5 mm |
| Exciting Force | 16 kN |
| Steel Drum Diameter | 500 mm |
| Working Width | 800 mm |
| Vibrating Drum Position | Front |
| Engine | |
| Model | KD186FB4 |
| Fuel Type | Diesel |
| Rated Power | 6.3 kW (8.6 hp) |
| Rated Speed | 3600 r/min |
| Number of Cylinders | 1 |
Main Dimensions
| Dimension | Measurement |
|---|---|
| Overall Length | 1968 mm |
| Overall Height | 2297 mm |
| Overall Width | 917 mm |
| Working Width | 800 mm |
| Drum Diameter | 500 mm |
| Ground Clearance | 286 mm |
| Wheelbase | 1306 mm |
Applications
Ideal for asphalt patching, sidewalks, trenches, municipal maintenance and small construction sites.
Product Support
Contact LUXIN for the current technical data sheet, configuration options and export support.
