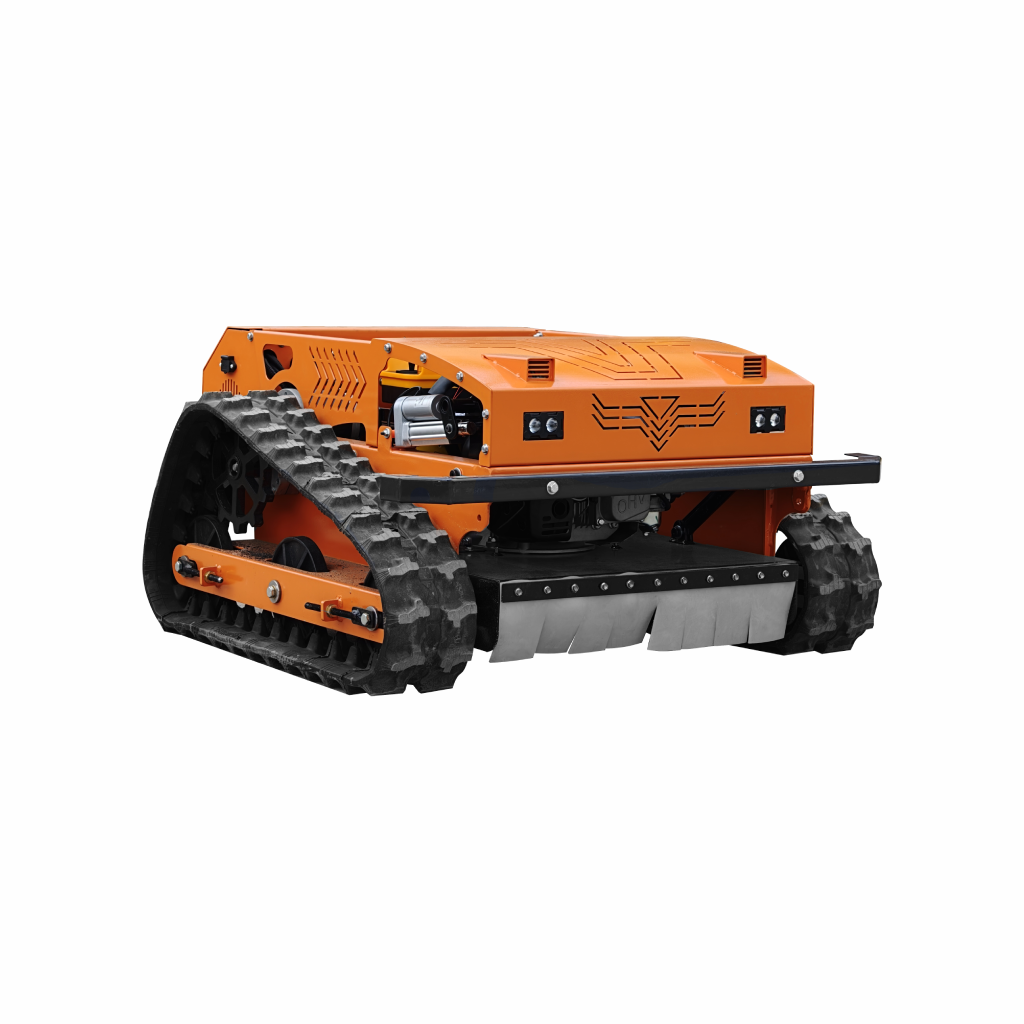

LX550D Remote Controlled Tracked Lawn Mower
Agile 525mm tracked remote-controlled lawn mower equipped with a Loncin 224cc engine and remote electric height adjustment (25–130mm). Designed for high-traction maneuvering on complex 40° slopes, riverbanks, forestry under-canopies, and public parks.
Table of Contents
The LX550D Remote Controlled Tracked Lawn Mower is a reliable, high-efficiency grass cutting solution designed for challenging terrains and sloped environments. Powered by a dependable Loncin 224cc gasoline engine (4.5 kW) and a dual electric drive motor system (600W × 2, DC 24V), the LX550D easily navigates complex slopes up to 40°, orchards, embankments, and public green belts.
Featuring a 525 mm cutting width and remote-controlled electric height adjustment (25–130 mm), operators can control mowing, movement, and height adjustments safely from a distance of 200 meters or more. It is an ideal choice for large-scale mowing in mountainous regions, under-canopy forest zones, riverbanks, and farmlands.
Key Features
- Powerful Branded Engine: Powered by a Loncin 224cc engine delivering 4.5 kW @ 3600 rpm for strong and consistent output on steep slopes and large areas.
- Electric Start System: Keyed electric starting eliminates repetitive manual pull-starts, making operation easier and boosting daily efficiency.
- Long-Range Remote Control: Offers a remote control range of 200m or more (up to 2200m max signal distance), allowing operators to safely manage all machine movements from a safe distance.
- Remote Electric Height Adjustment: Easily adjust cutting height from 25 mm to 130 mm directly via remote control for different vegetation requirements.
- High Slope Capability (Up to 40°): Durable rubber track undercarriage ($150\times60\times32$) ensures high traction and stability on mountain slopes, riverbanks, and orchards.
- High Mowing Efficiency: 525mm cutting width with manganese steel straight blade achieves a theoretical work efficiency of 1,800–2,200 m²/h while minimizing repetitive travel time.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LX550D |
| Engine Brand / Displacement | Loncin 224cc (Gasoline) |
| Net Power | 4.5 kW @ 3600 rpm |
| Starting Method | Electric Start |
| Drive System | Brushed Motors (600W × 2), DC 24V |
| Track Specifications | 150 × 60 × 32 Rubber Tracks |
| Cutting Method | Straight Manganese Steel Blade |
| Cutting Width | 525 mm |
| Cutting Height | 25–130 mm (Remote-Controlled Electric Lift) |
| Theoretical Work Efficiency | 1,800 – 2,200 m²/h |
| Travel Speed | 0–4 km/h (Stepless Speed Regulation) |
| Max. Climbing Angle | Up to 40° |
| Remote Control Range | 200m+ (2200m Max Signal Distance) |
| Machine Dimensions (L × W × H) | 900 × 930 × 538 mm |
| Package Dimensions (L × W × H) | 1040 × 980 × 710 mm |
| Net Weight | 147 kg |
Applications & Applicable Terrains
- Orchards & Agricultural Farms: Compact tracked structure easily moves under low canopy trees without causing soil compaction or crop damage.
- Mountainous & Sloped Terrains: Mows steep inclines up to 40° safely via long-range remote operation.
- Riverbanks & Wastelands: Efficiently clears tall grass, brush, and weeds on reservoir embankments and uncultivated fields.
- Forestry & Under-Canopy Zones: Clears overgrown vegetation in forestry areas and under trees.
- Public Parks & Municipal Green Belts: Rapid, large-scale lawn maintenance for public landscapes and commercial areas.
Dimensions
Overall Machine Size: 900 mm (L) × 930 mm (W) × 538 mm (H)
Package Size: 1040 mm (L) × 980 mm (W) × 710 mm (H)
