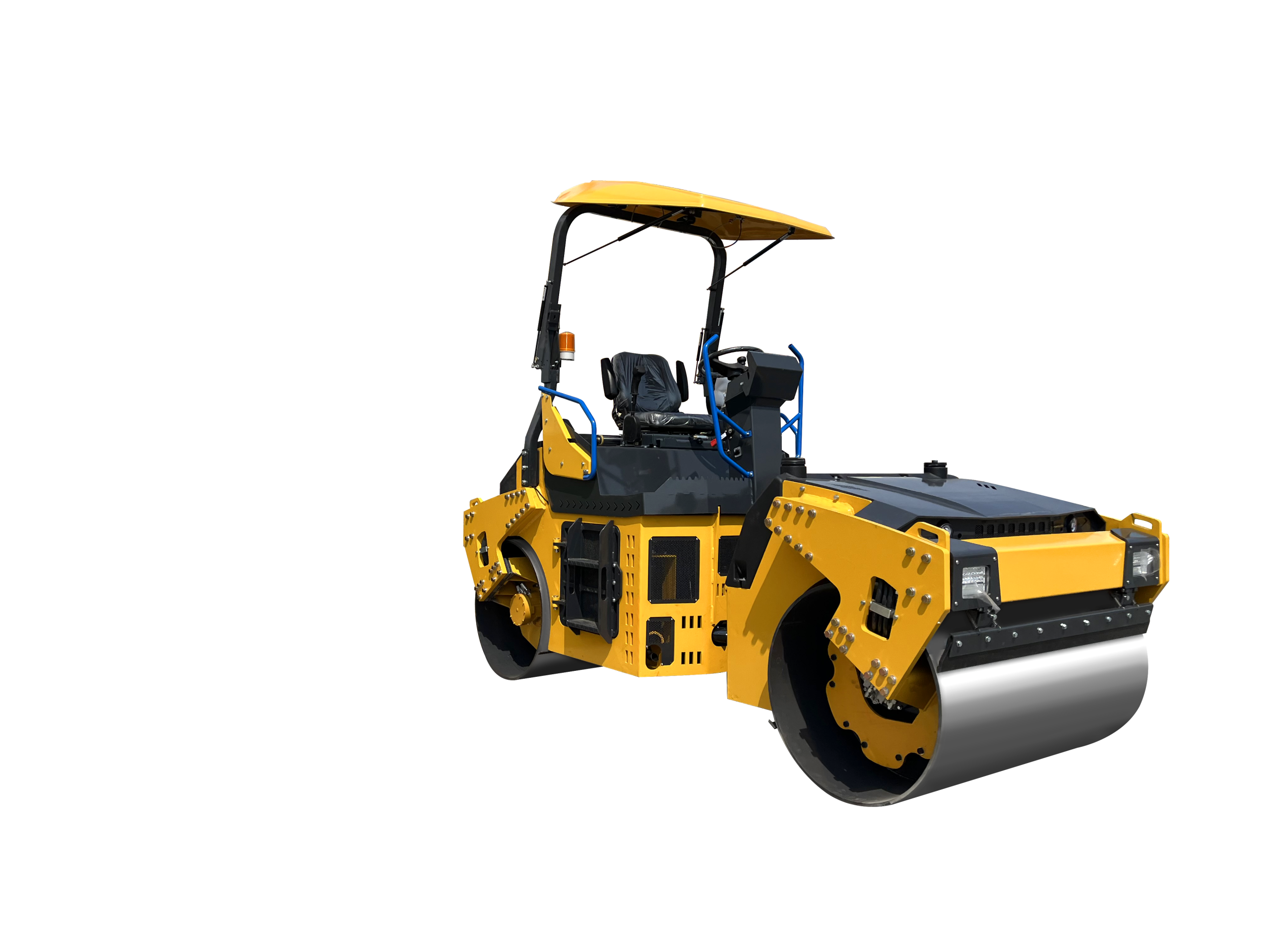

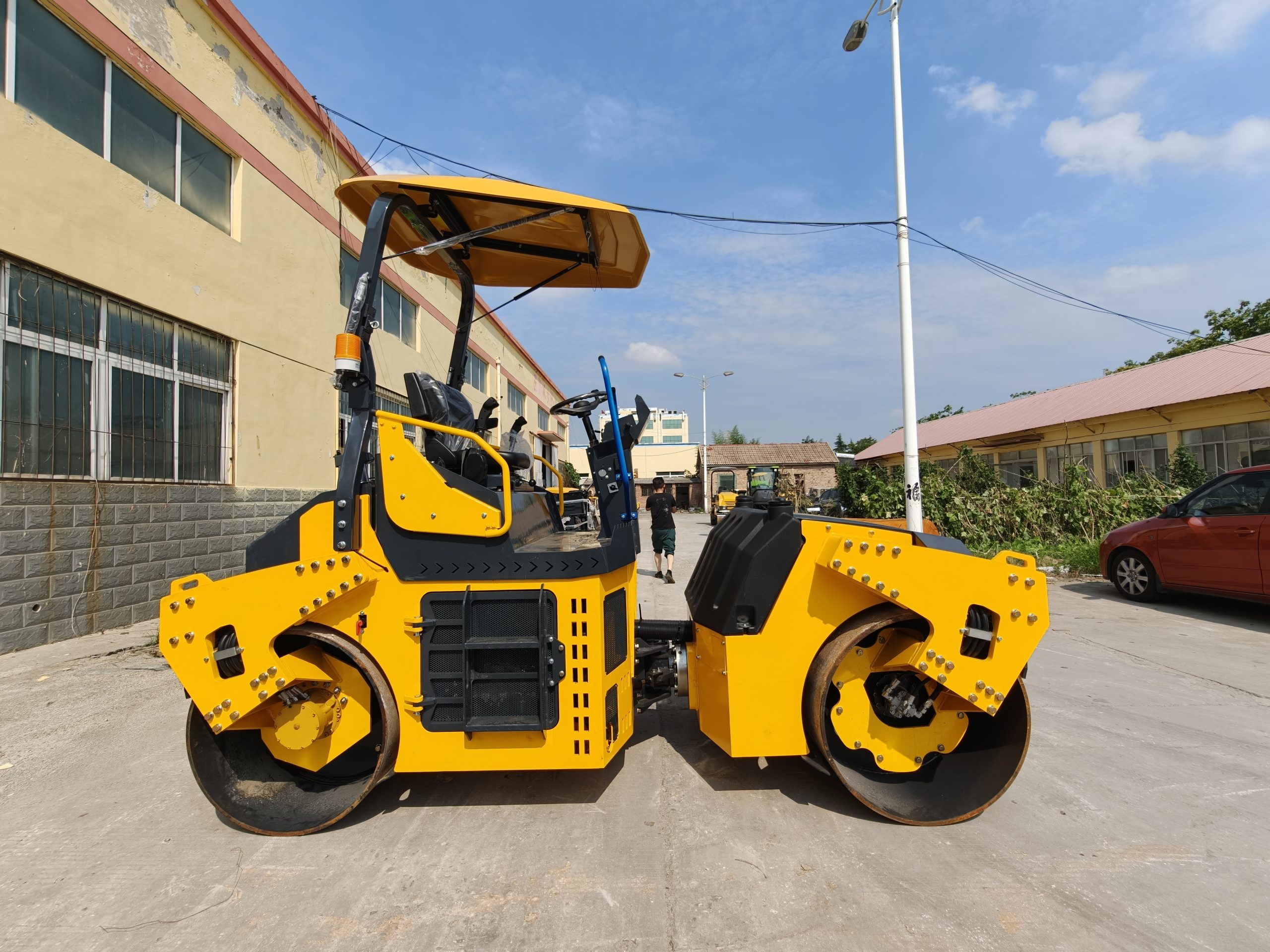

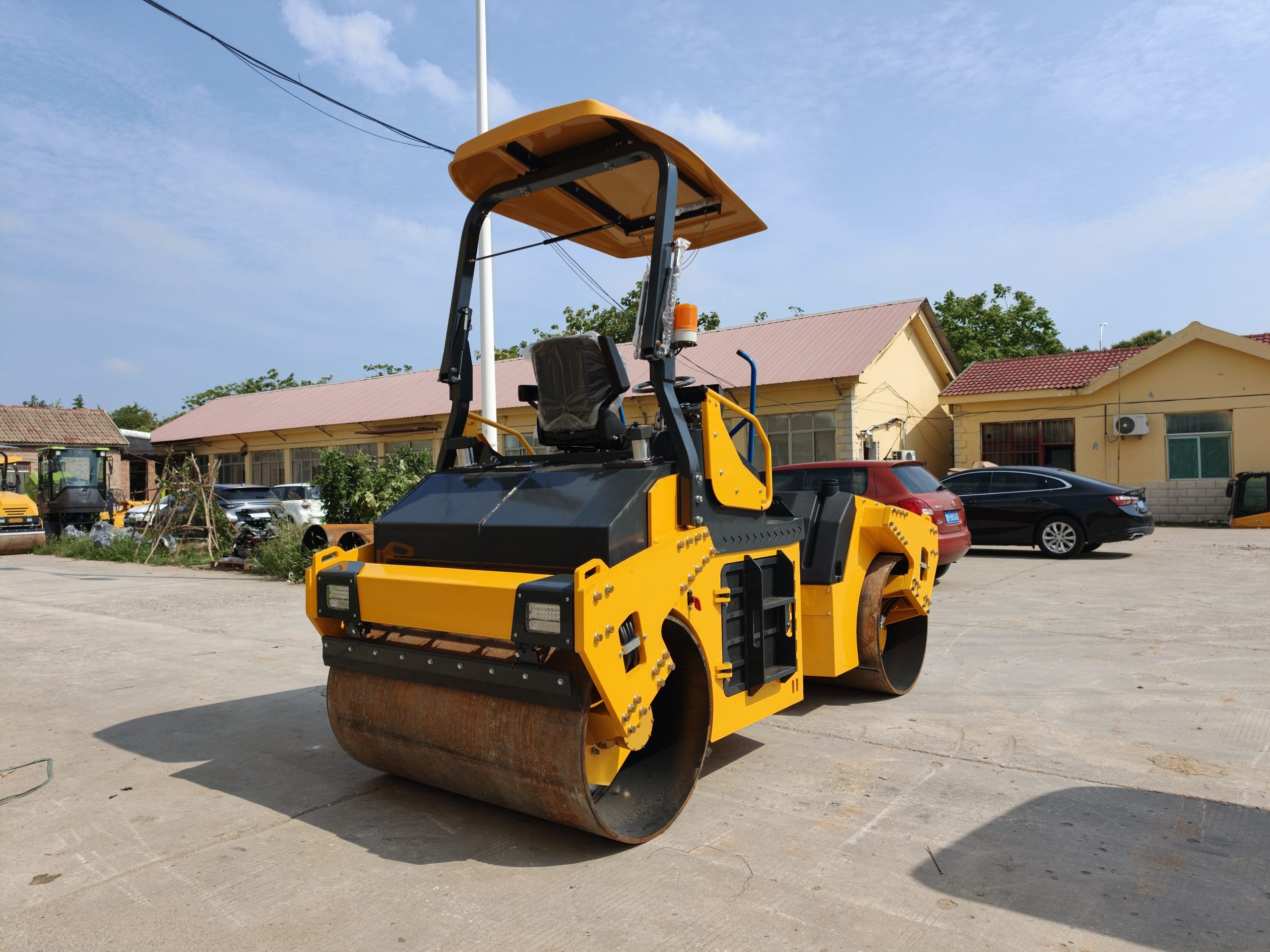

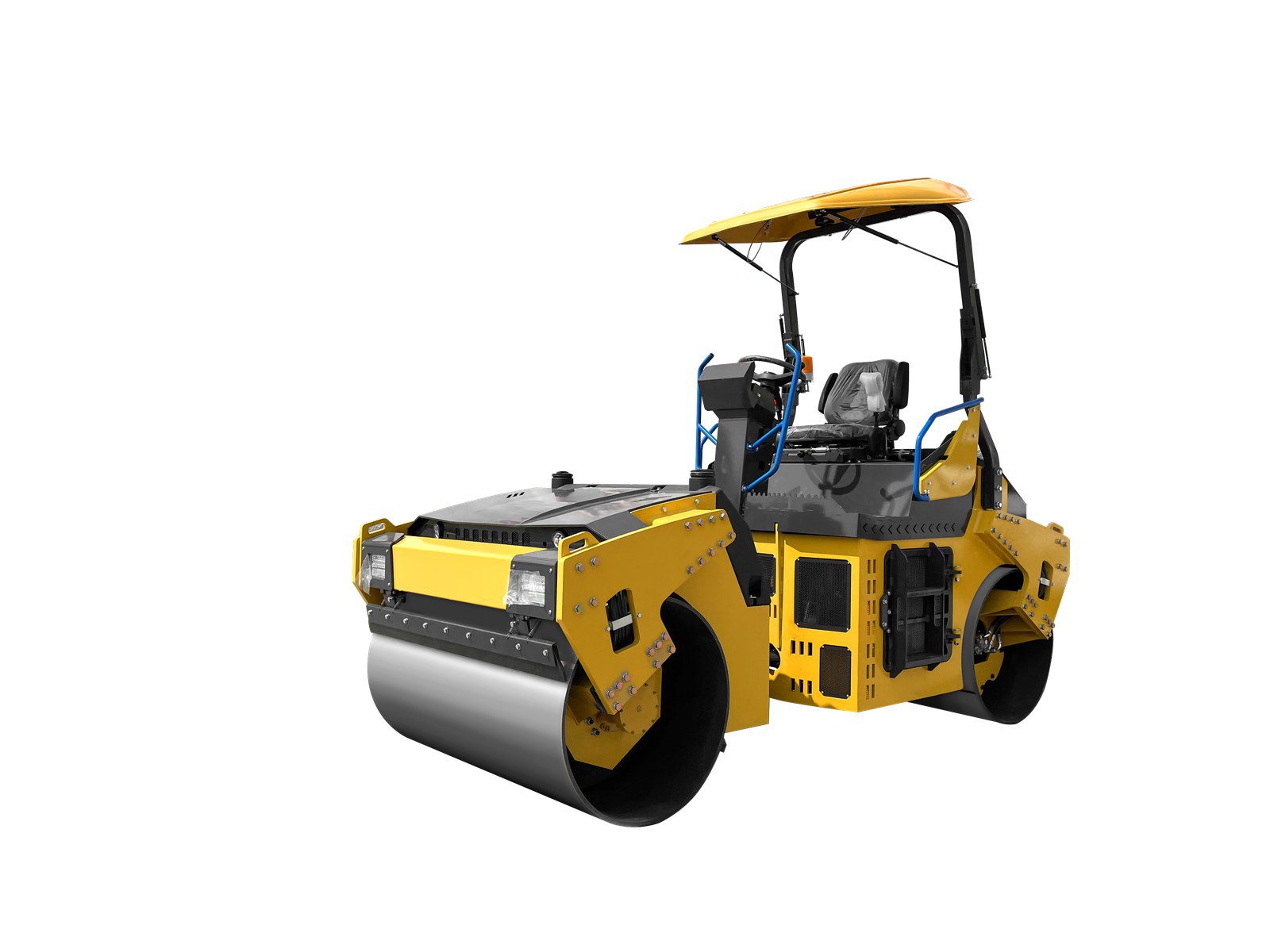

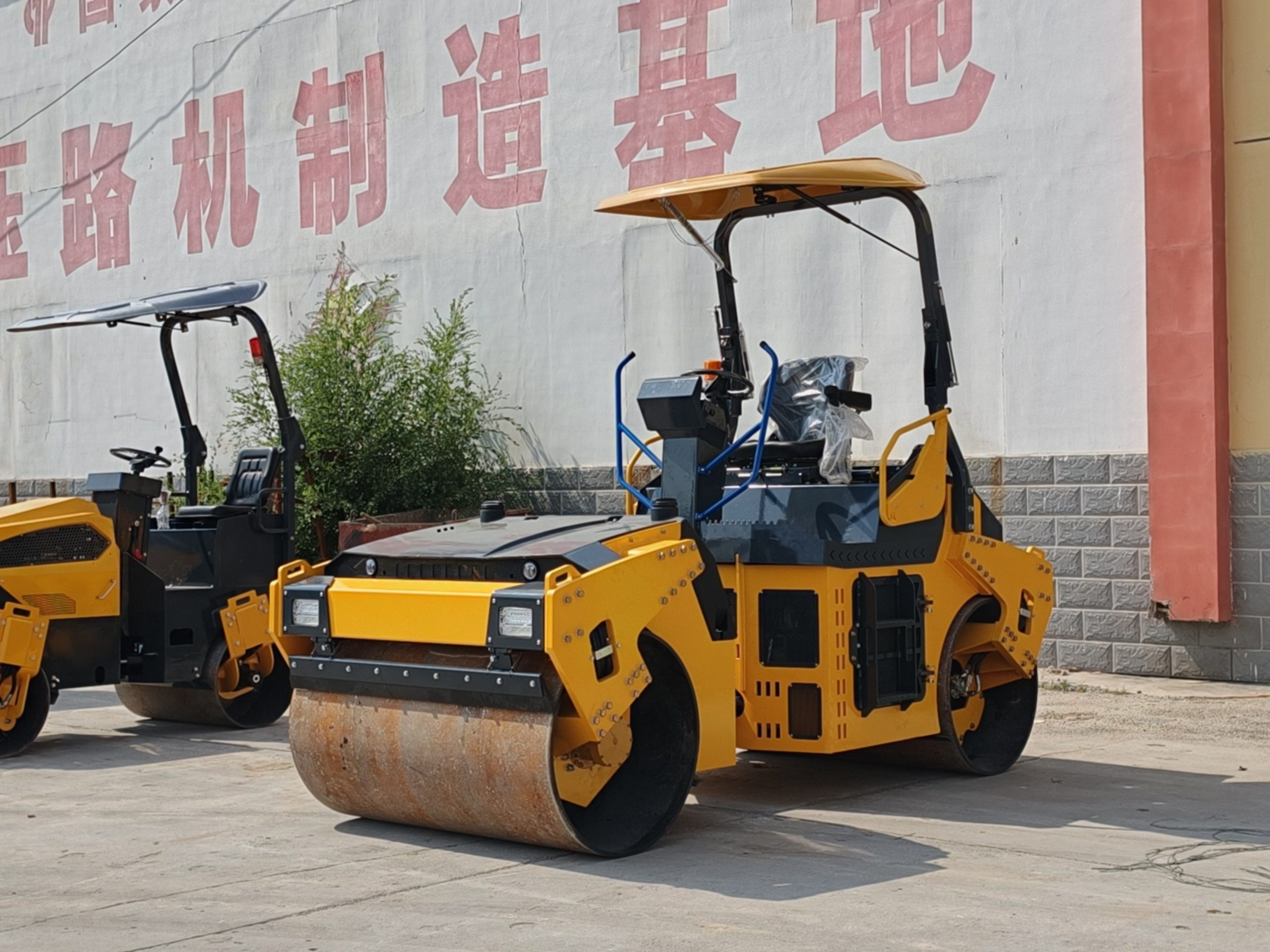

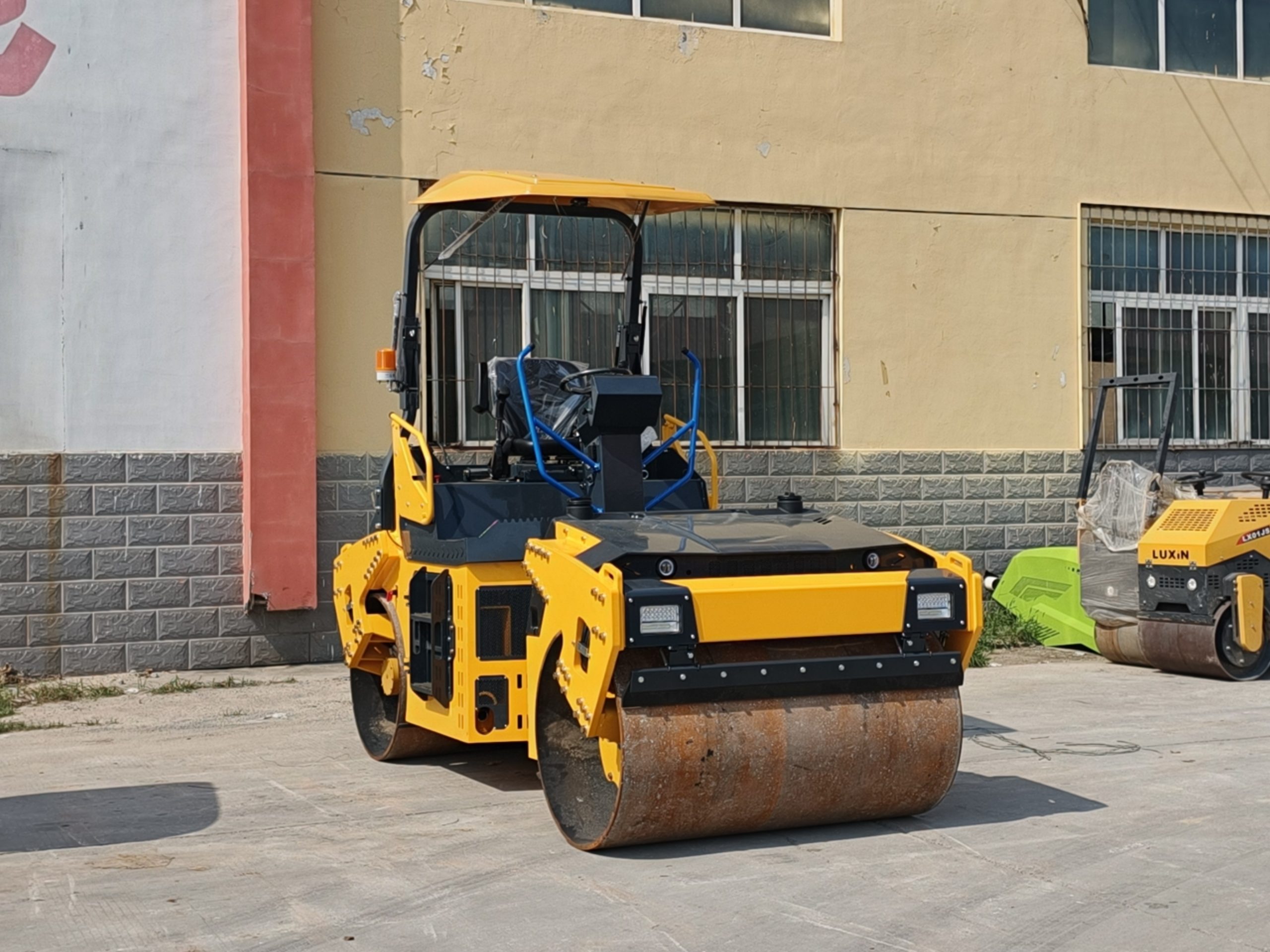

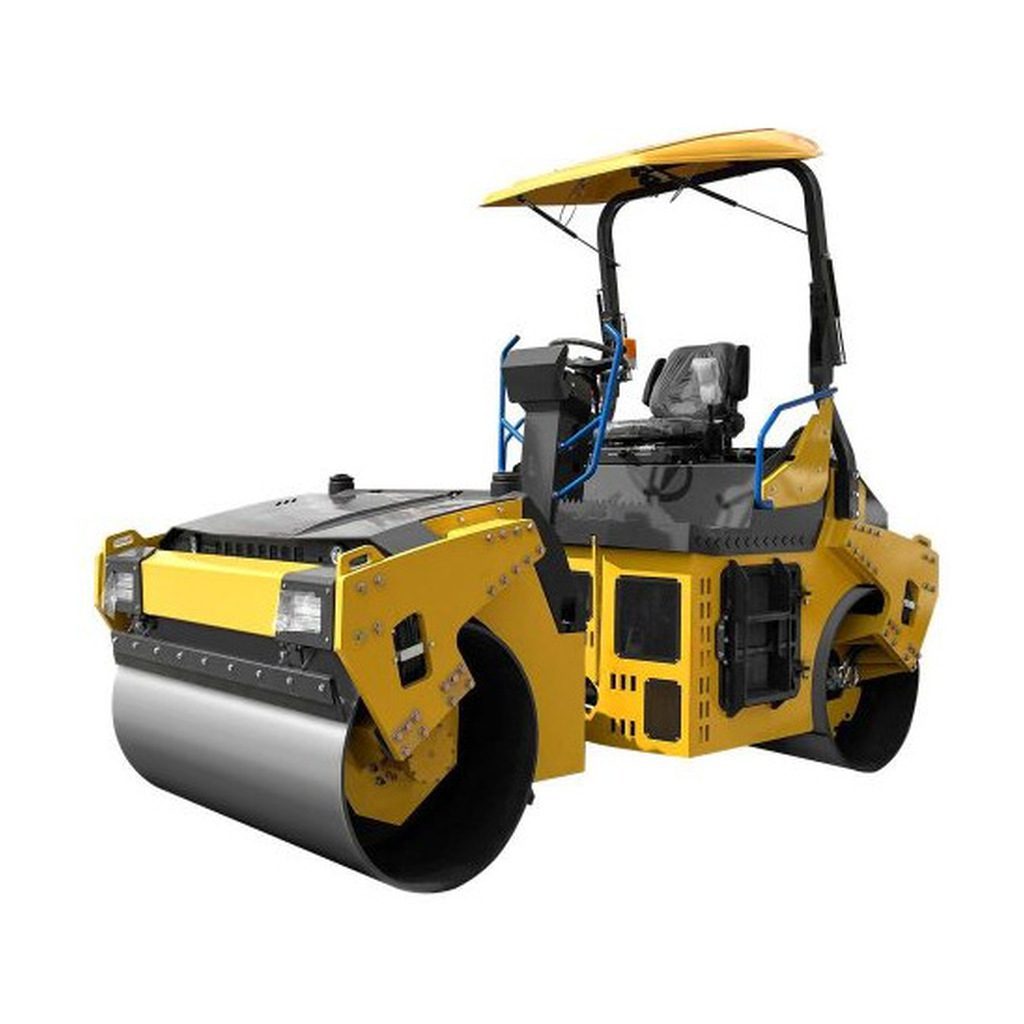

LUXIN 5-Ton Fully Hydraulic Double Drum Vibratory Roller
High-efficiency 5-ton (5,000 kg) fully hydraulic double drum vibratory roller powered by a YN490 36.8 kW (50 hp) 4-cylinder diesel engine. Features dual-drum vibration, a 1,400mm working width, 80 kN exciting force at 65 Hz vibration frequency, a large 200 L water tank, and a protective operator canopy. Perfect for urban road construction, asphalt paving, parking lots, and municipal maintenance.
Table of Contents
The LUXIN 5-Ton Fully Hydraulic Double Drum Vibratory Roller (Operating Weight: 5,000 kg) is a high-performance compaction machine specifically designed for asphalt paving, urban road construction, road rehabilitation, and parking lot installation. Driven by a powerful YN490 4-cylinder diesel engine (36.8 kW / 50 hp @ 2,400 rpm), this roller offers smooth hydrostatic control, exceptional maneuverability, and reliable compaction density across both base layers and asphalt wearing courses.
Featuring dual-drum vibration on both front and rear steel drums (1,400 mm working width), the machine produces a powerful 80 kN exciting force at a high 65 Hz vibration frequency. Equipped with a large-capacity 200 L water tank for continuous drum wetting, an ergonomic operator platform with protective canopy, and a tight 3,000 mm turning radius, the LUXIN 5T roller delivers outstanding productivity on municipal and commercial paving projects.
Key Features
- Dual-Drum Vibration System: Both front and rear 800 mm steel drums feature active vibration to ensure maximum surface smoothness and uniform compaction density.
- High Exciting Force (80 kN @ 65 Hz): High-frequency vibration rapidly consolidates asphalt mixes, aggregate bases, and soil lifts in fewer passes.
- Heavy-Duty Diesel Engine: YN490 4-cylinder diesel engine delivers 36.8 kW (50 hp) @ 2,400 rpm for reliable, fuel-efficient performance.
- Large 200 L Water Tank System: Pressurized water spraying prevents asphalt sticking during high-temperature paving operations, minimizing refill downtime.
- Fully Hydraulic Drive (0–10 km/h): Smooth, infinitely variable speed control for precise operation next to curbs, structures, and utility covers.
- Compact Turning Radius (3,000 mm): Articulated steering design ensures easy operation on narrow urban streets and confined parking lots.
- Ergonomic Canopy Platform: Sun/rain protection canopy combined with clear 360° sightlines for operator safety and comfort.
Recommended Applications
- Asphalt Paving & Wearing Course Compaction: Highway resurfacing, city street repaving, and lane repairs.
- Urban & Municipal Road Construction: Trench backfill smoothing, subgrade compaction, and road widening.
- Parking Lots & Commercial Plazas: Large-surface asphalt rolling for shopping centers, logistics parks, and industrial yards.
- Road Rehabilitation & Patching: Pothole repairs, asphalt overlaying, and utility trench compaction.
- Industrial Yards & Foundations: Base layer compaction for sports fields, outdoor storage areas, and building aprons.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Fully Hydraulic Double Drum Vibratory Roller |
| Operating Weight | 5,000 kg |
| Engine Model & Power | YN490 Diesel, 4-Cylinder, 36.8 kW / 50 hp @ 2,400 rpm |
| Exciting Force | 80 kN |
| Vibration Frequency | 65 Hz |
| Nominal Amplitude | 0.5 mm |
| Working / Drum Width | 1,400 mm |
| Drum Diameter | 800 mm |
| Vibrating Drums | Front + Rear Steel Drums |
| Static Line Load | 125 / 85 N/cm |
| Working / Travel Speed | 0–10 km/h (Infinitely Variable) |
| Gradeability | 30° |
| Min. Turning Radius | 3,000 mm |
| Water Tank Capacity | 200 L |
| Fuel Tank / Hydraulic Oil Tank | 94 L / 112 L |
| Operator Environment | Protective Operator Canopy |
Product Support
Contact LUXIN for the current technical data sheet, configuration options, pricing, and global export support.
