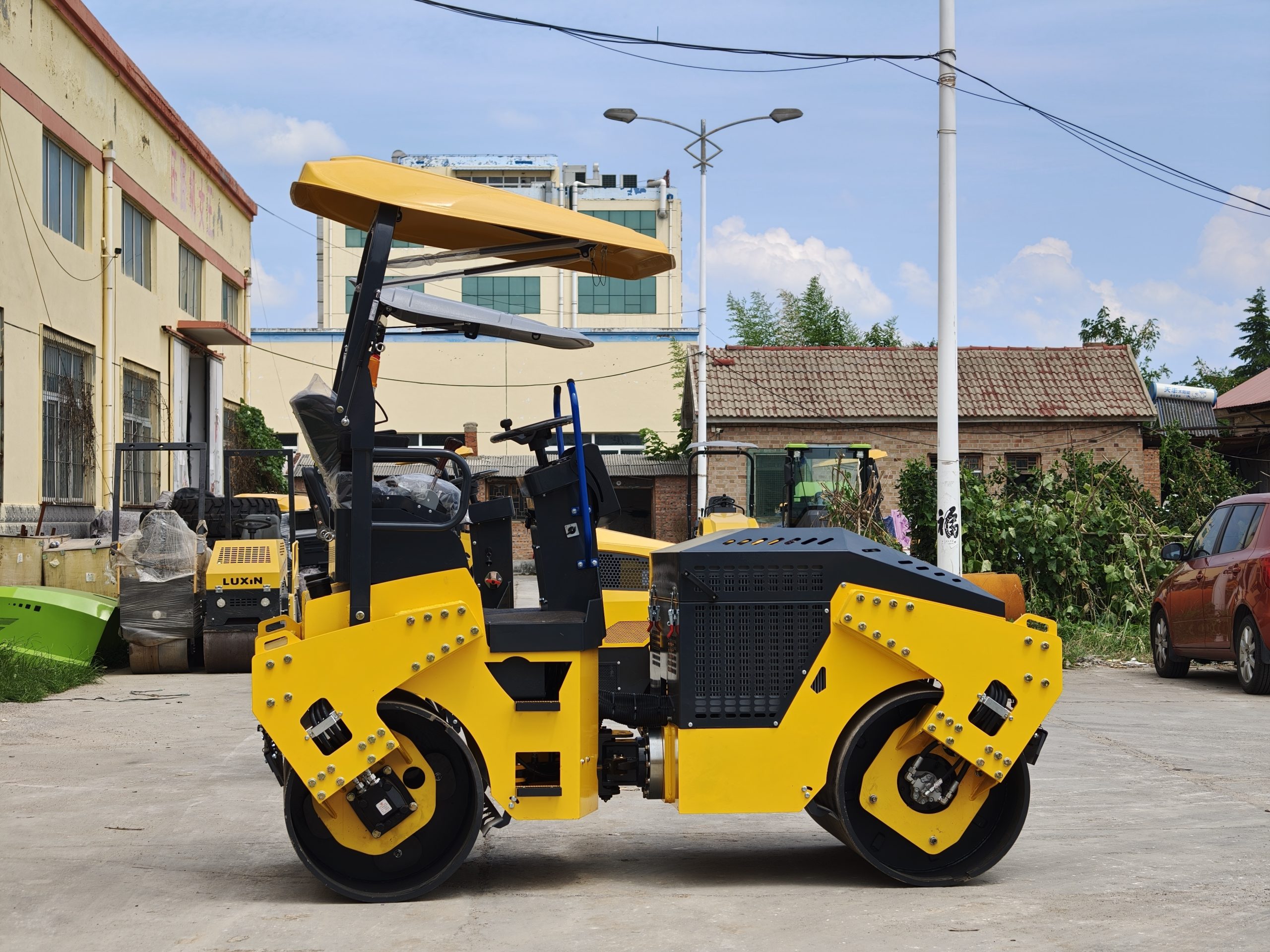

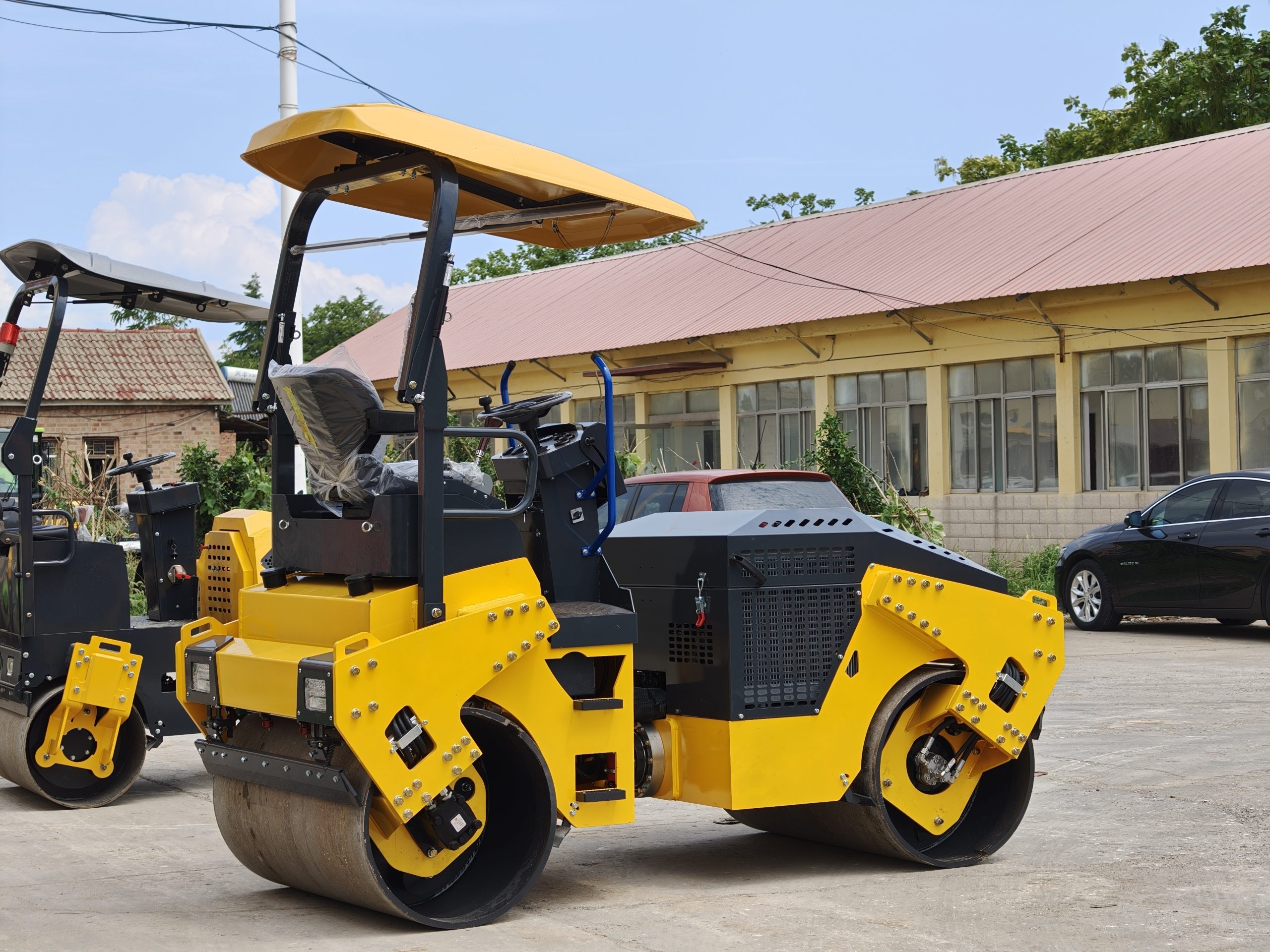

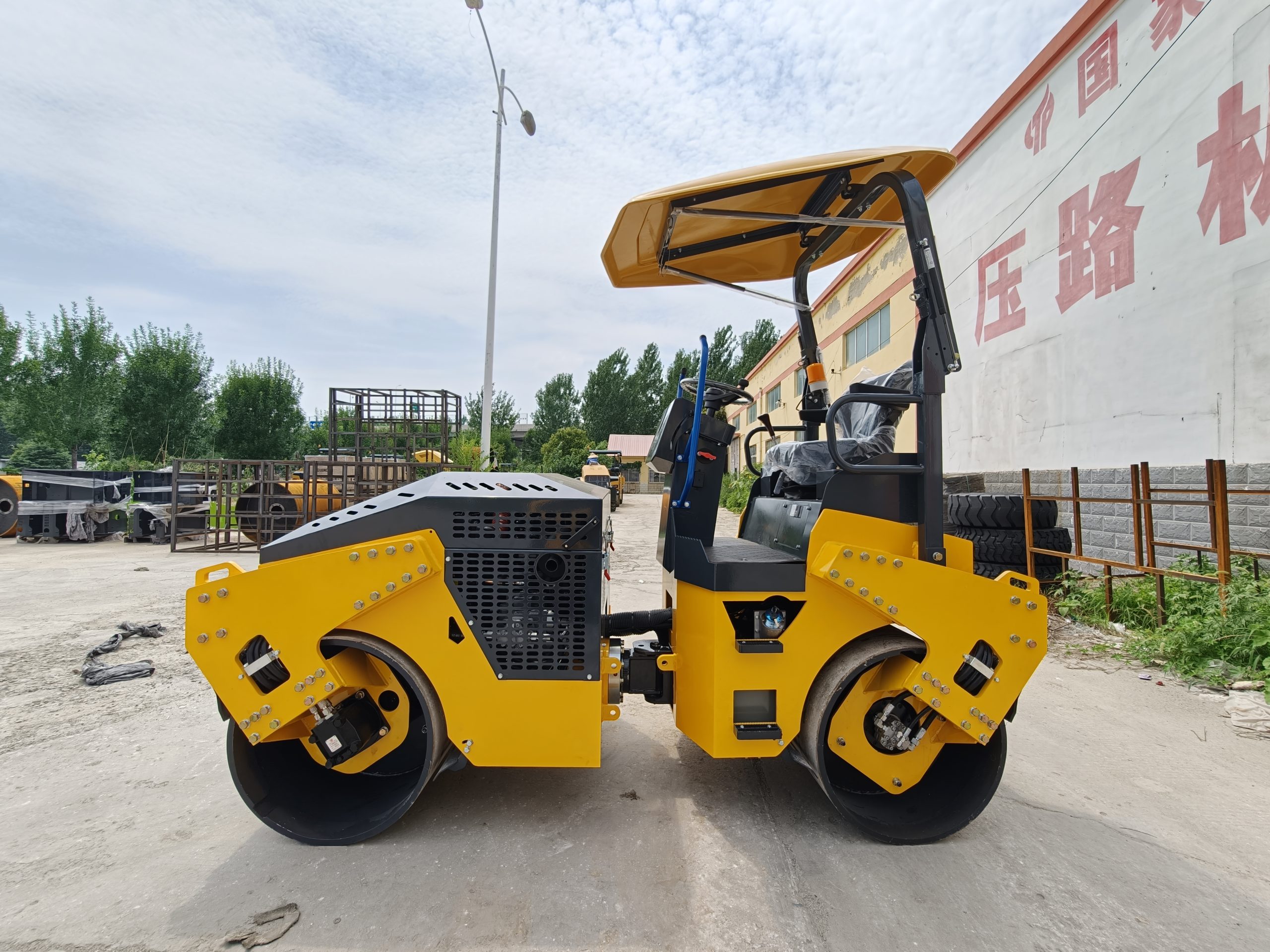

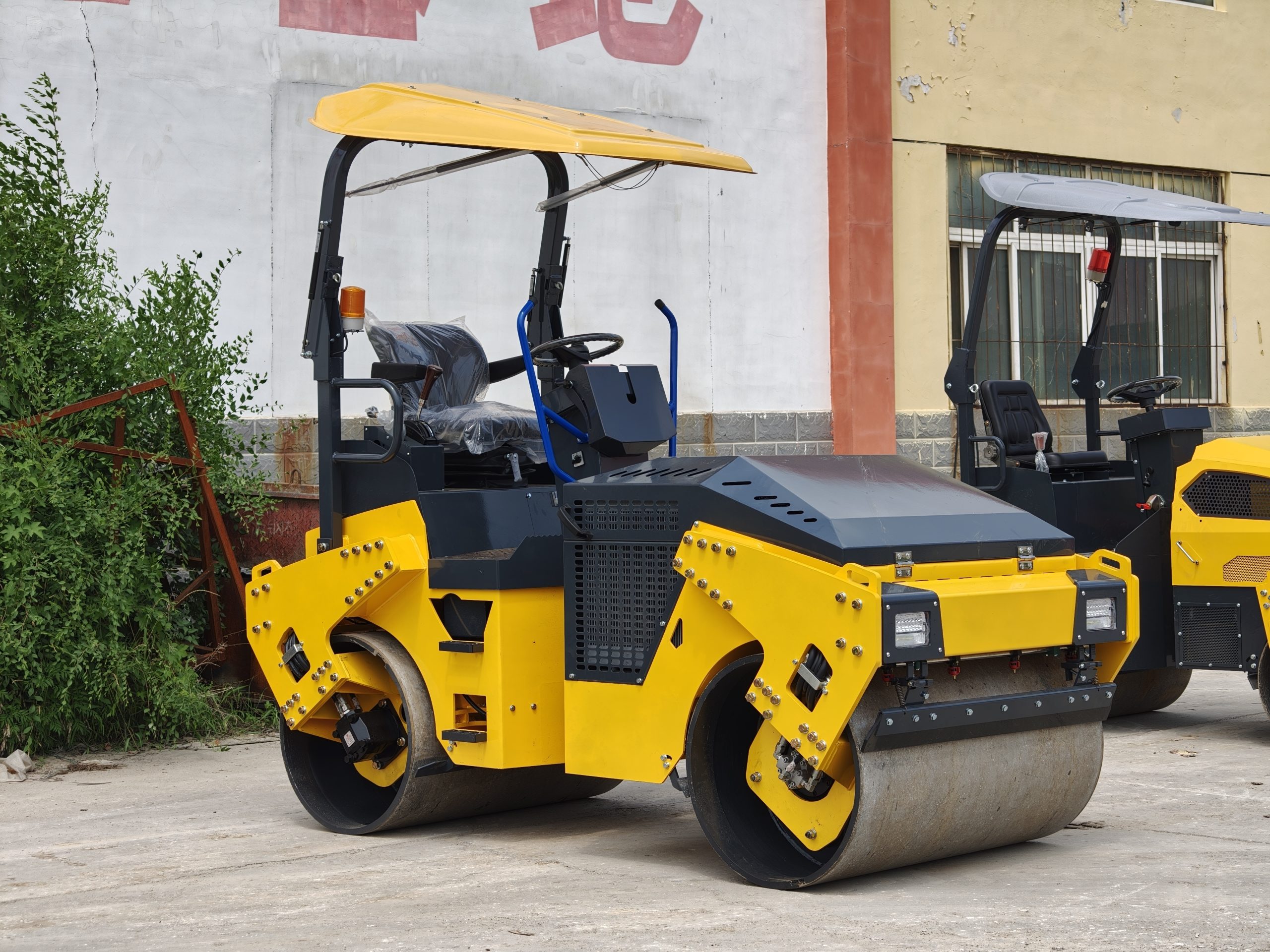

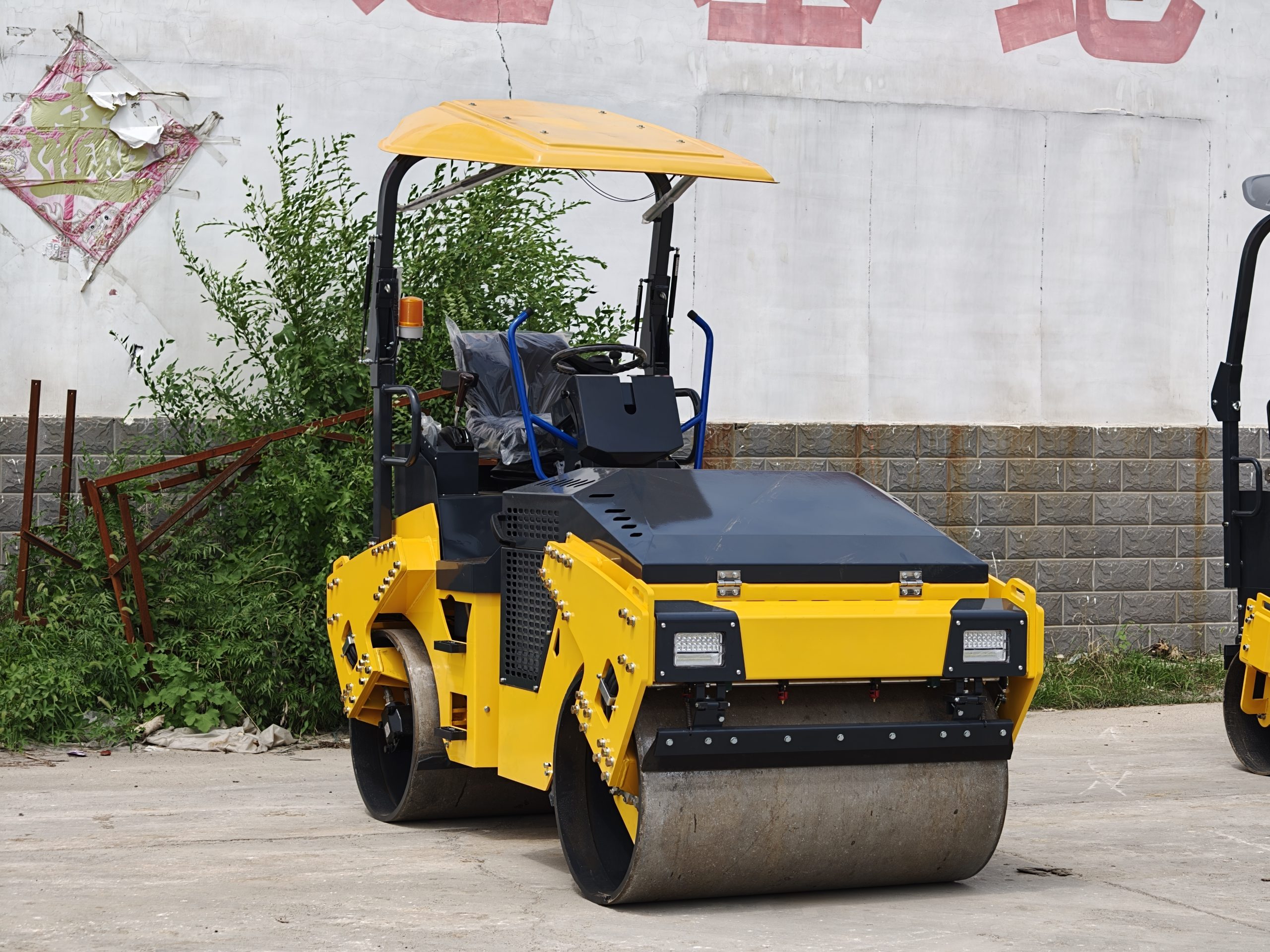

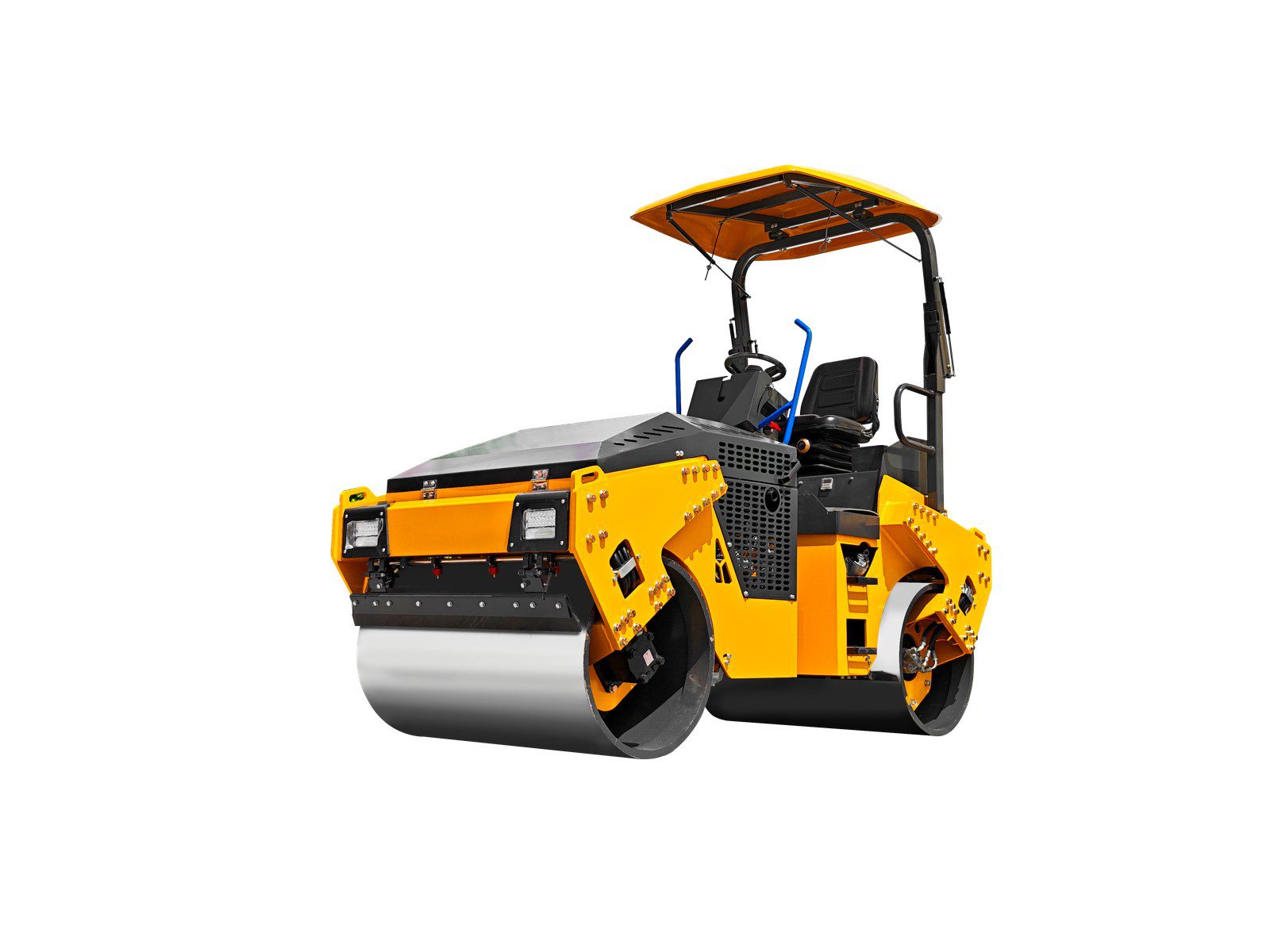

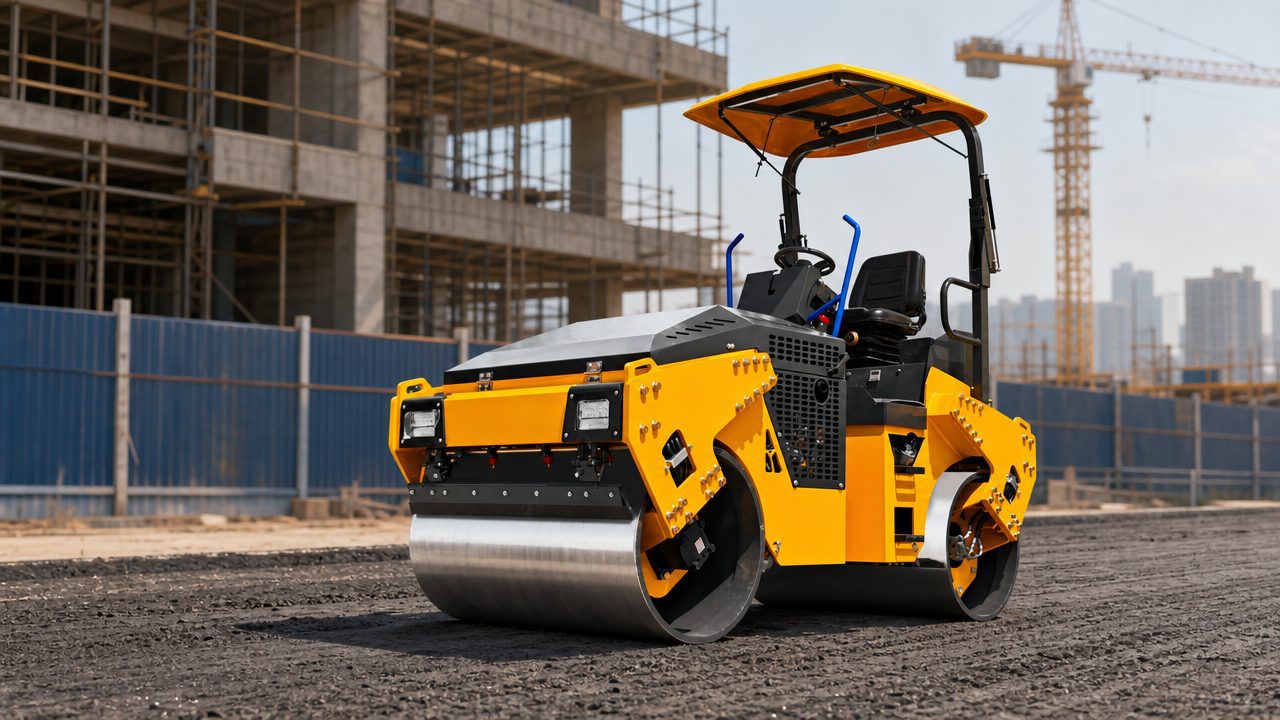

LUXIN LX35JS 3.5-Ton Dual-Vibration Double Drum Vibratory Roller
New-generation CE-certified 3.5-ton (3,500 kg) fully hydraulic double drum vibratory roller powered by a 25 kW (35 hp) CC-390 3-cylinder diesel engine. Features smart LCD display with automatic fault diagnosis, low-slung front hood for superior visibility, dual-amplitude hydraulic vibration (60 kN @ 60 Hz), tight 3,850 mm turning radius, and a 146L water tank. Designed for high-efficiency compaction on urban roads, highways, and industrial sites.
Table of Contents

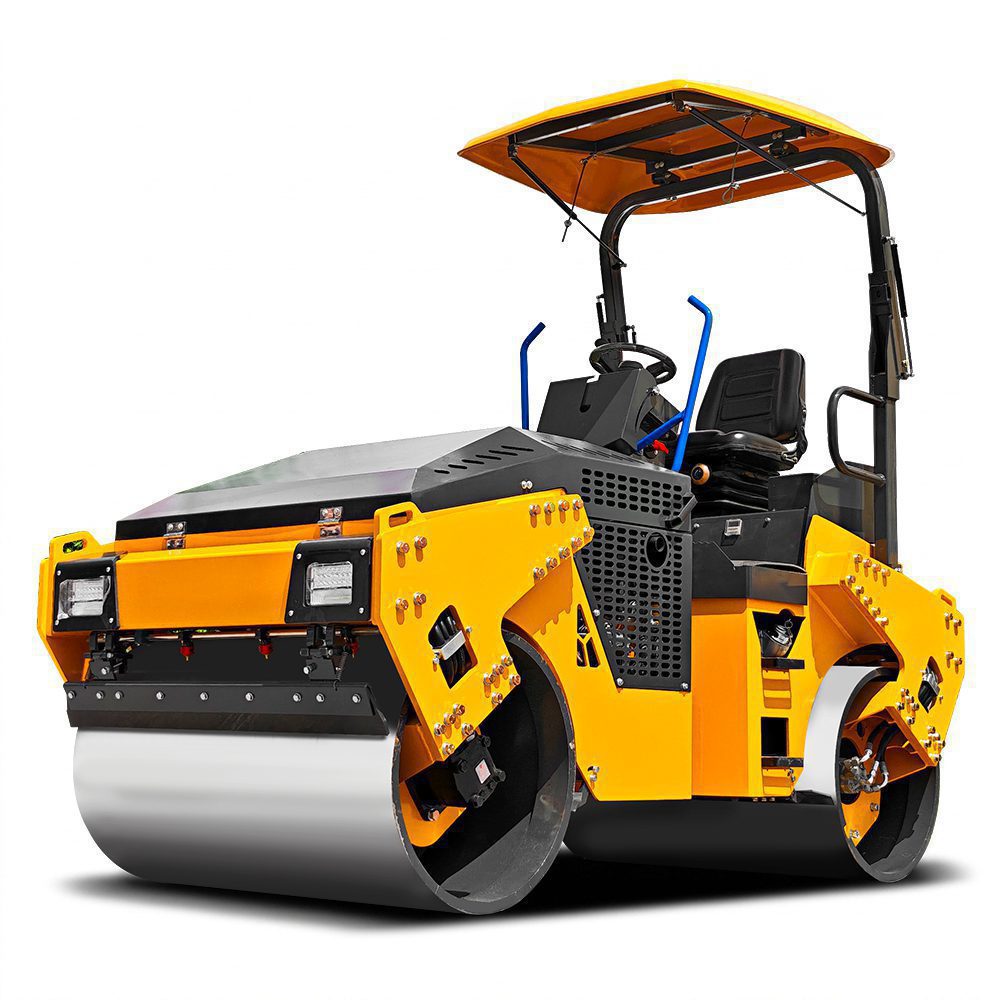

The New LX35JS is an upgraded, CE-certified 3.5-ton fully hydraulic double drum vibratory roller engineered for high-efficiency compaction and maintenance of road sub-bases and asphalt surfaces. Powered by a dependable CC-390 3-cylinder diesel engine (25 kW / 35 hp @ 2,600 rpm), this new model combines robust compaction force with advanced ergonomic design and intelligent monitoring features.
Featuring a hydraulic dual-amplitude dual-vibration system, the new LX35JS allows operators to engage both drums or isolate front-wheel vibration depending on jobsite requirements. With a low-slung front hood for exceptional visibility, a smart LCD display with automatic fault diagnosis, a tight 3,850 mm turning radius, and an integrated 146L water tank, it delivers top-tier performance across urban streets, highways, water conservancy projects, and industrial sites.
Key Features & Improvements
- Intelligent LCD Display & Fault Diagnosis: High-end model configuration includes a digital LCD interface with automatic fault diagnosis for easy, real-time machine monitoring and simplified operation.

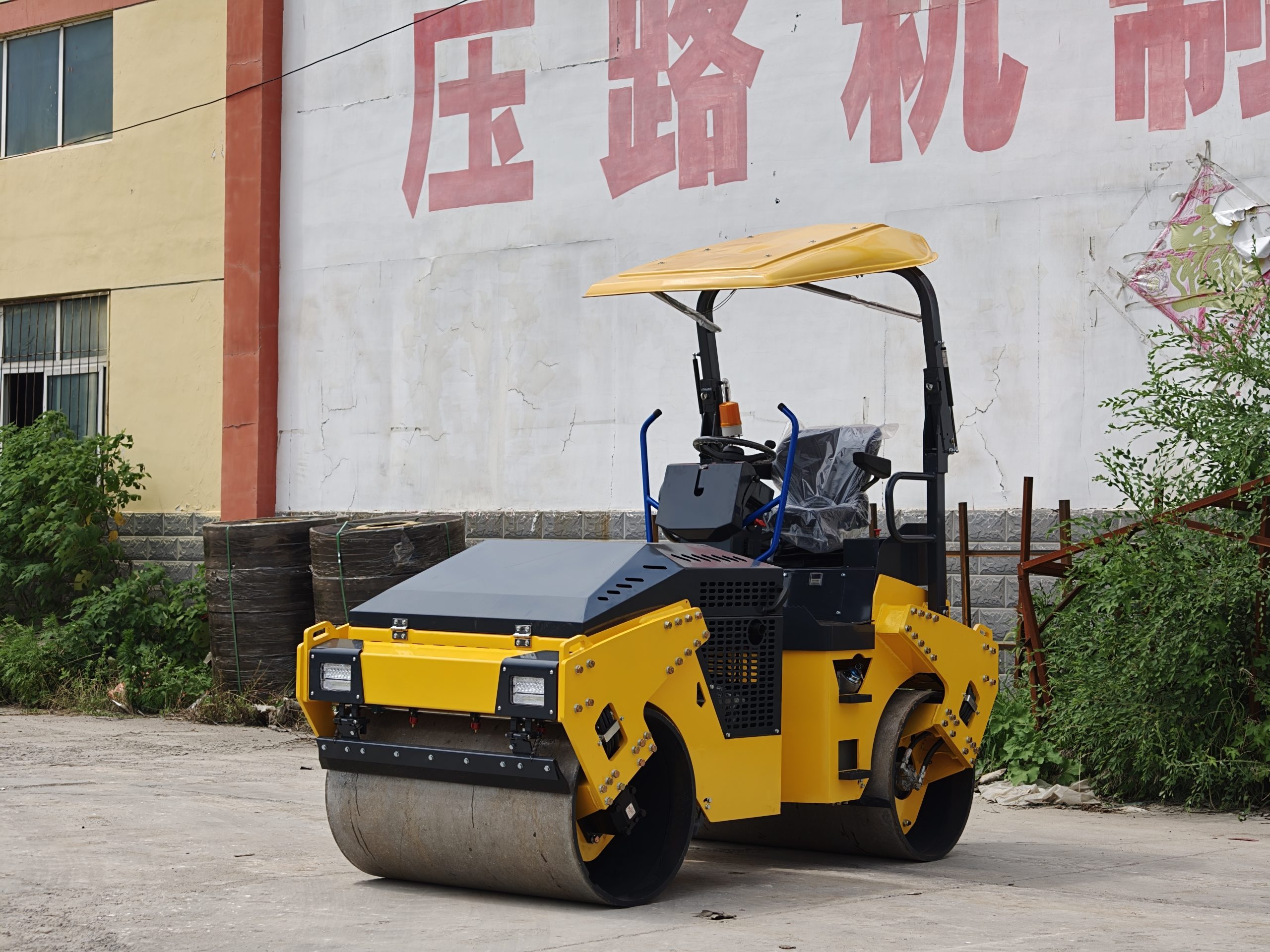

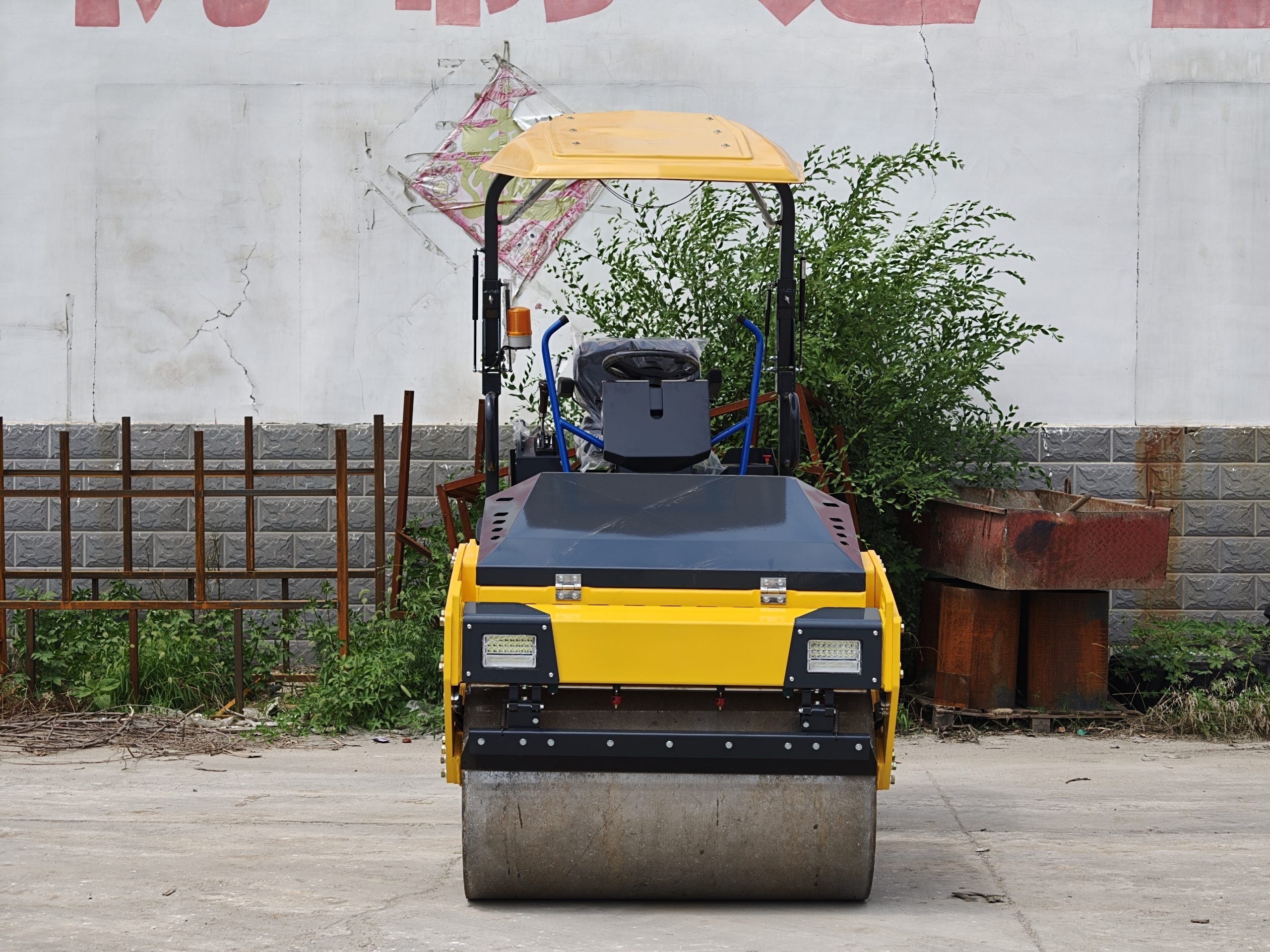

- Low-Slung Front Hood Design: Redesigned front hood expands forward sightlines and allows quick, unobstructed access for engine maintenance and servicing.
- Hydraulic Dual-Amplitude Dual-Vibration: Advanced high-pressure vibration system allows operation with dual-drum vibration or independent front-drum vibration for flexible site compaction.
- Automatic / Electromagnetic Clutch Control: Smooth, precise vibration control system for reliable performance and operator ease.
- Enhanced Safety Parking System: Built-in parking system ensures maximum site safety during slope stops and transport.
- Agile Turning Radius (3,850 mm): Articulated hydraulic steering design provides tight maneuverability in narrow urban streets and confined spaces.
- Durable Plastic-Sprayed Finish: Premium powder-coated body finish provides excellent resistance against rust, corrosion, and outdoor weathering.
- CE Certified: Built in compliance with European international safety and performance standards.
Recommended Applications

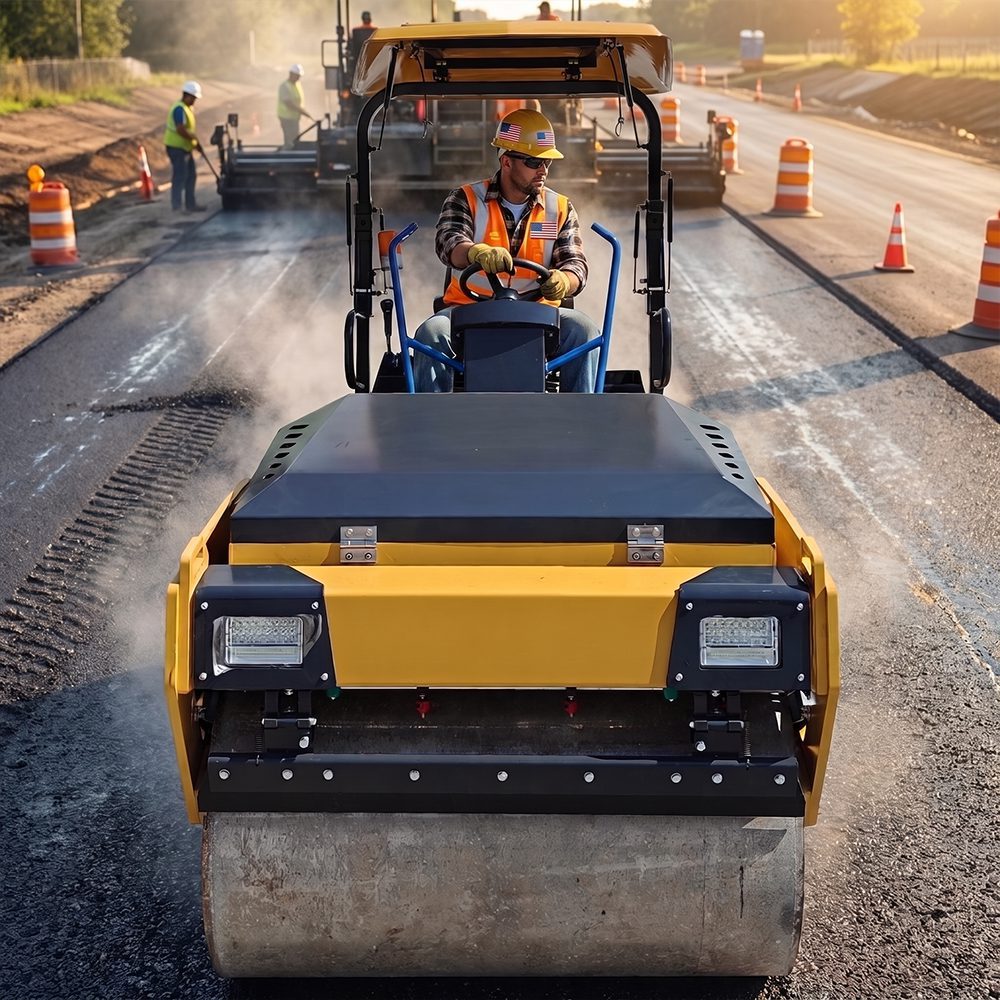

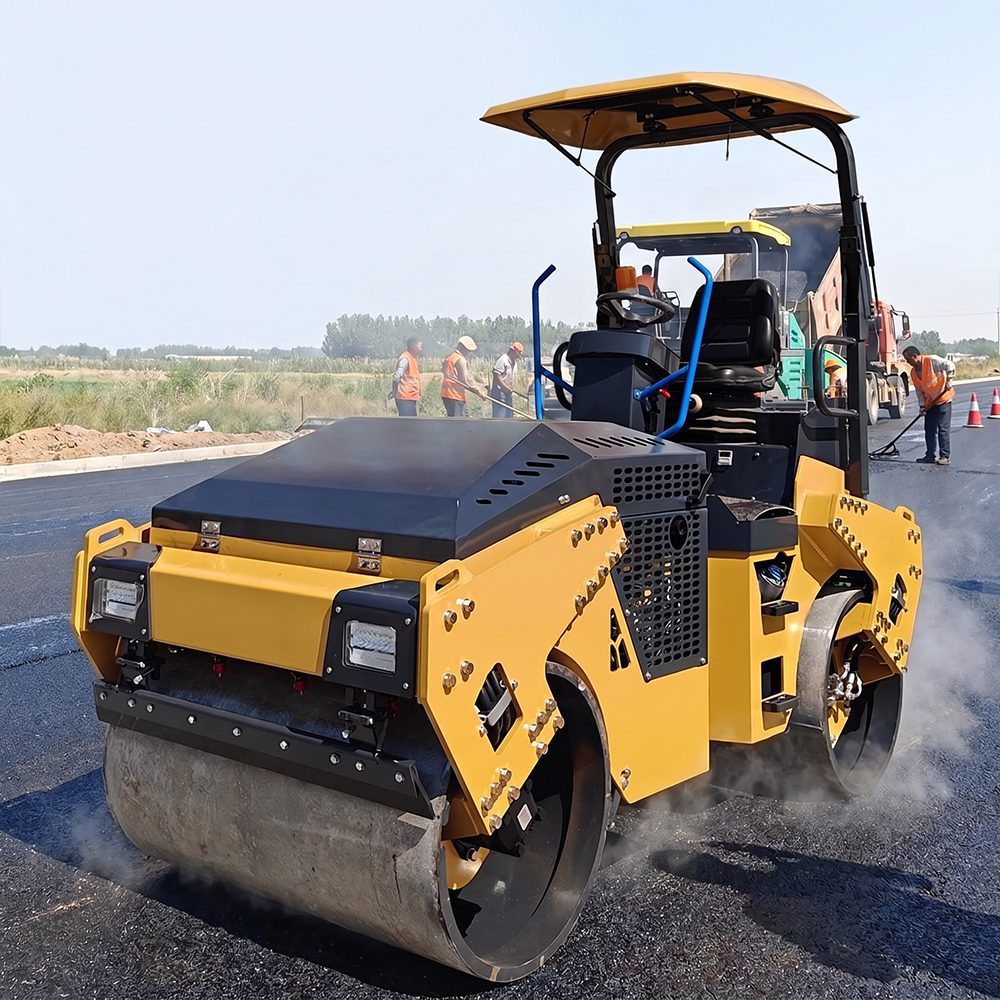

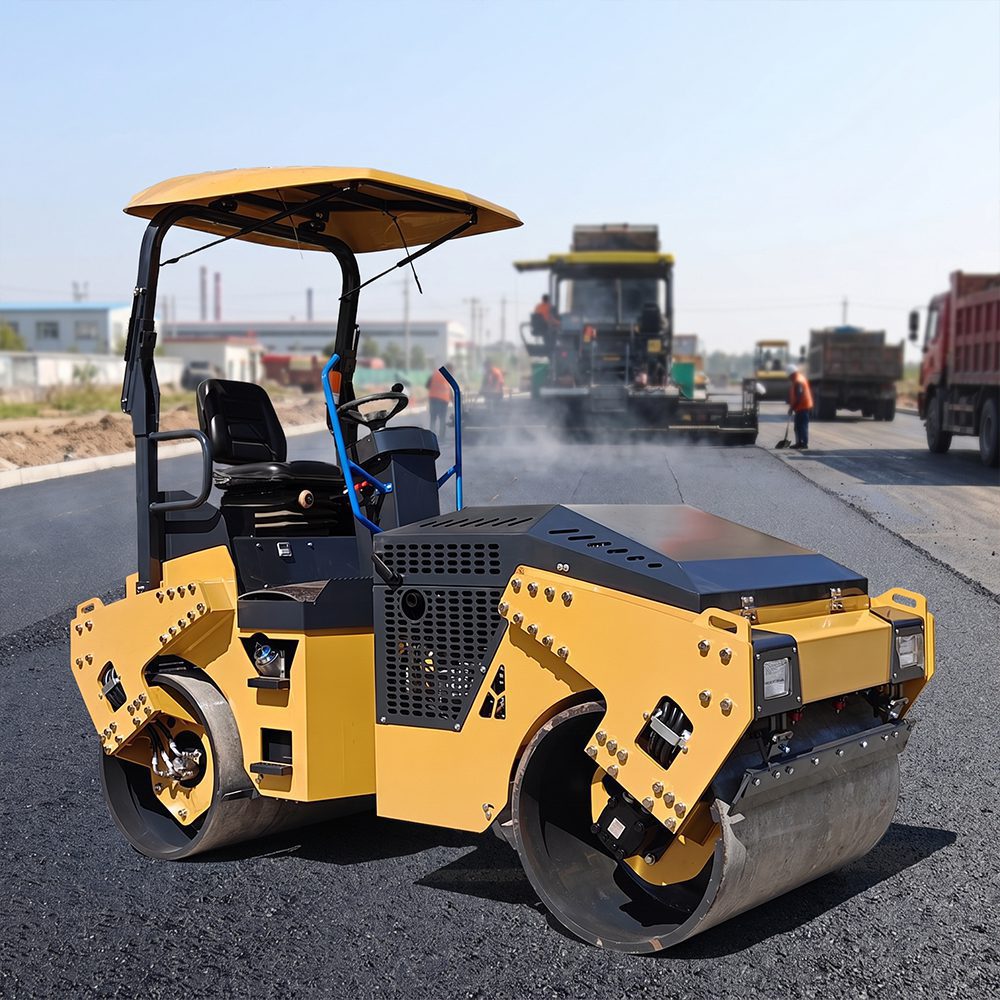

- Asphalt Paving & Maintenance: Resurfacing, patching, and smooth compaction of urban streets, inter-city highways, and rural roads.
- Municipal & Utility Roadwork: Pipe trench backfilling, sidewalk construction, and urban lane expansion.
- Commercial & Industrial Sites: Leveling and compacting parking lots, industrial yards, logistics plazas, and sports stadiums.
- Water Conservancy & Earthworks: Dike consolidation, embankment repair, and base soil preparation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LX35JS (New Design) |
| Certification | CE Certified |
| Operating Weight | 3,500 kg |
| Static Line Load | 125 kN/m |
| Engine Model & Type | CC-390 Diesel, 3-Cylinder |
| Rated Power | 25 kW / 35 hp @ 2,600 rpm |
| Drive & Vibration Mode | Hydraulic Dual-Amplitude, Front + Rear Drum Vibration |
| Exciting Force | 60 kN |
| Vibration Frequency | 60 Hz |
| Nominal Amplitude | 0.5 mm |
| Working / Drum Width | 1,200 mm |
| Steel Drum Diameter | 700 mm |
| Steel Drum Thickness (S) | 12 mm |
| Working Speed | 0–9 km/h (Infinitely Variable) |
| Climbing Ability (Gradeability) | 30° |
| Minimum Turning Radius | 3,850 mm |
| Minimum Ground Clearance | 270 mm |
| Wheelbase | 1,930 mm |
| Water Tank Capacity | 146 L |
| Hydraulic Oil / Fuel Tank | 62 L / 51 L |
Overall Dimensions
- Overall Length (L): 2,900 mm
- Overall Width (W): 1,300 mm
- Working / Drum Width (W1): 1,200 mm
- Overall Height with Canopy (H): 2,508 mm
- Frame / Seat Height (H1): 1,750 mm
- Ground Clearance (H2): 270 mm
- Wheelbase (L1): 1,930 mm
- Drum Diameter (D): 700 mm
