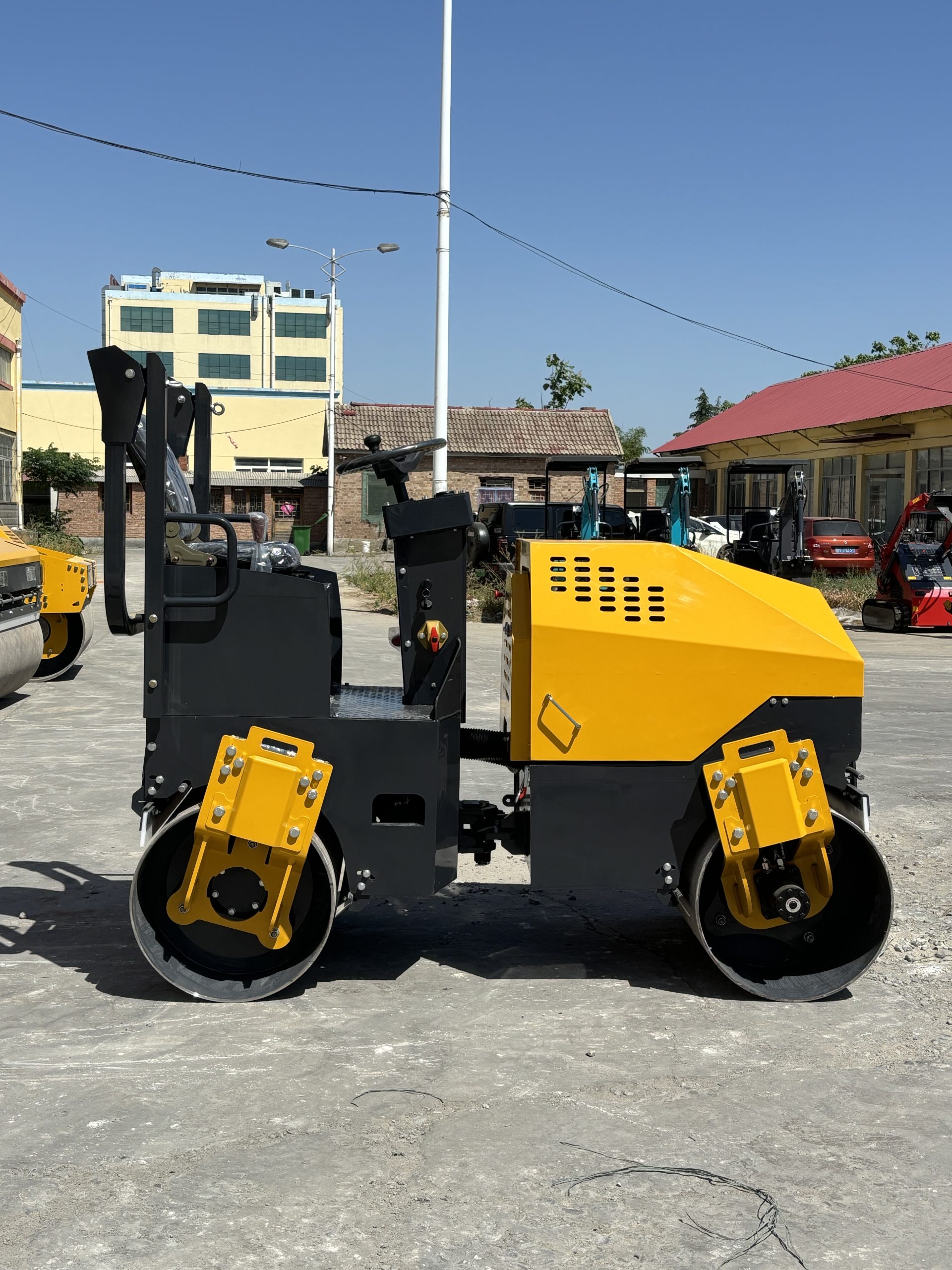

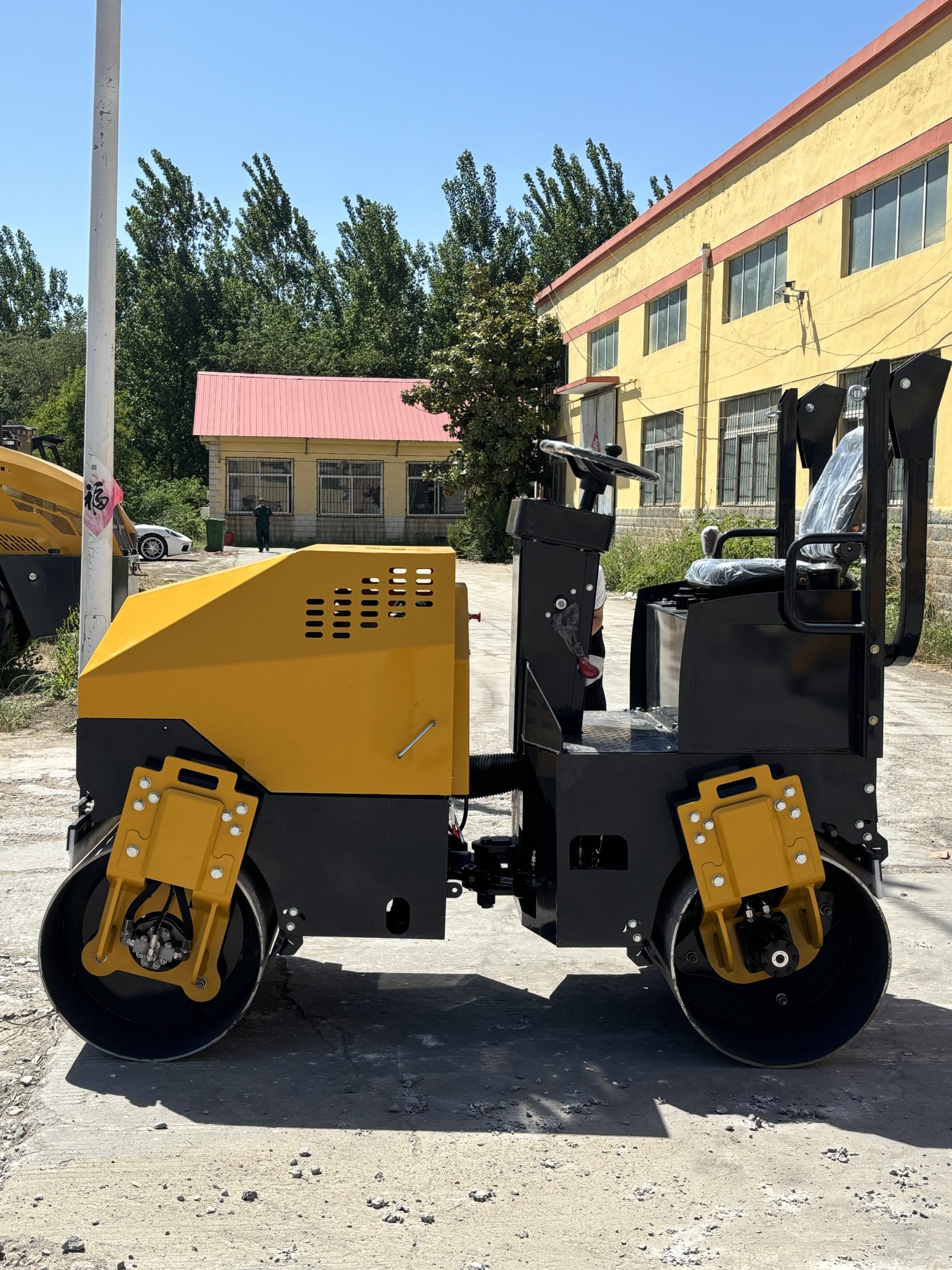

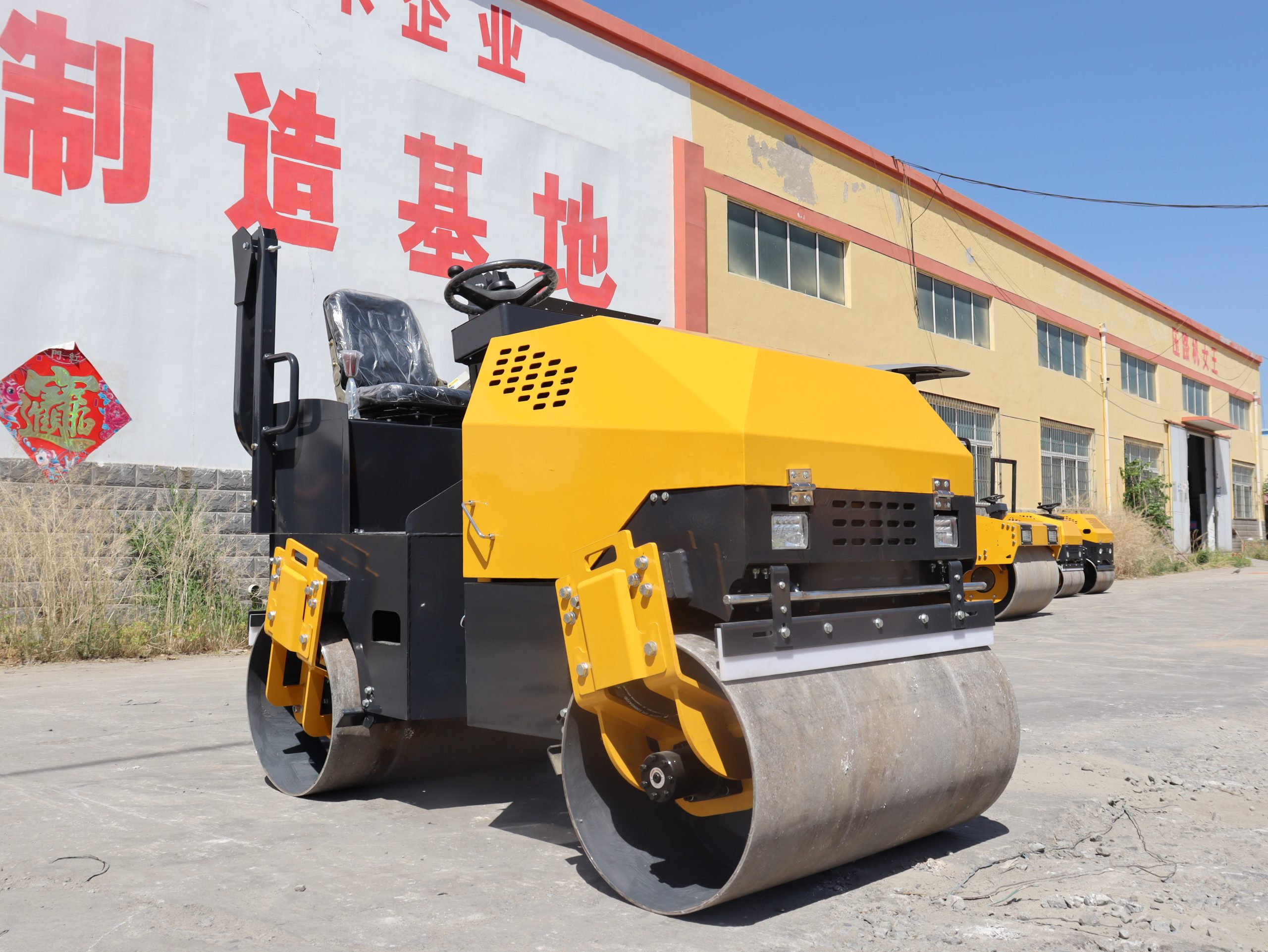

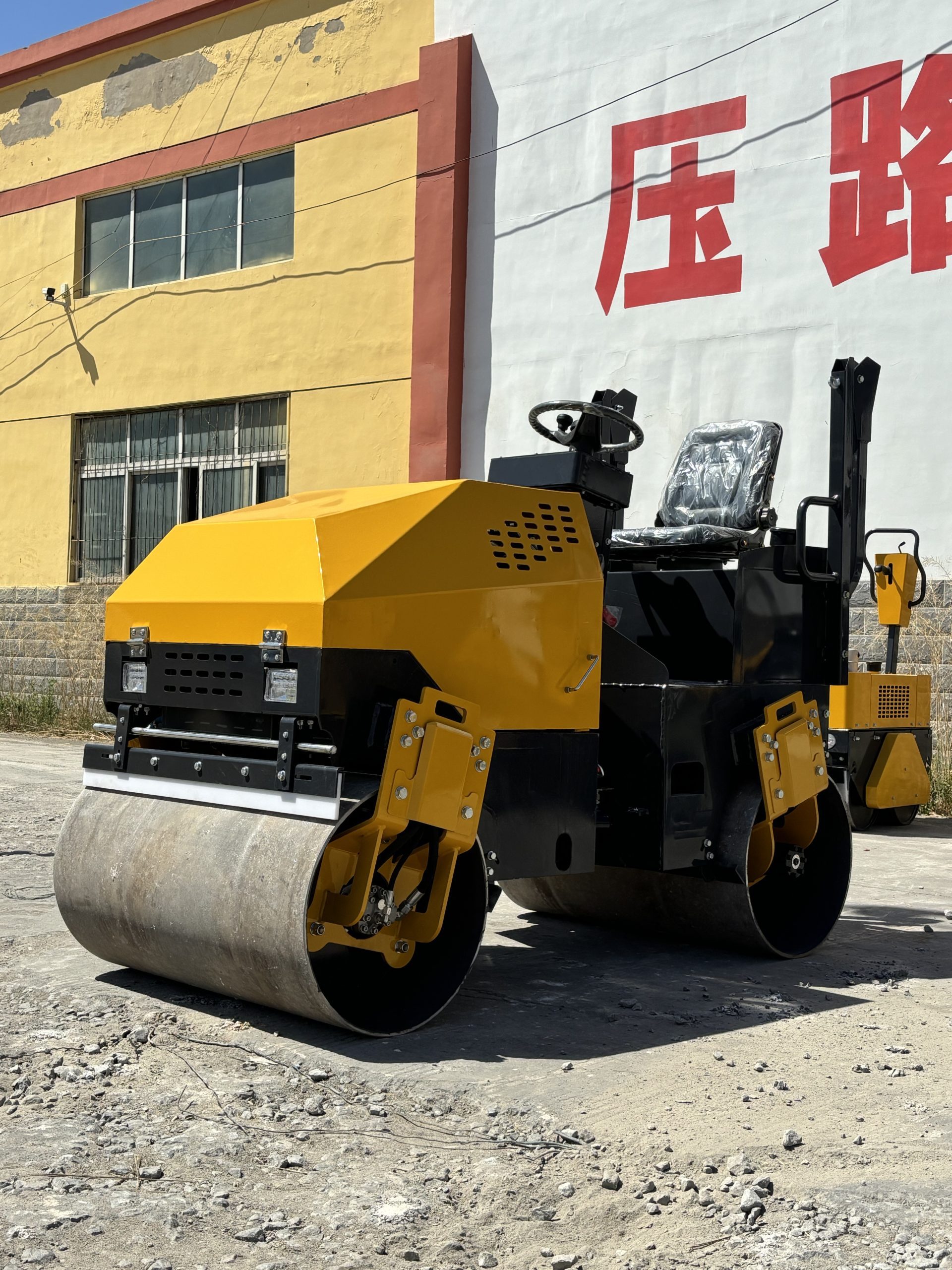

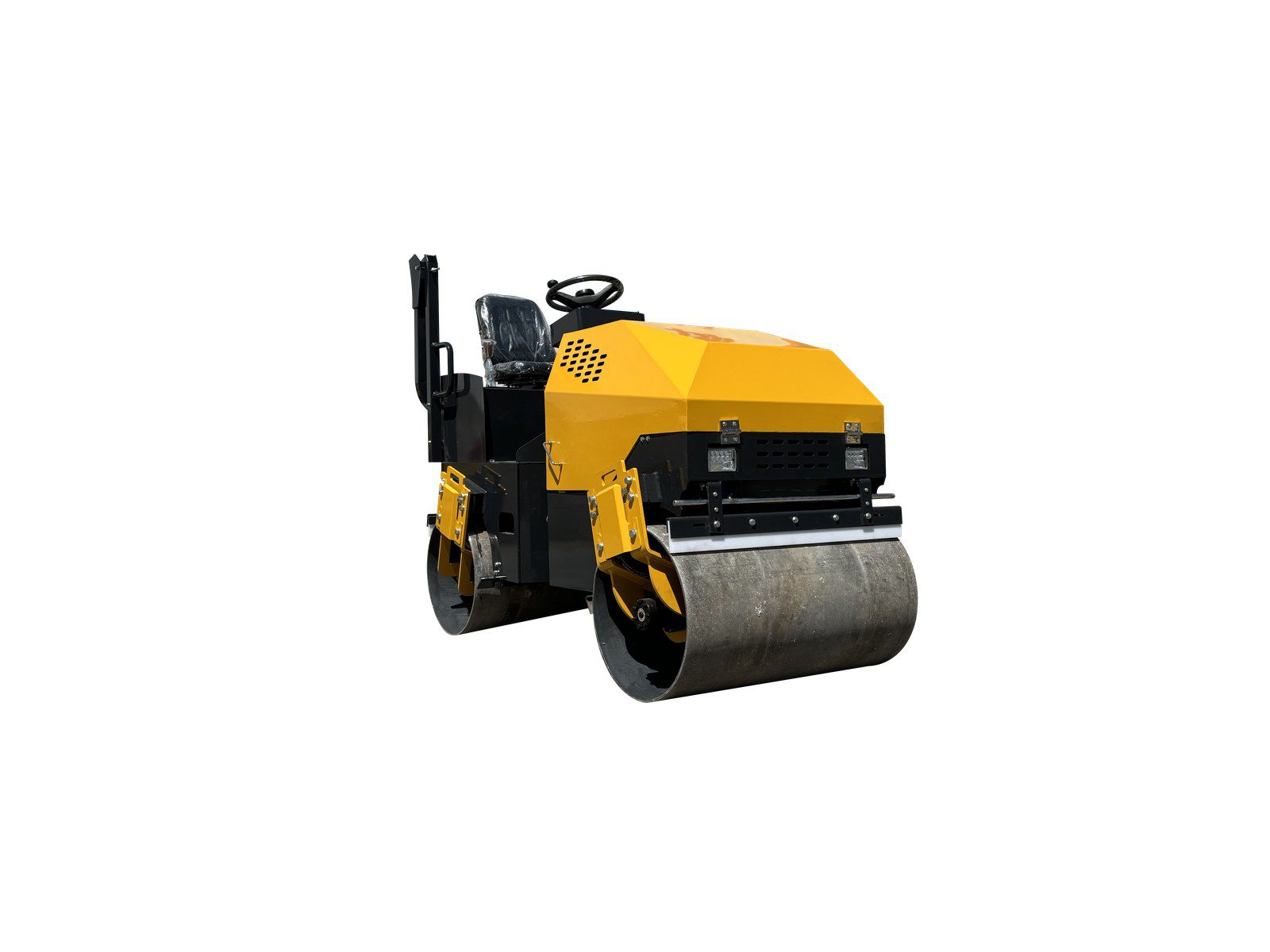

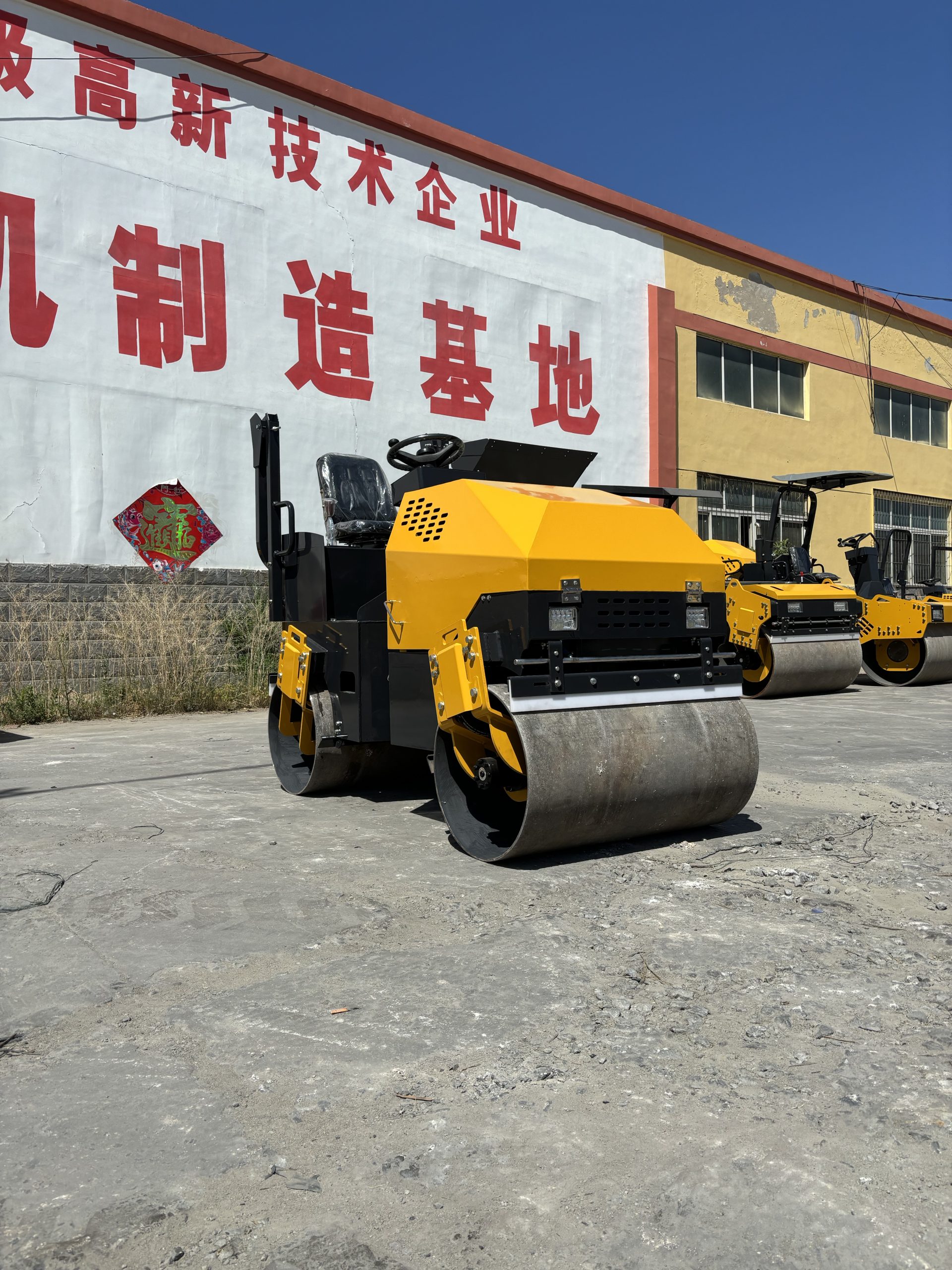

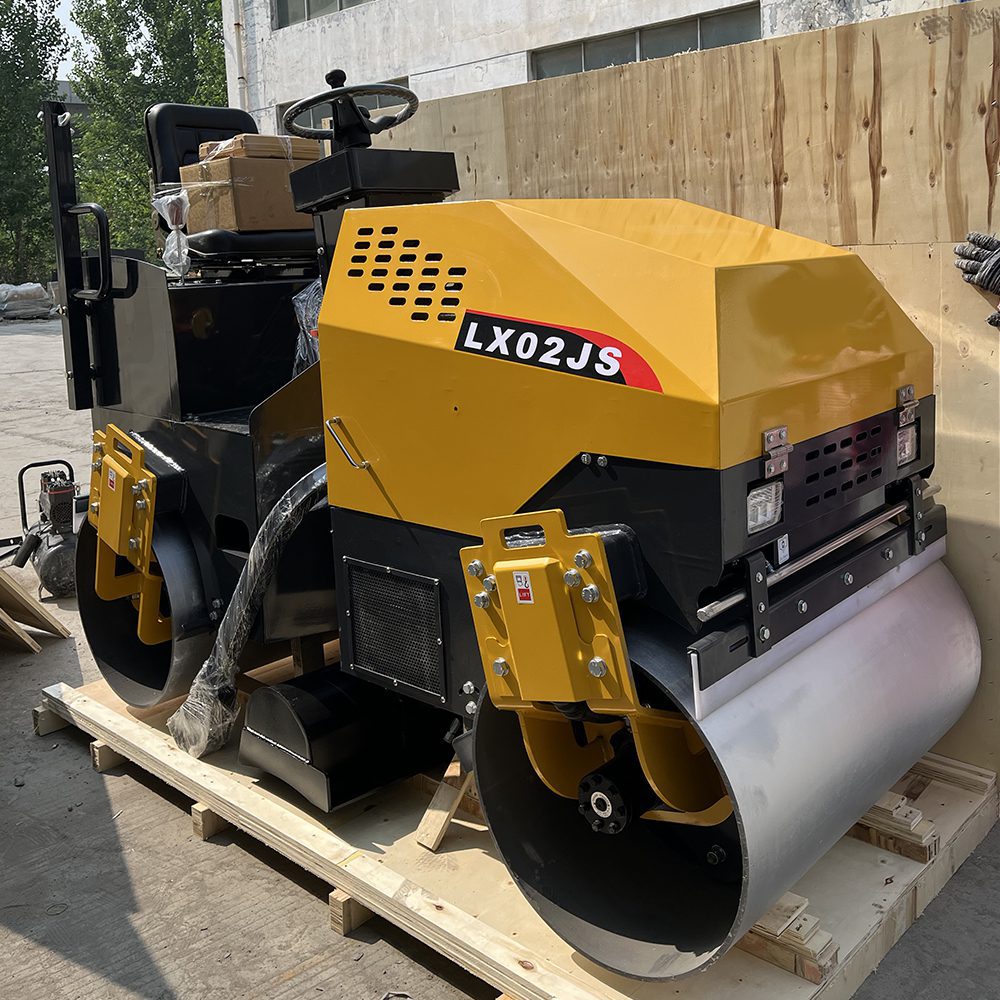

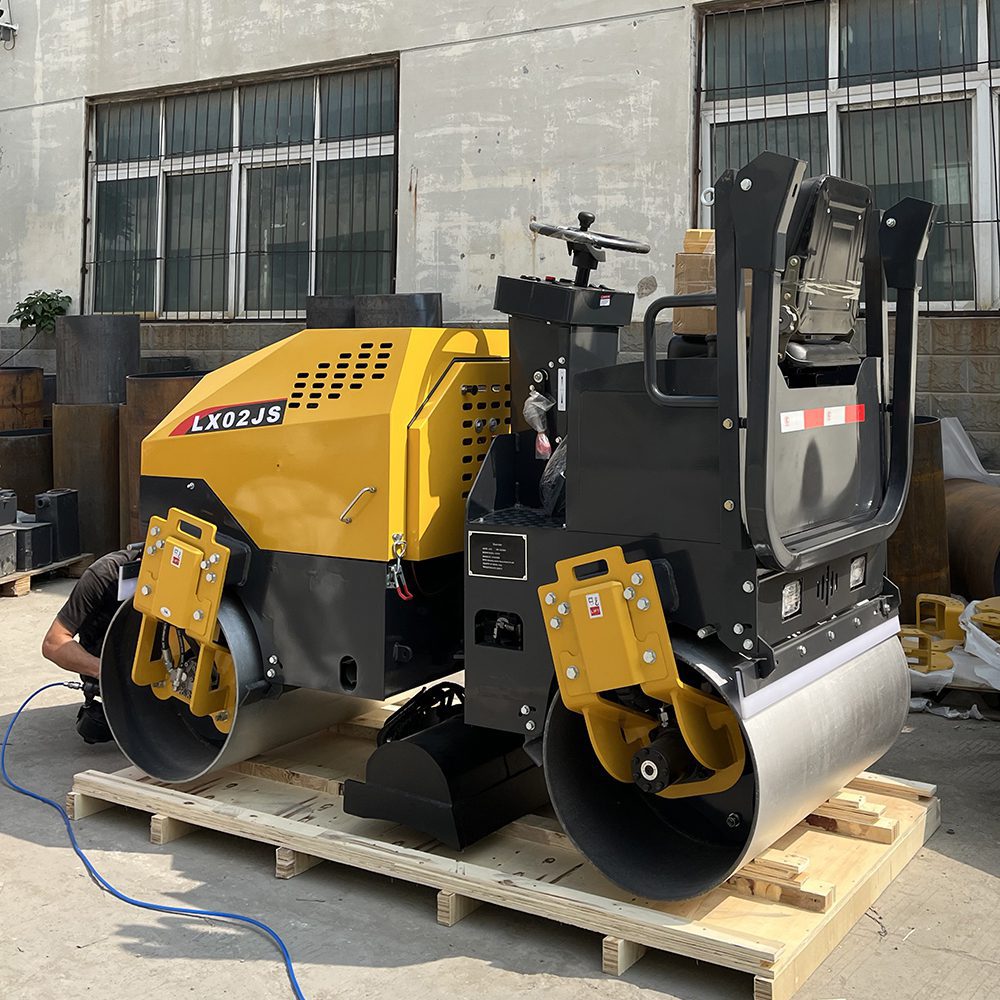

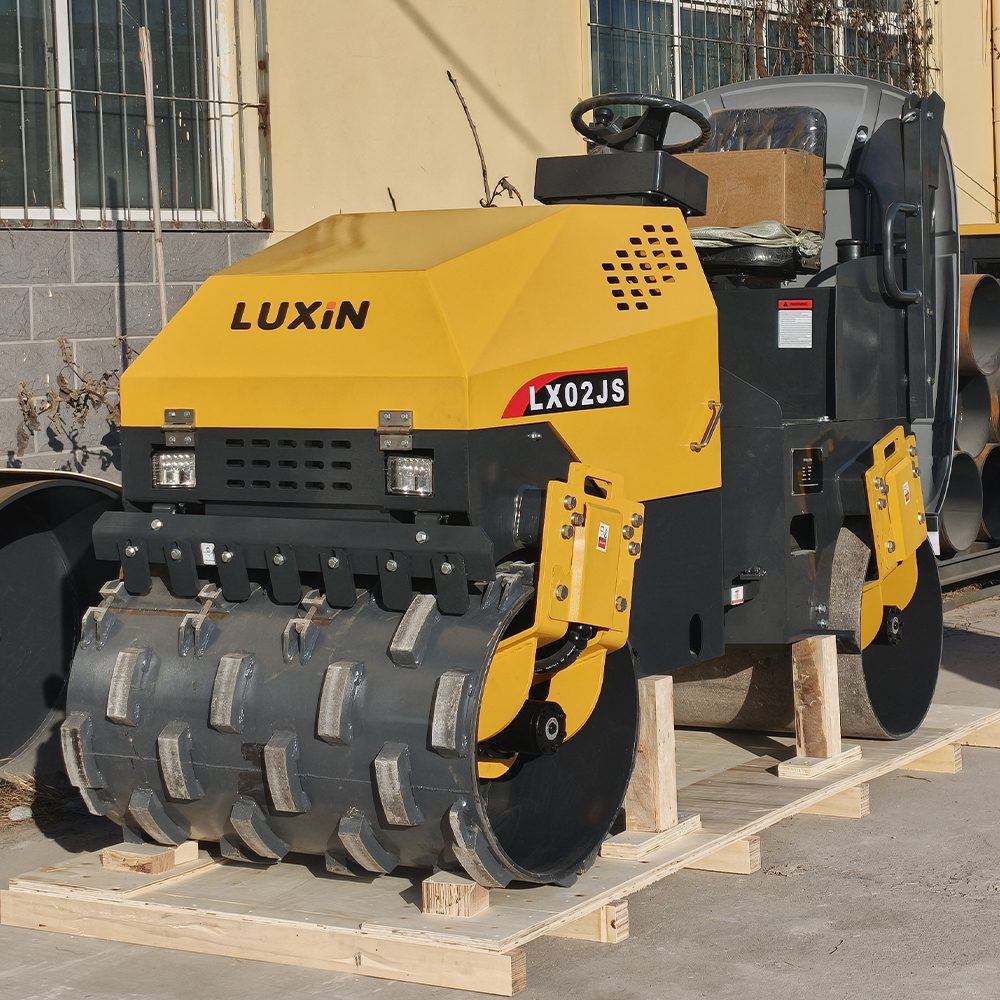

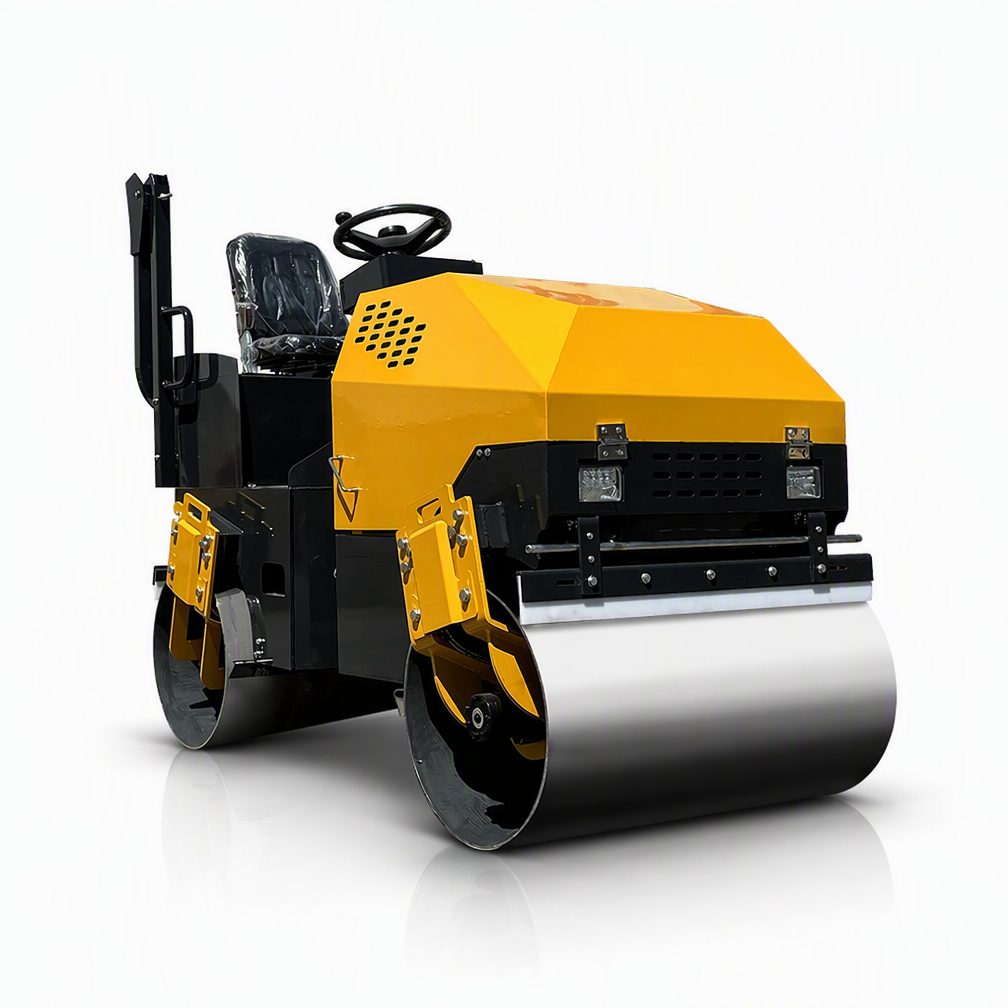

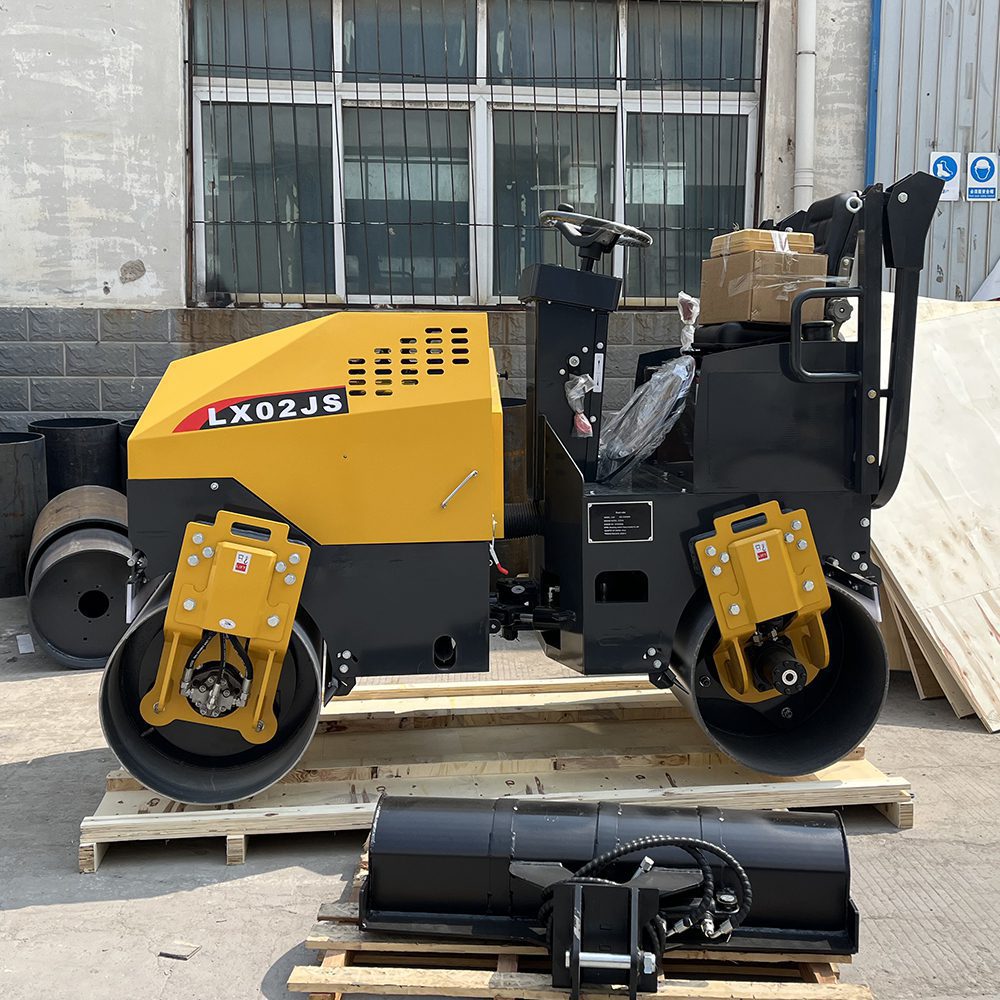

LUXIN LX02JS 2-Ton Fully Hydraulic Double Drum Vibratory Roller
Compact and agile 2-ton (2,000 kg) fully hydraulic double drum vibratory roller driven by an 11.5 kW (15.6 hp) CC-H16 diesel engine. Features continuously variable hydrostatic drive, front-drum vibration delivering a 29.1 kN exciting force at 48.75 Hz frequency, 1,000mm working width, tight 2,210 mm turning radius, electric key start, and a 70L integrated water spray system. Designed for municipal road repair, trench compaction, parking areas, and asphalt paving.
Table of Contents
The LUXIN LX02JS is a compact and versatile 2-ton fully hydraulic double drum vibratory roller engineered for high-efficiency compaction on road construction, trench backfilling, municipal maintenance, and commercial paving projects. Powered by an 11.5 kW / 15.6 hp CC-H16 single-cylinder diesel engine (@ 2,400 rpm), this roller provides smooth operational control, electric starting convenience, and long-term site reliability.
Featuring a continuously variable hydraulic drive (0–10 km/h) and front-drum vibration across a 1,000 mm working width, the LX02JS generates a strong 29.1 kN exciting force at 48.75 Hz vibration frequency. Built with a small 2,210 mm turning radius, 30° gradeability, an integrated 70L water spray system, and an ergonomic operator platform, it easily navigates narrow urban alleys, parking bays, and confined construction zones.
Key Features
- Continuously Variable Hydraulic Transmission: Hydrostatic drive ensures seamless speed control (0–10 km/h) and effortless forward/reverse direction changes.
- Compact Maneuverability: Tight 2,210 mm turning radius allows efficient compaction in confined spaces, narrow streets, and utility trenches.
- Reliable Compaction Output (29.1 kN @ 48.75 Hz): Front steel drum vibration with 0.6 mm amplitude rapidly consolidates soil subgrades and asphalt overlays.
- Electric-Start Diesel Power: Dependable CC-H16 diesel engine delivering 11.5 kW (15.6 hp) with convenient key start operation.
- Integrated Pressurized Water Spray System: High-capacity 70 L water tank prevents hot asphalt sticking to the drum surfaces during paving operations.
- Ergonomic Operator Platform: Designed with comfortable operator seating, excellent line-of-sight to drum edges, and intuitive control levers.
- 30° Climbing Performance: Exceptional gradeability allows confident operation on sloped site profiles and ramps.
Recommended Applications
- Asphalt Roads & Overlay Repair: Surface compaction on urban streets, residential driveways, and cycle lanes.
- Municipal Projects & Utility Trenches: Trench backfilling, utility pipeline compaction, and sidewalk restoration.
- Parking Areas & Commercial Plazas: Asphalt leveling and finishing for shopping centers, school grounds, and industrial yards.
- Compact Soil Bases: Gravel base, sand, and aggregate subgrade consolidation for footings and pathways.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LX02JS |
| Operating Weight | 2,000 kg |
| Static Line Load | 19.62 kN/m |
| Engine Model & Type | CC-H16 Diesel, Single-Cylinder |
| Rated Power | 11.5 kW / 15.6 hp @ 2,400 rpm |
| Transmission Type | Continuously Variable Hydrostatic Drive |
| Vibrating Drum | Front Drum Hydraulic Vibration |
| Exciting Force | 29.1 kN |
| Vibration Frequency | 48.75 Hz |
| Nominal Amplitude | 0.6 mm |
| Working / Drum Width | 1,000 mm |
| Steel Drum Diameter | 560 mm |
| Working Speed | 0–10 km/h (Infinitely Variable) |
| Gradeability (Climbing Ability) | 30° |
| Minimum Turning Radius | 2,210 mm |
| Water Tank Capacity | 70 L |
| Hydraulic Oil / Fuel Tank | 65 L / 25 L |
Product Support
Contact LUXIN for the current technical data sheet, configuration options, pricing, and global export support.
