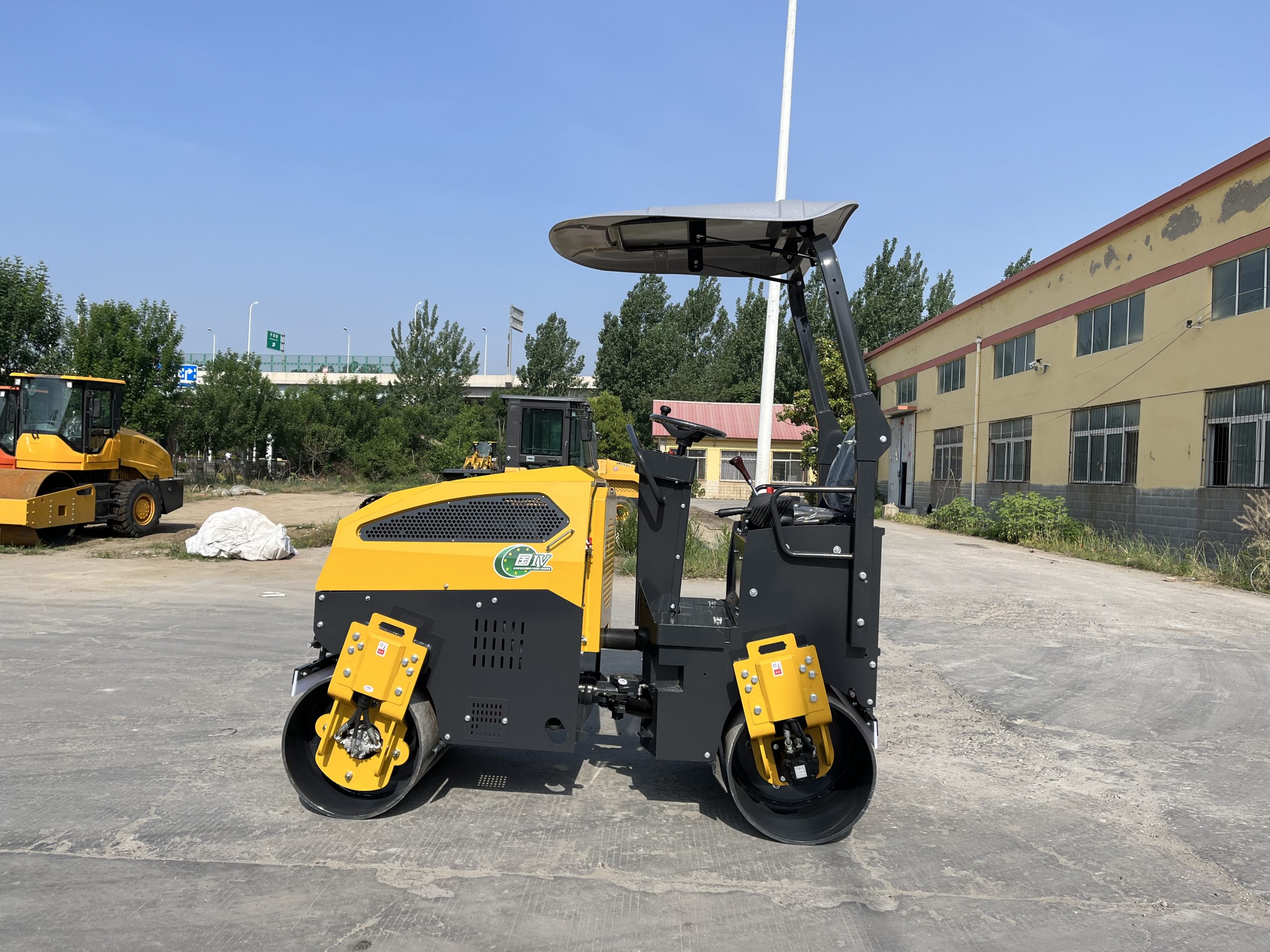

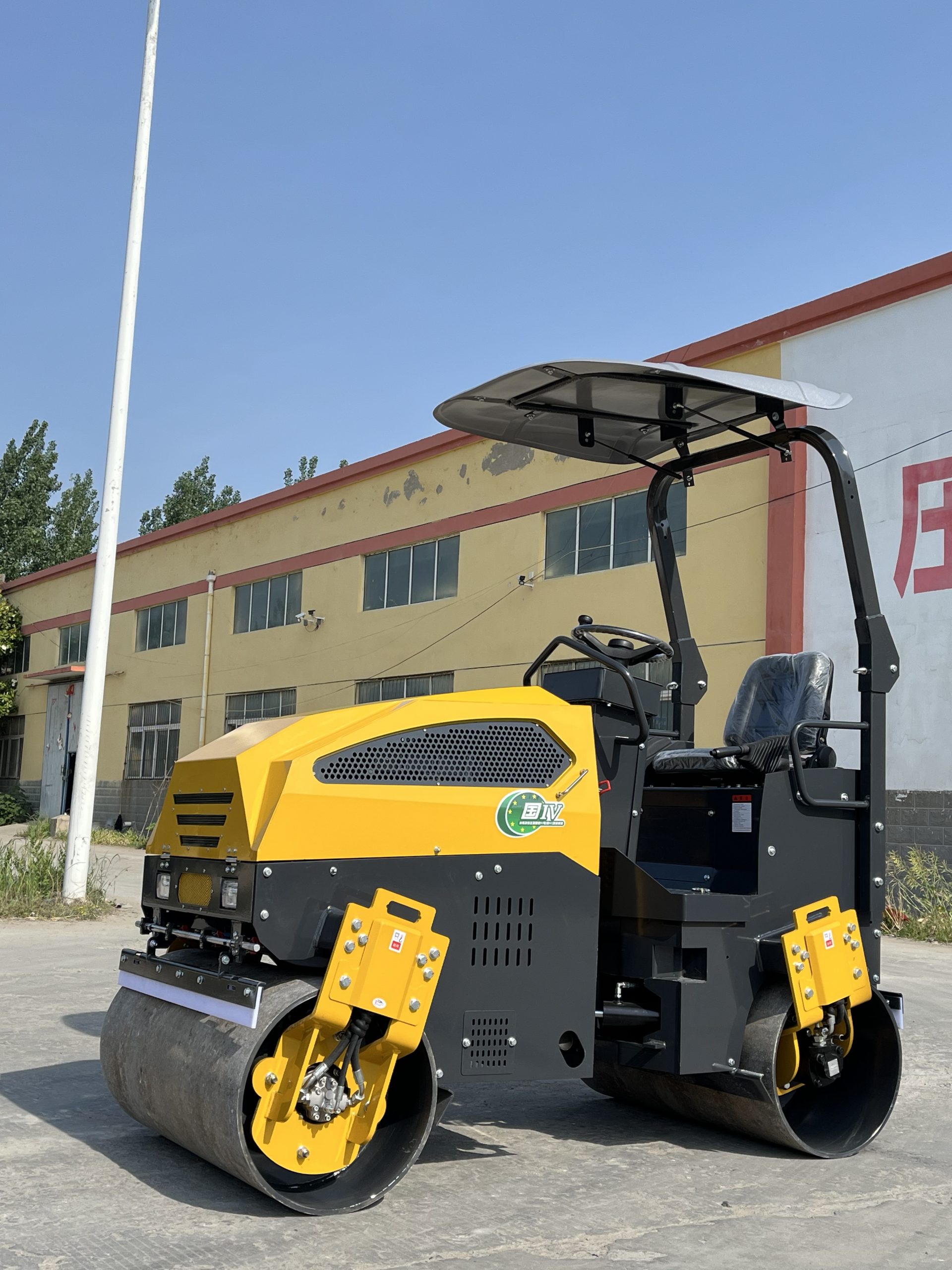

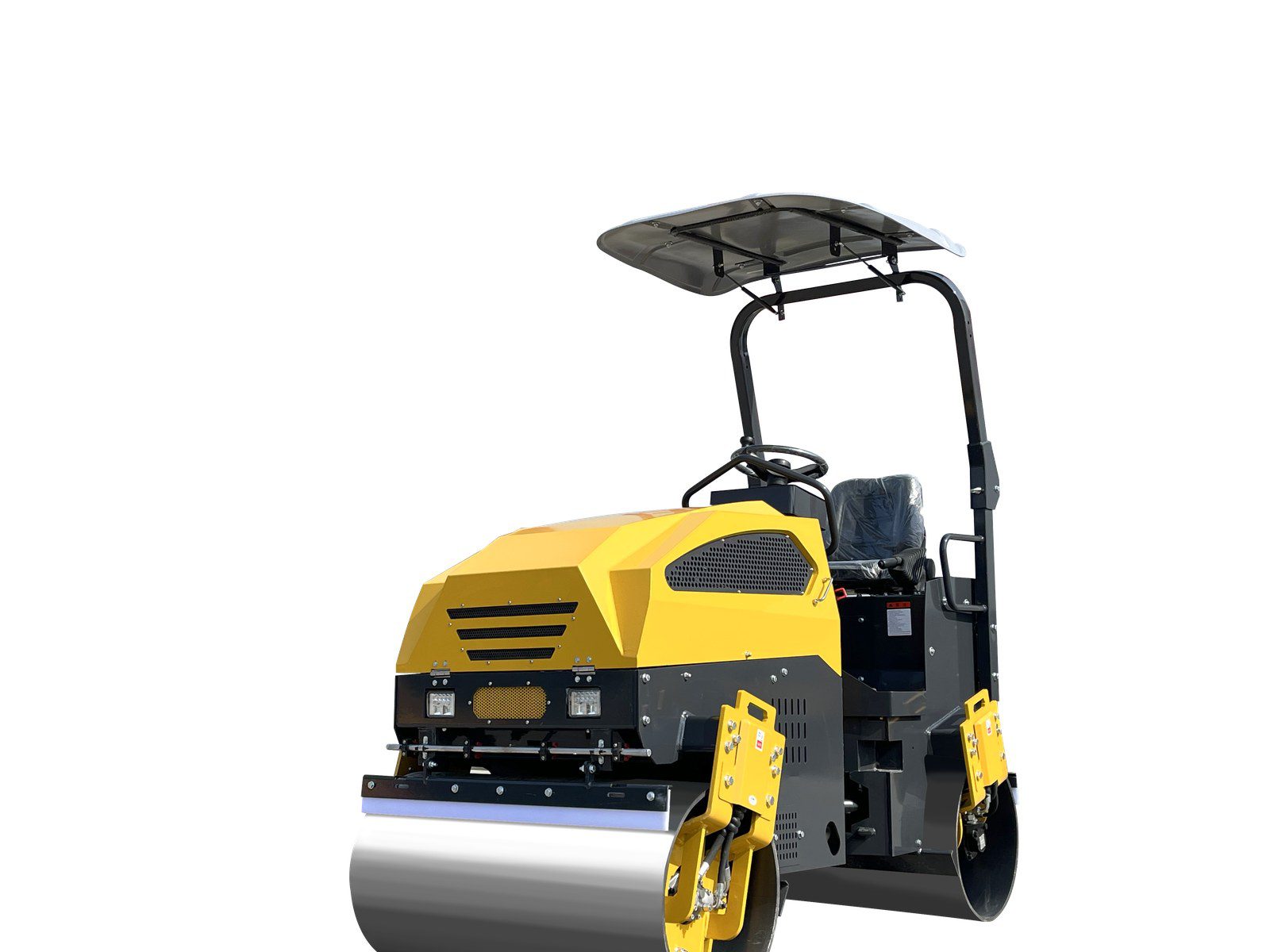

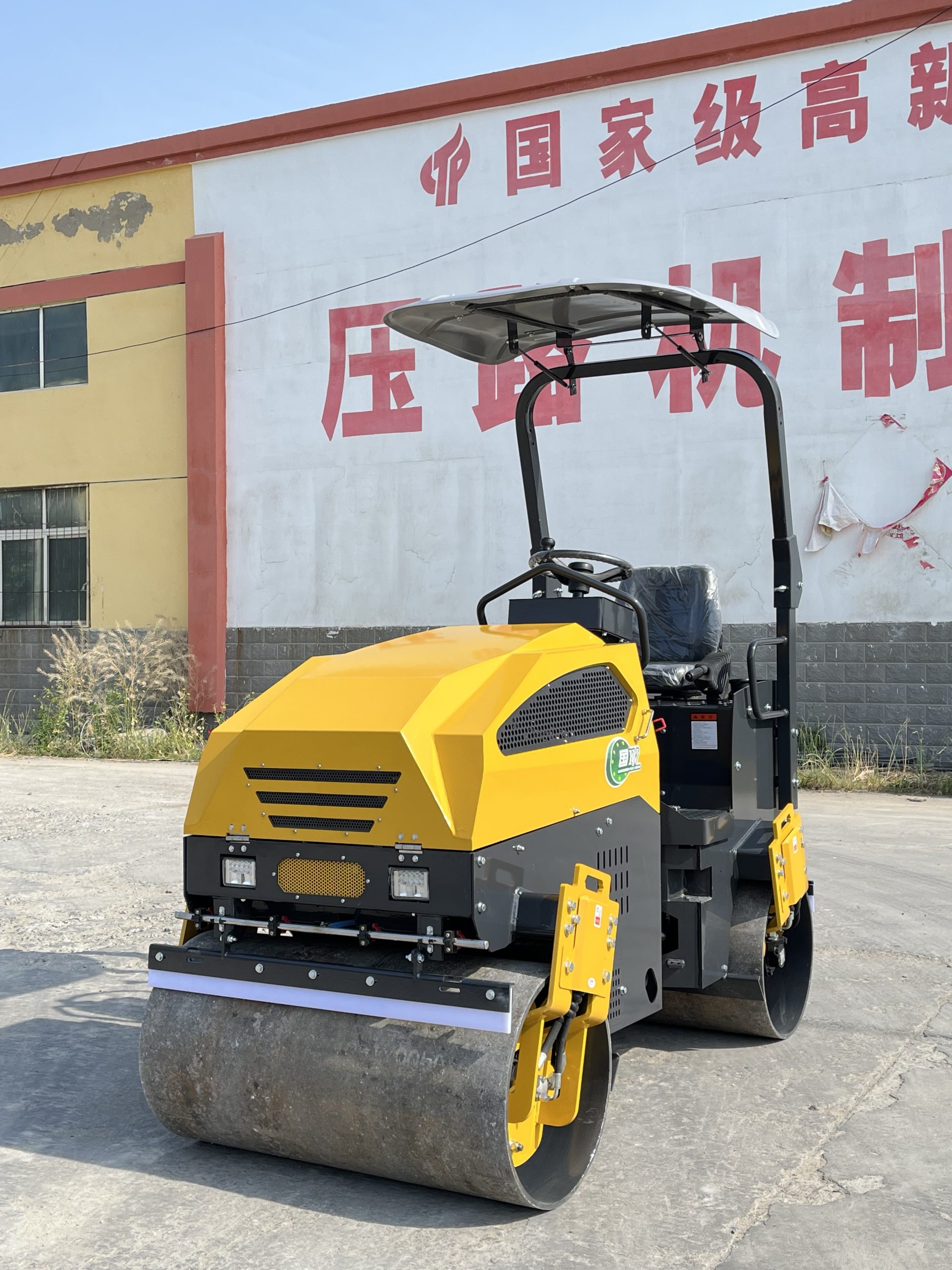

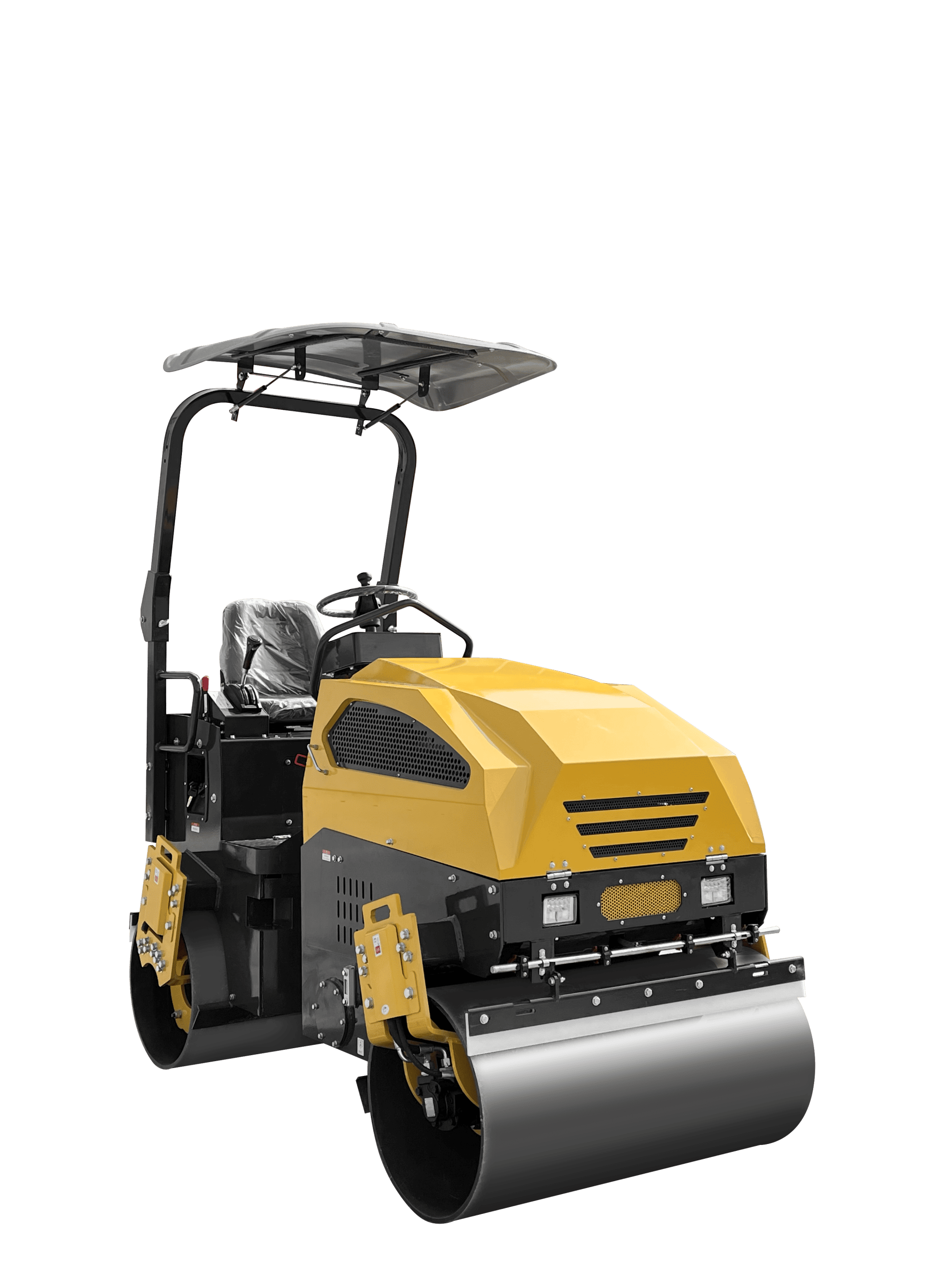

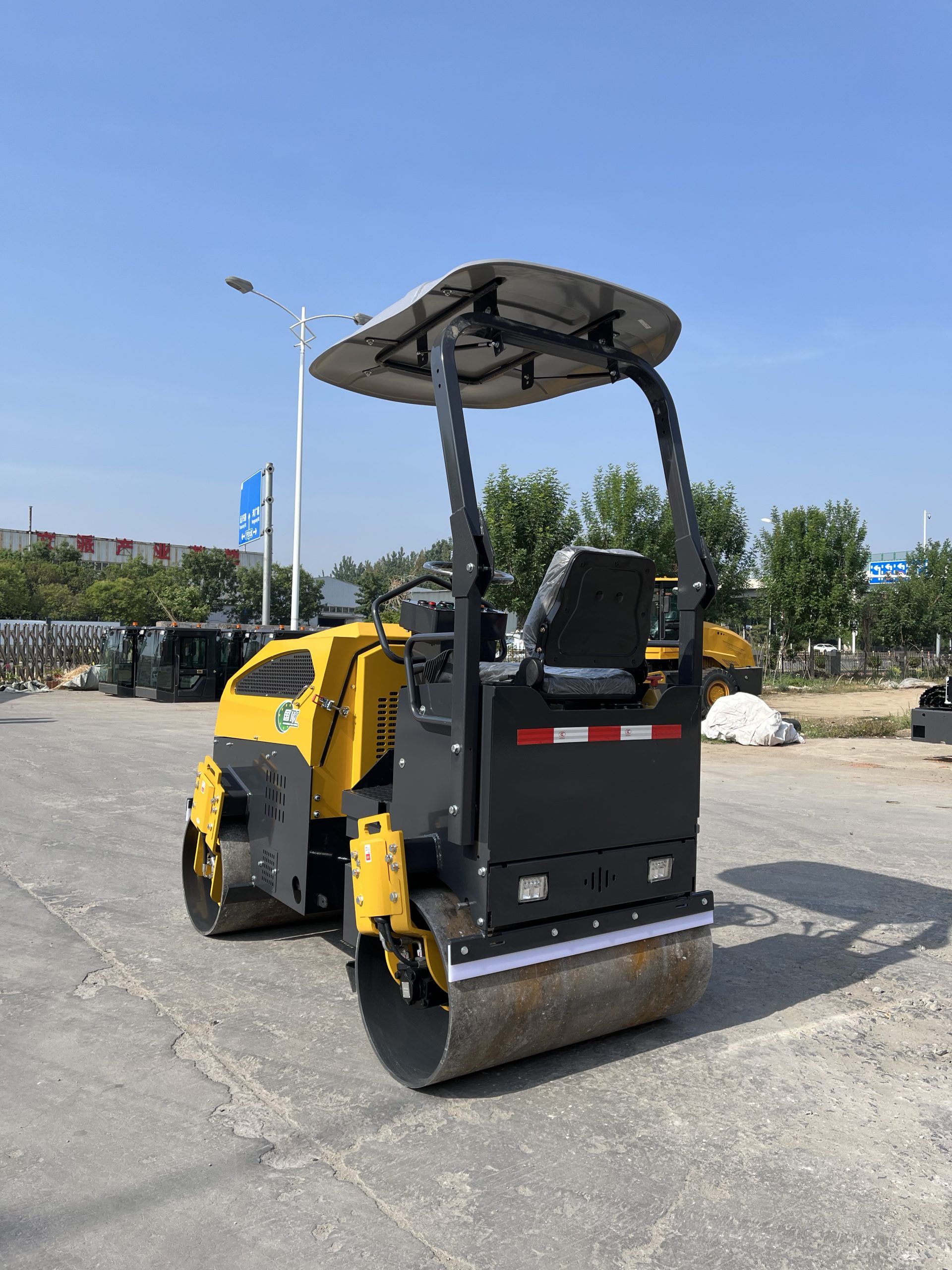

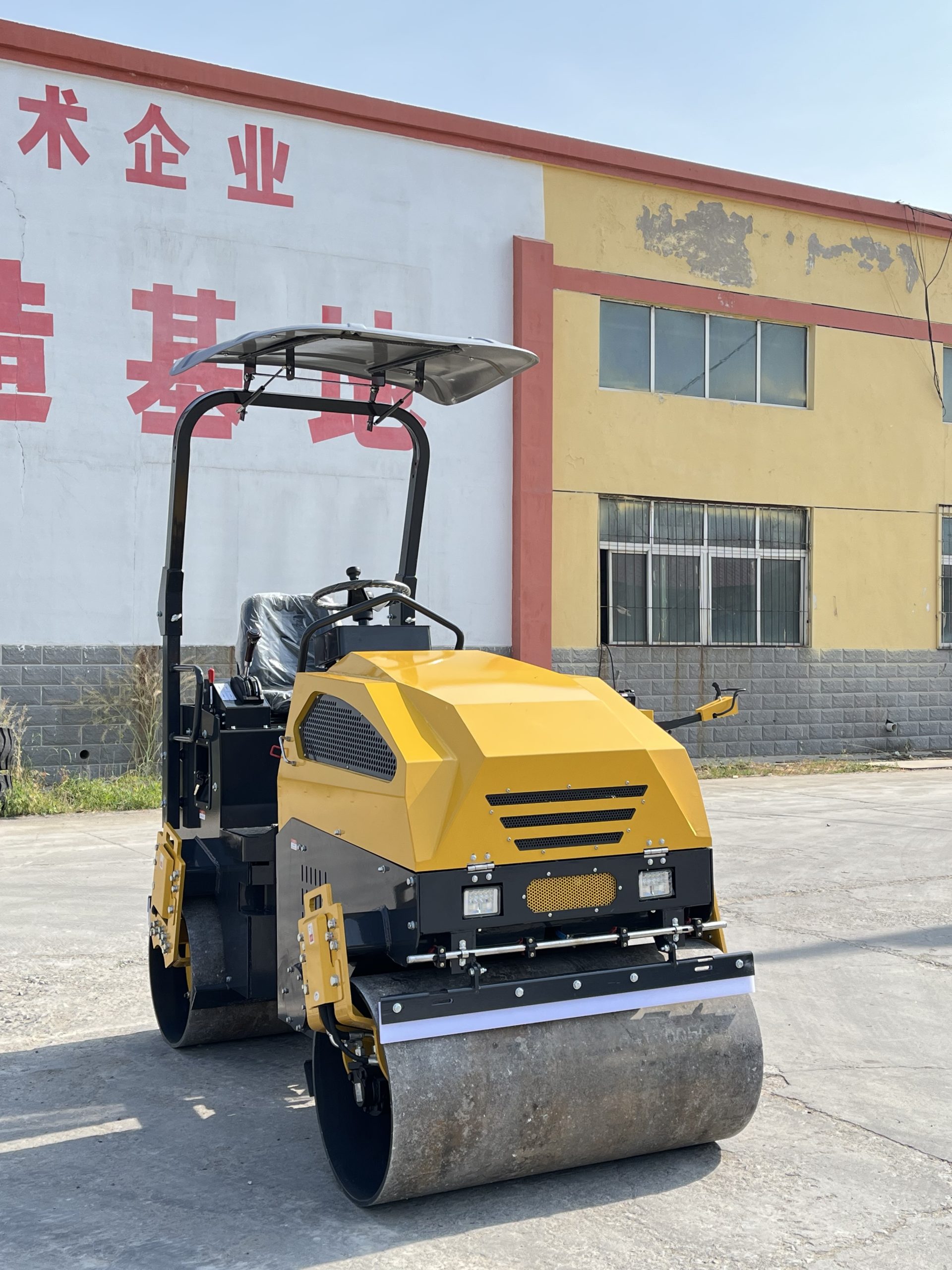

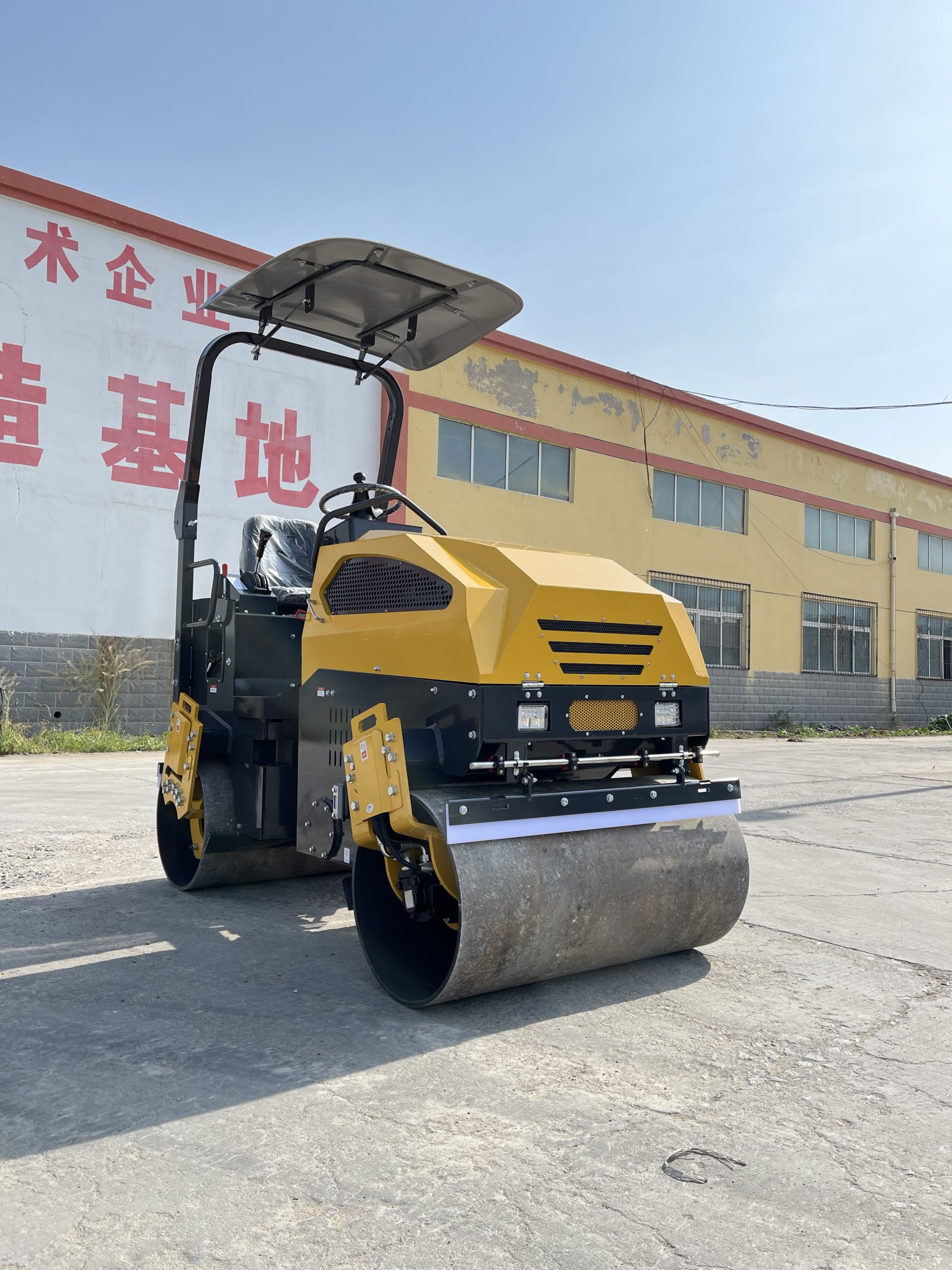

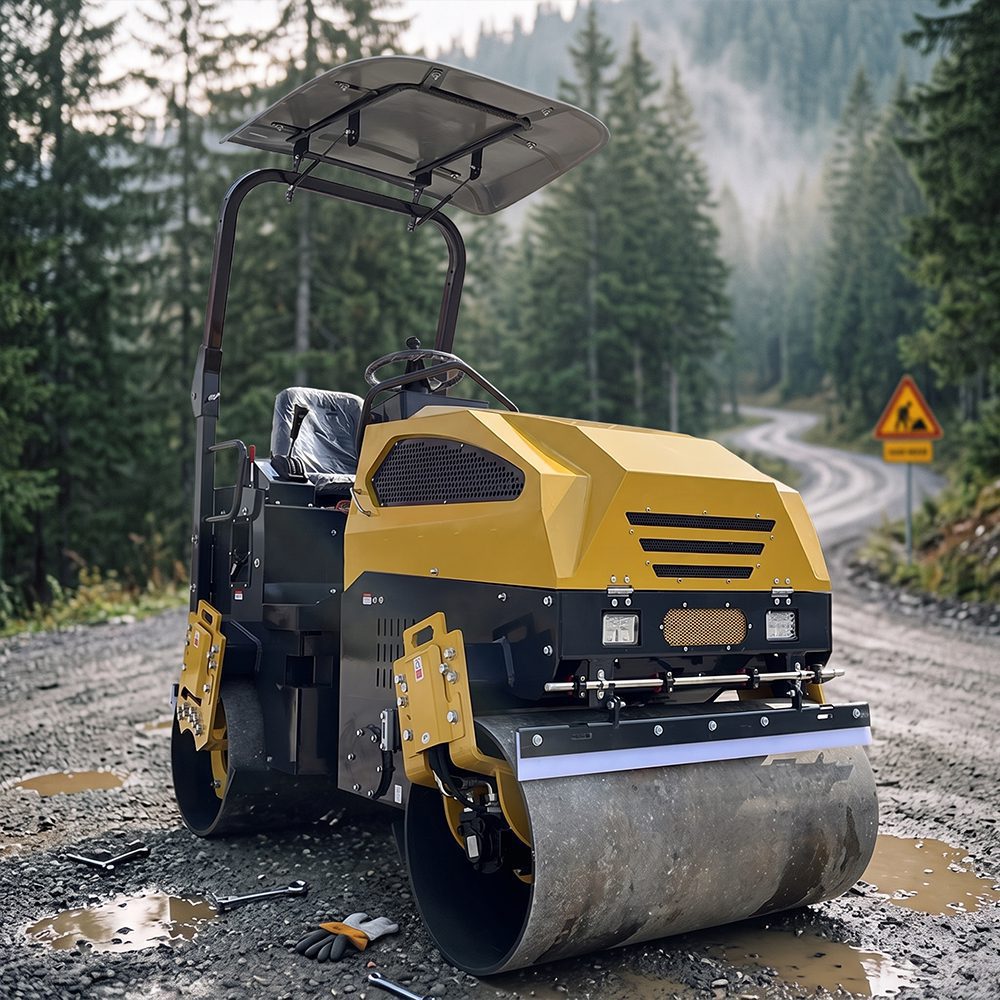

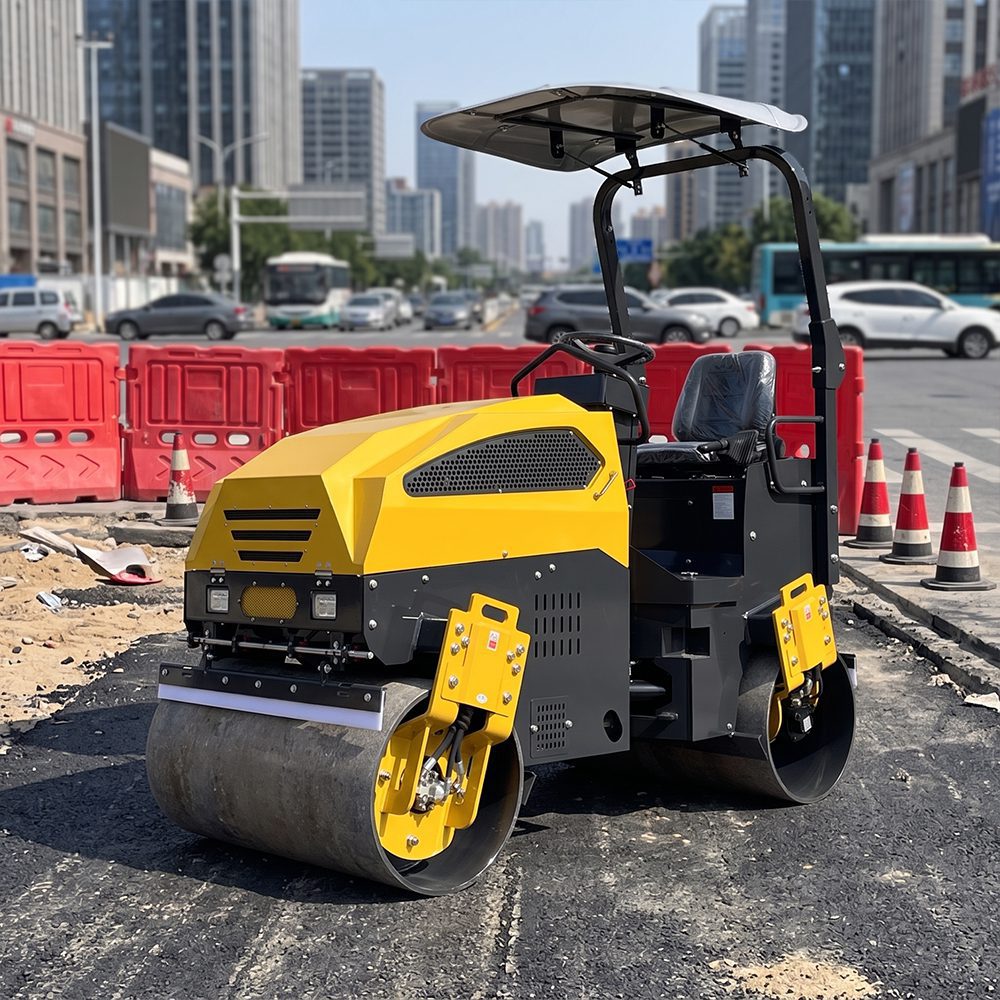

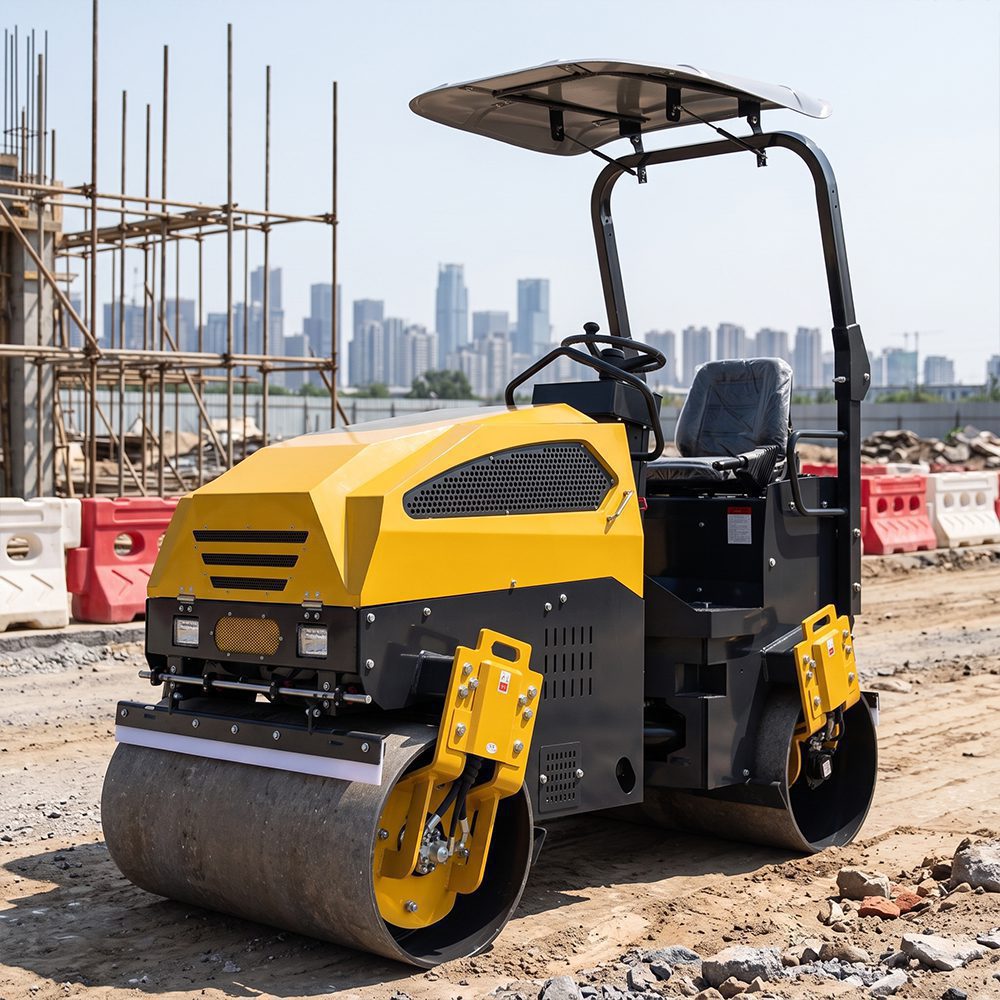

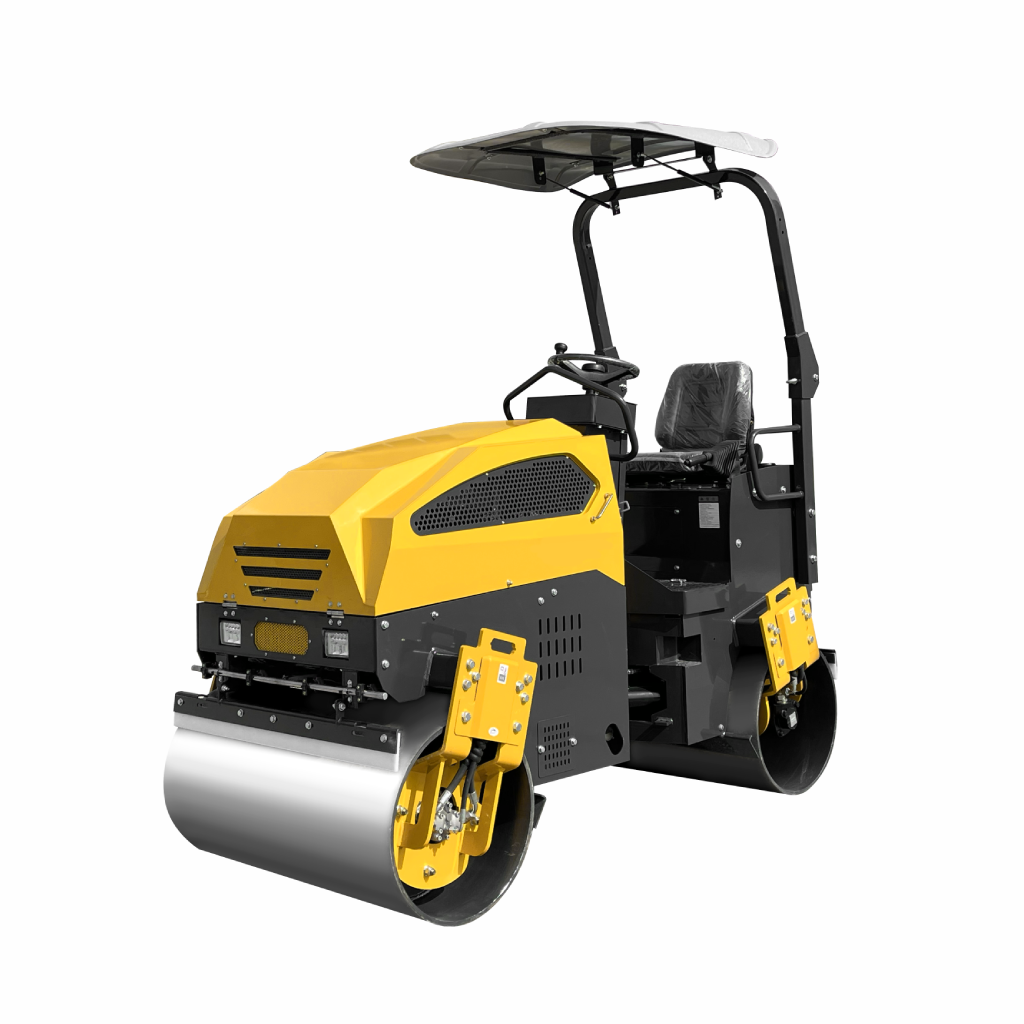

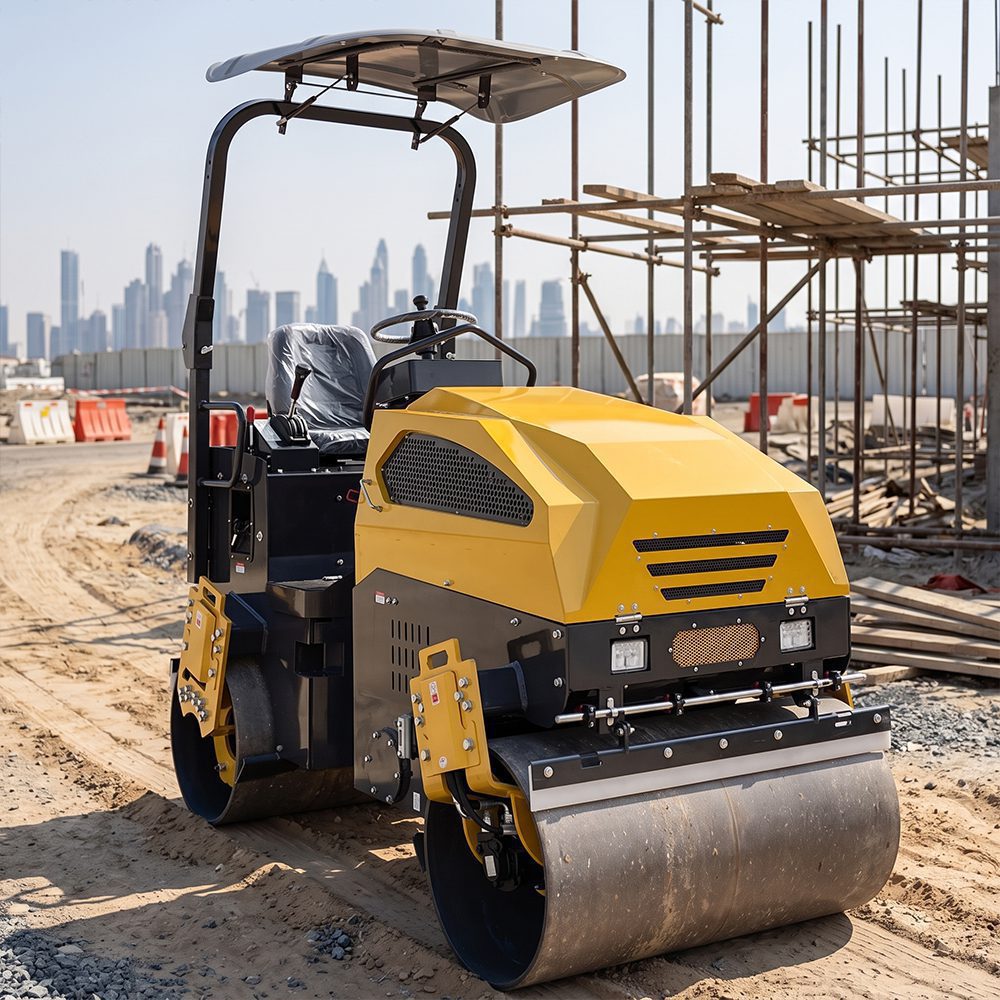

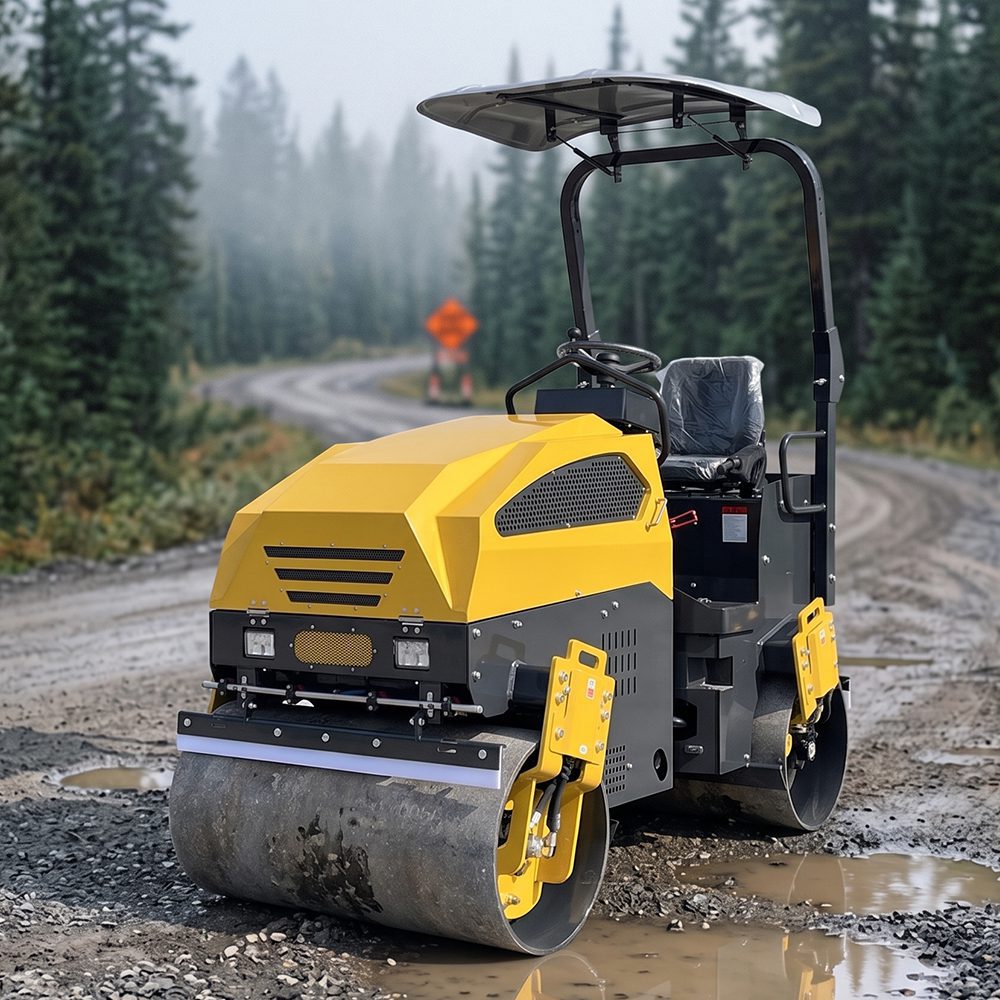

LUXIN LX25JS 2.5-Ton Fully Hydraulic Double Drum Vibratory Roller
Upgraded 2.5-ton (2,500 kg) fully hydraulic double drum vibratory roller powered by a 28 kW (38 hp) V20-38C41 3-cylinder diesel engine. Features hydrostatic stepless drive, hydraulic single drum vibration (35 kN exciting force @ 60 Hz), articulated hydraulic steering, low-sunk front hood design for clear visibility, electronically controlled pressure water spraying, and an 80L hydraulic oil tank. Ideal for road base compaction, asphalt repairs, urban streets, and sports grounds.
Table of Contents
The LUXIN LX25JS is a new-generation 2.5-ton fully hydraulic double drum vibratory roller engineered for high-efficiency compaction and maintenance of general road bases and asphalt surface layers. Driven by a high-output V20-38C41 3-cylinder diesel engine (28 kW / 38 hp @ 2,600 rpm), this roller offers exceptional power, smooth operation, and superior fuel economy across demanding job sites.
Featuring a fully hydraulic drive with stepless speed regulation (0–10 km/h) and front-drum hydraulic vibration, the LX25JS produces a powerful 35 kN exciting force at 60 Hz vibration frequency across an 1,100 mm working width. With a redesigned low-sunk front hood for an expansive forward view, articulated hydraulic steering, an electronically controlled pressurized water spray system, and a 70L water tank, it guarantees precise compaction on urban streets, highways, industrial plazas, and water conservancy projects.
Key Features & Upgrades
- Powerful Engine Upgrade (28 kW / 38 hp): Powered by the high-efficiency V20-38C41 3-cylinder diesel engine running at 2,600 rpm for robust output.
- Fully Hydraulic Drive & Stepless Speed Control: Hydrostatic transmission system allows smooth, infinitely variable travel speed control (0–10 km/h).
- Low-Sunk Front Hood Design: Sleek engine hood profile provides an unhindered, wide field of view for enhanced site safety and convenient engine maintenance.
- Front Hydraulic Single Vibration System: Delivers 35 kN exciting force with 0.6 mm amplitude for rapid consolidation of asphalt overlays and aggregate bases.
- Articulated Hydraulic Steering: Small turning radius (2,630 mm) combined with an articulated frame structure ensures lightweight and flexible maneuvering in confined zones.
- Electronically Controlled Pressure Water Spray: High-efficiency water delivery system (70 L water tank capacity) prevents hot asphalt material from sticking to the drum.
- High Gradeability (30°): Superior climbing performance allows confident operation on sloped site profiles and embankments.
Recommended Applications
- Asphalt Paving & Surface Repair: Patching, resurfacing, and finishing urban roads, inter-city highways, and rural pavements.
- Municipal Streets & Utility Trenching: Utility line backfilling, sidewalk construction, and urban lane maintenance.
- Commercial & Industrial Plazas: Parking bays, commercial yards, factory aprons, and outdoor storage grounds.
- Specialized Projects: Water conservancy dikes, sports stadiums, and general earthworks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LX25JS (New Design) |
| Operating Weight | 2,500 kg |
| Static Line Load | 21.9 N/cm |
| Engine Model & Type | V20-38C41 Diesel, 3-Cylinder |
| Rated Power | 28 kW / 38 hp @ 2,600 rpm |
| Drive System | Hydraulic Drive, Stepless Speed Control |
| Vibrating Drum | Front Drum Hydraulic Vibration |
| Exciting Force | 35 kN |
| Vibration Frequency | 60 Hz |
| Nominal Amplitude | 0.6 mm |
| Working / Drum Width | 1,100 mm |
| Steel Drum Diameter | 560 mm |
| Steel Drum Thickness (S) | 12 mm |
| Working Speed | 0–10 km/h |
| Climbing Ability (Gradeability) | 30° |
| Minimum Turning Radius | 2,630 mm |
| Minimum Ground Clearance | 290 mm |
| Wheelbase | 1,740 mm |
| Water Tank Capacity | 70 L |
| Hydraulic Oil Tank Capacity | 80 L |
| Fuel Tank Capacity | 25 L |
Overall Dimensions
- Overall Length (L): 2,400 mm
- Frame Length (L1): 2,300 mm
- Wheelbase (L2): 1,740 mm
- Overall Width (W): 1,220 mm
- Working / Drum Width (W1): 1,100 mm
- Overall Height with ROPS / Canopy (H): 2,440 mm
- Frame / Seat Height (H1): 1,620 mm
- Ground Clearance (H2): 290 mm
- Drum Diameter (D): 560 mm
