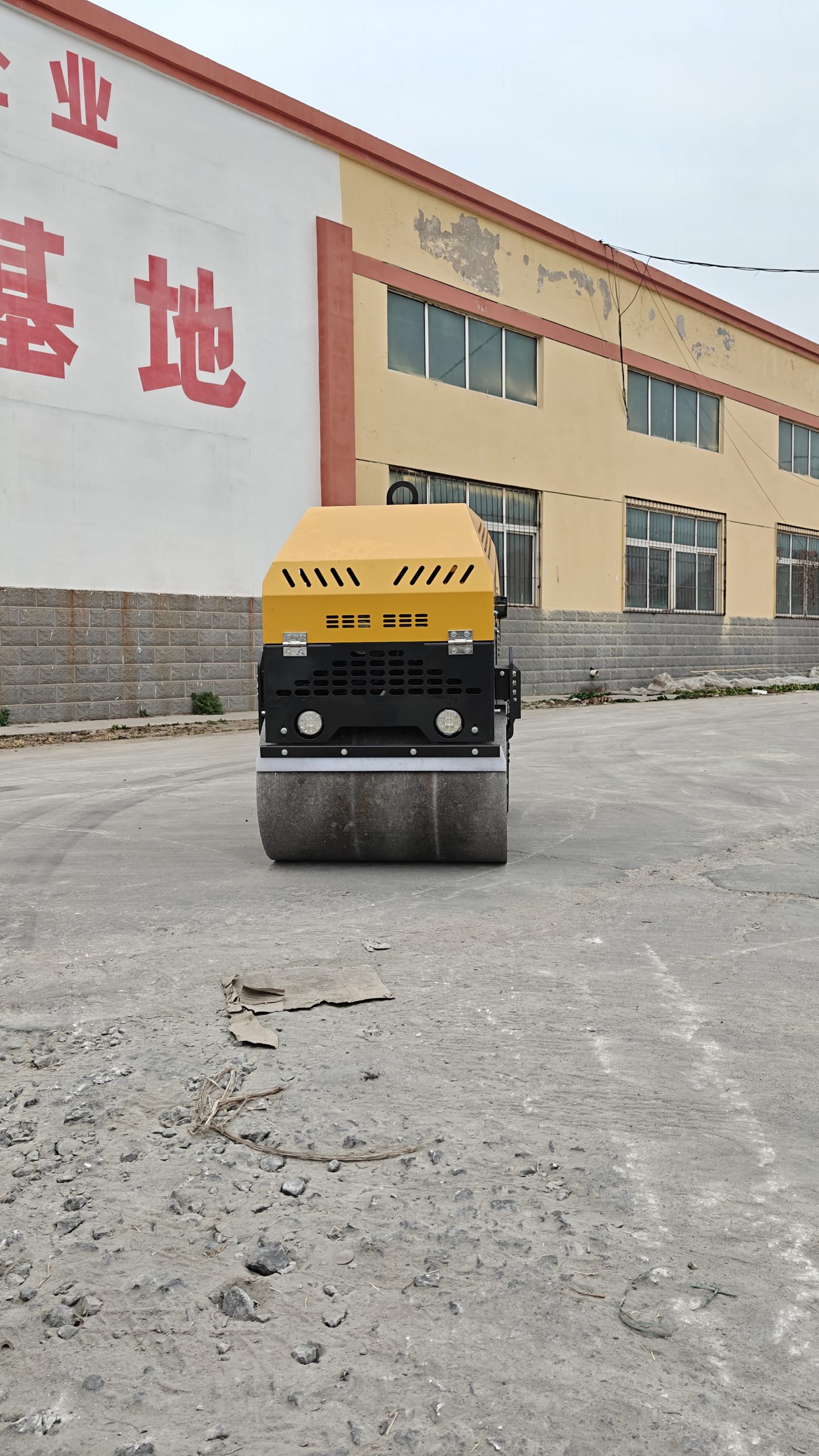

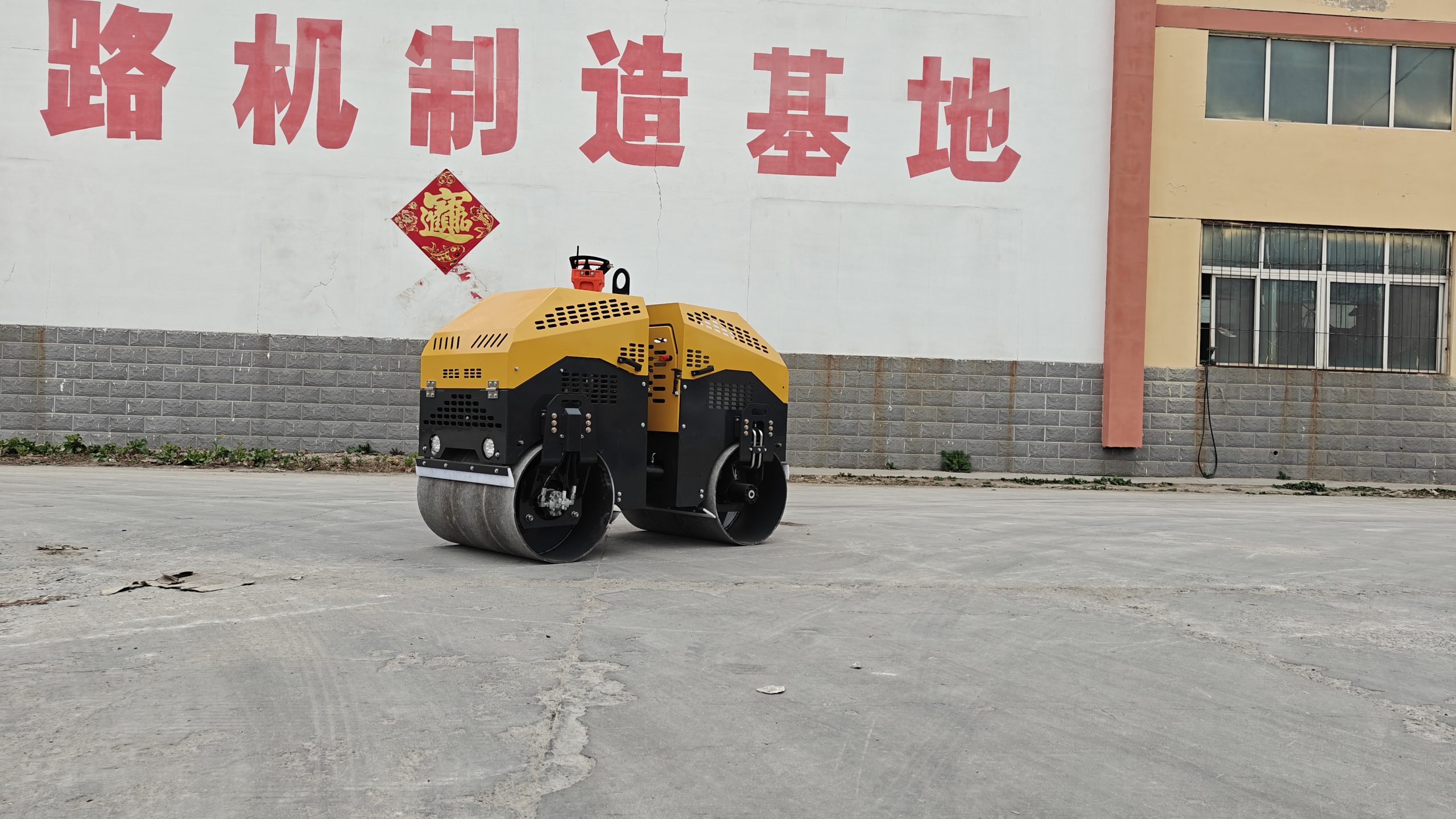

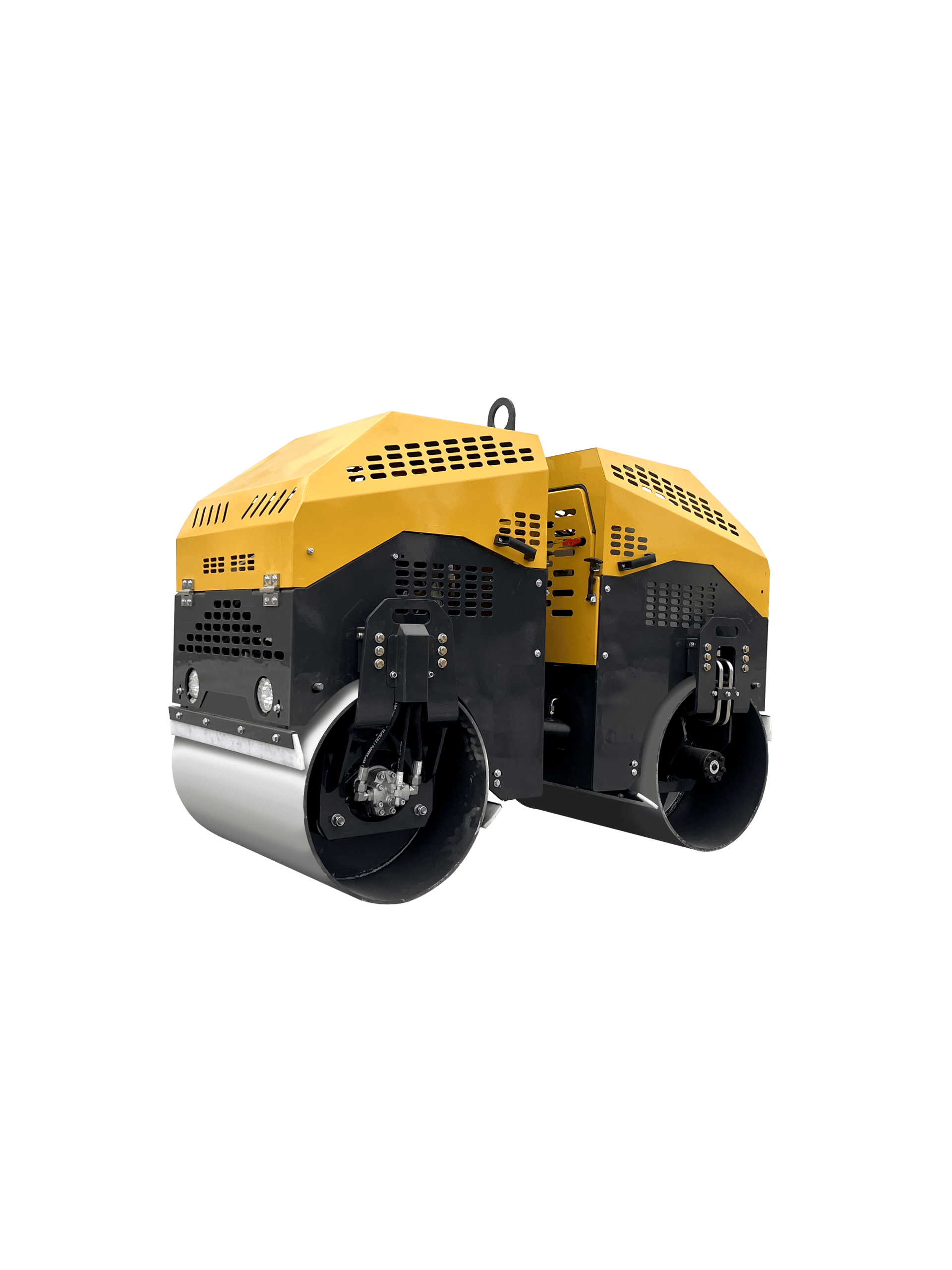

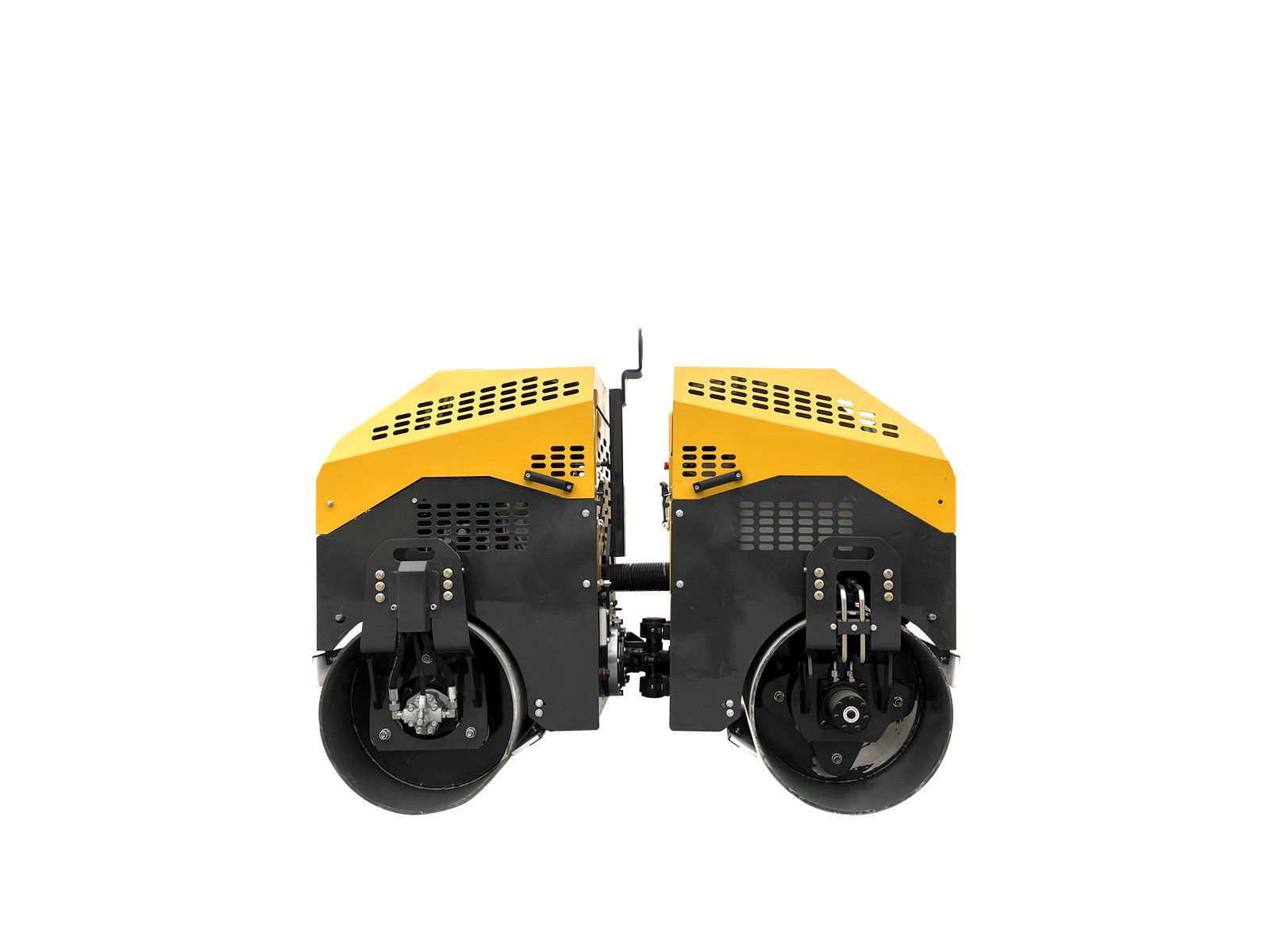

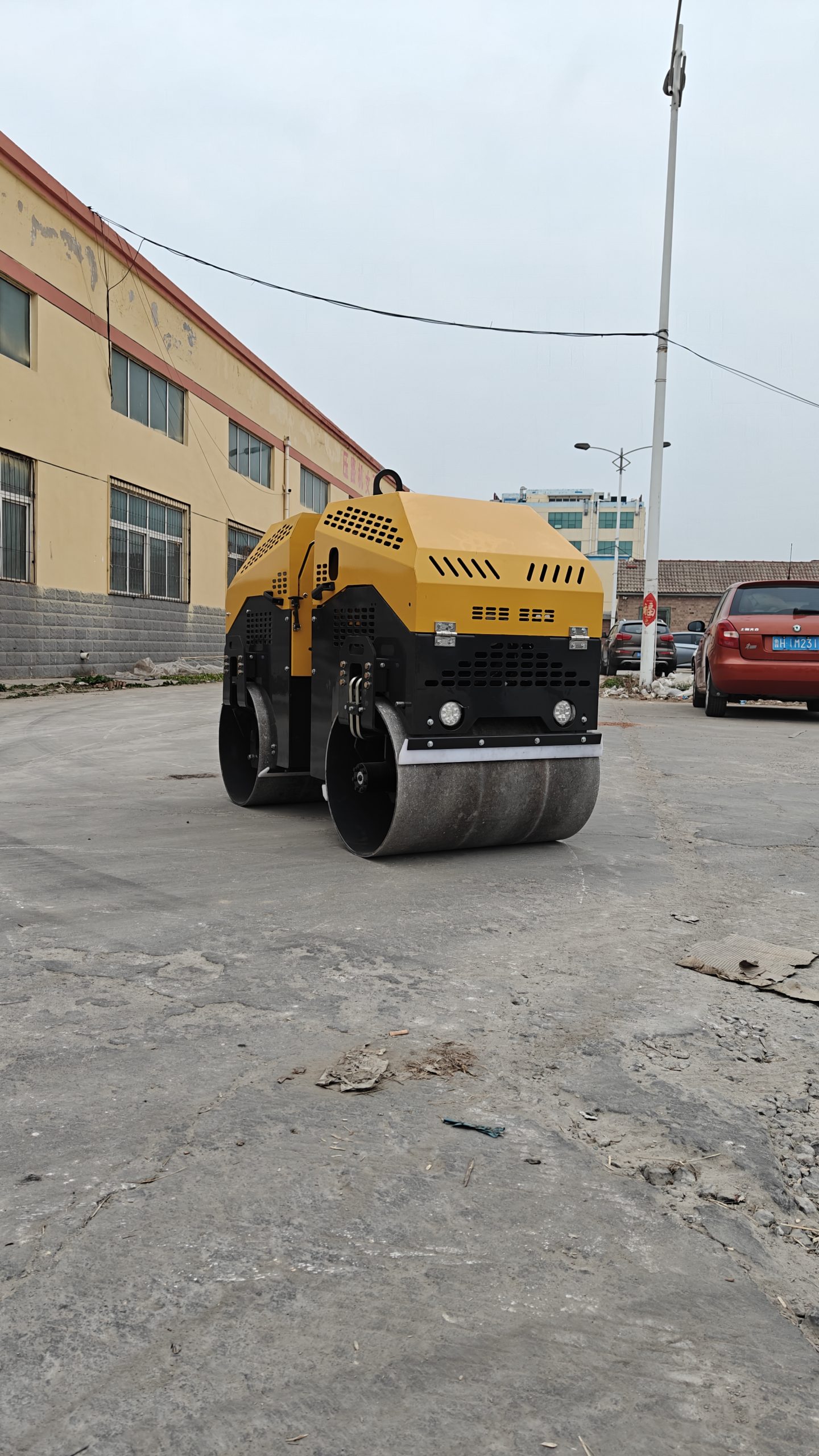

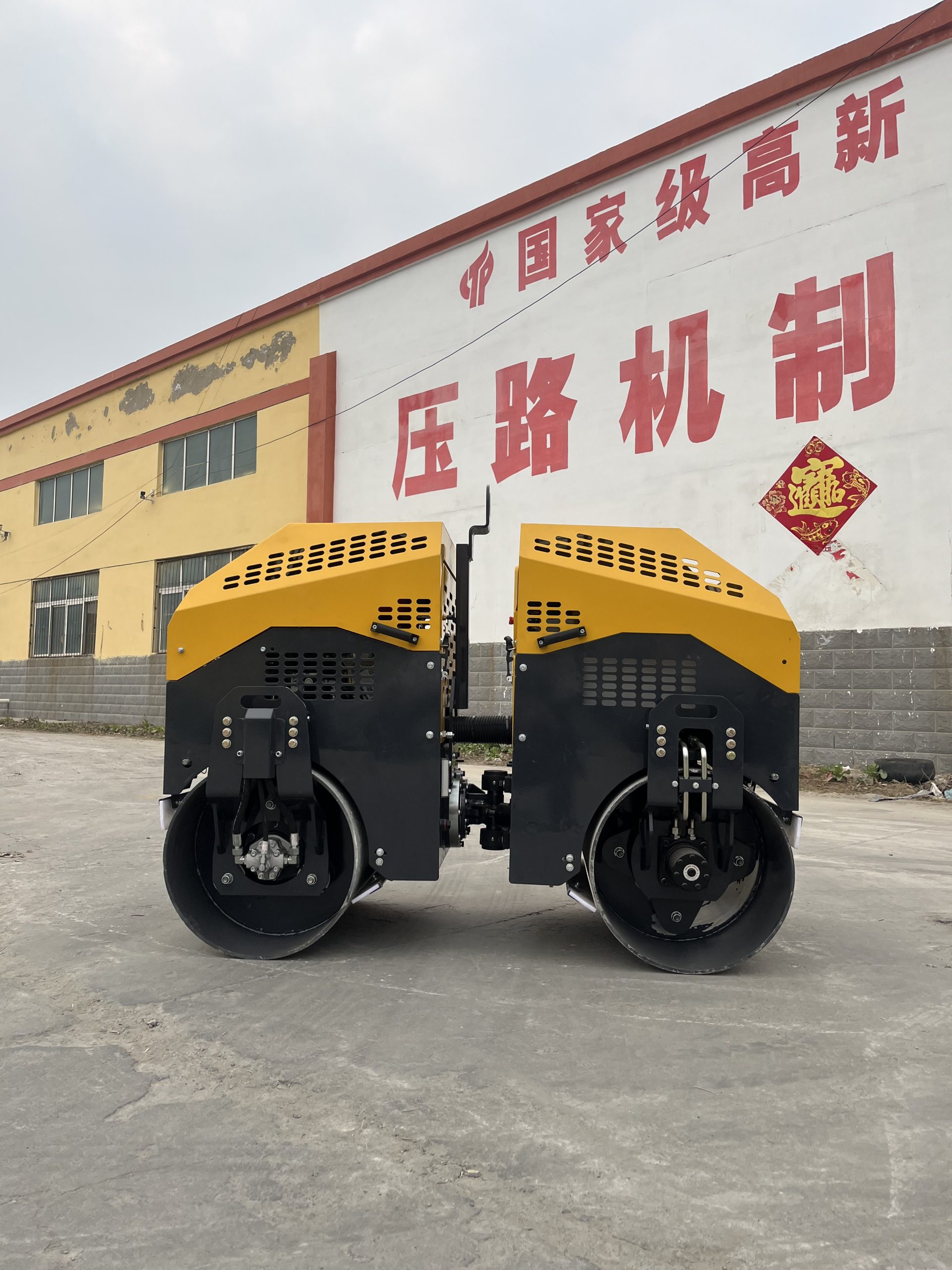

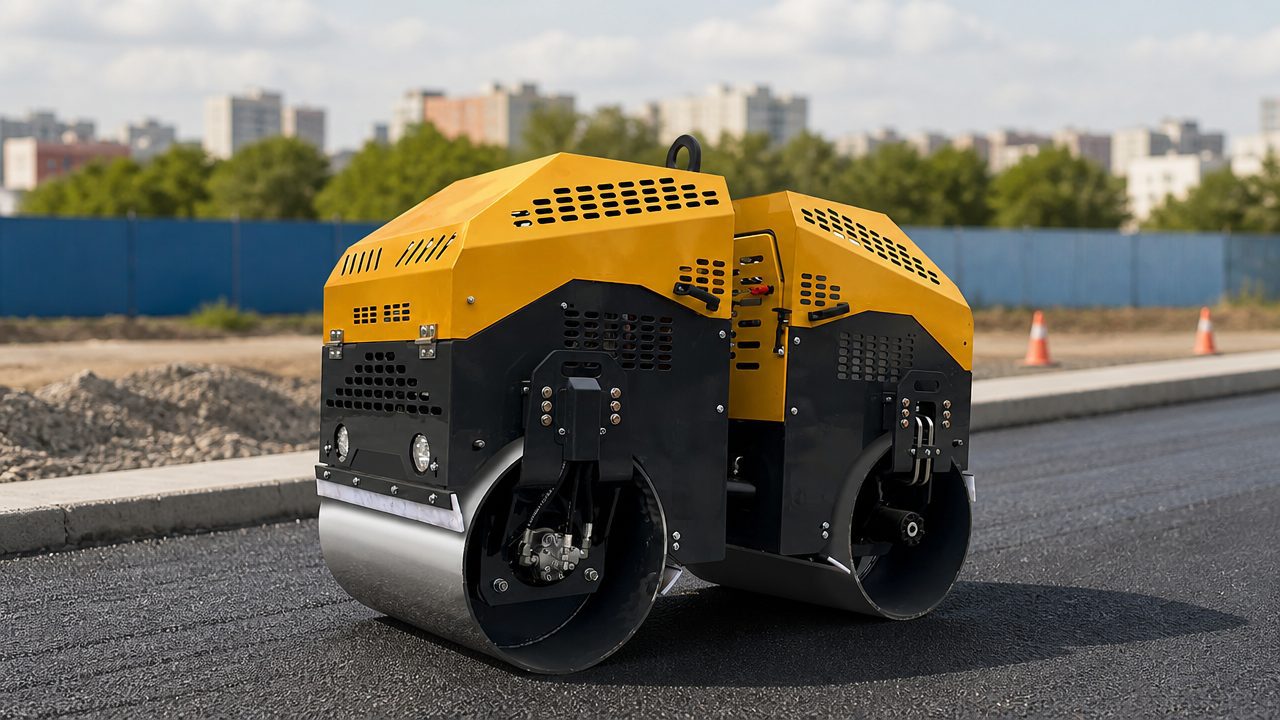

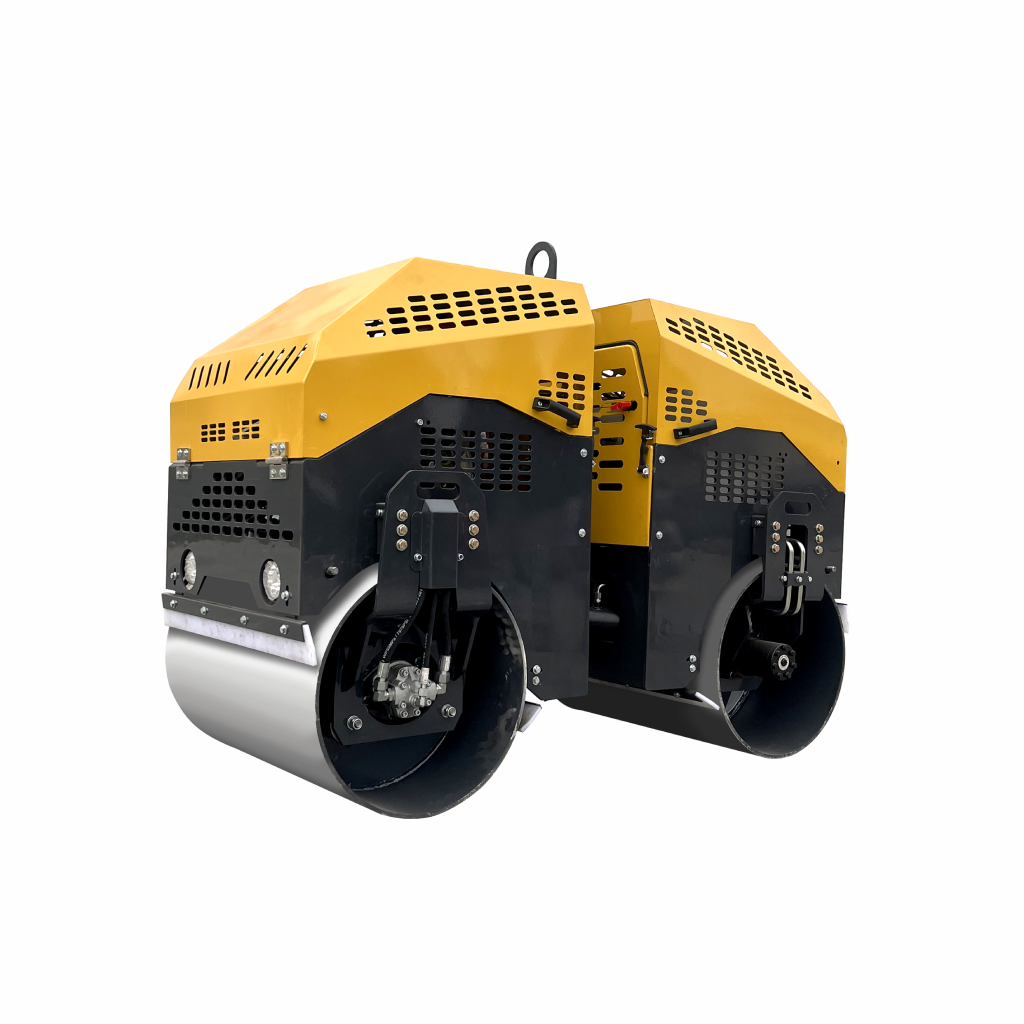

LUXIN LX001JS 1-Ton Remote Control Double Drum Vibratory Roller
Compact 1-ton (1,000 kg) remote-controlled vibratory roller powered by a 7.5 kW (10.2 hp) CC192FA-4J single-cylinder diesel engine. Features full hydraulic remote-control operation (travel, steering, vibration), large-displacement plunger pump for stepless travel speed (0–8 km/h), dual travel motors, 35 kN exciting force at 65 Hz vibration frequency, 800mm working width, tight 1,530 mm turning radius, and a 90L water tank. Engineered for hazardous, narrow, or special working environments such as ditches, underground sites, and slopes.
Table of Contents
The LUXIN LX001JS is an advanced 1-ton remote-controlled double drum vibratory roller designed for maximum operator safety and high-efficiency compaction in narrow, hazardous, or restricted construction environments. Driven by a dependable CC192FA-4J single-cylinder diesel engine (7.5 kW / 10.2 hp @ 3,600 rpm), this machine keeps operators at a safe distance while providing precise, heavy-duty compaction performance.
Featuring full hydraulic remote control for travel, steering, and vibration, the LX001JS utilizes a high-displacement plunger pump driving dual travel motors for smooth, continuously variable speed control (0–8 km/h). Delivering a powerful 35 kN exciting force at 65 Hz frequency across an 800 mm working width, along with rear-wheel steering, a tight 1,530 mm turning radius, 30° gradeability, and a large 90L water tank, it is the optimal choice for ditch backfilling, underground excavations, steep slopes, and rural road building.
Key Features

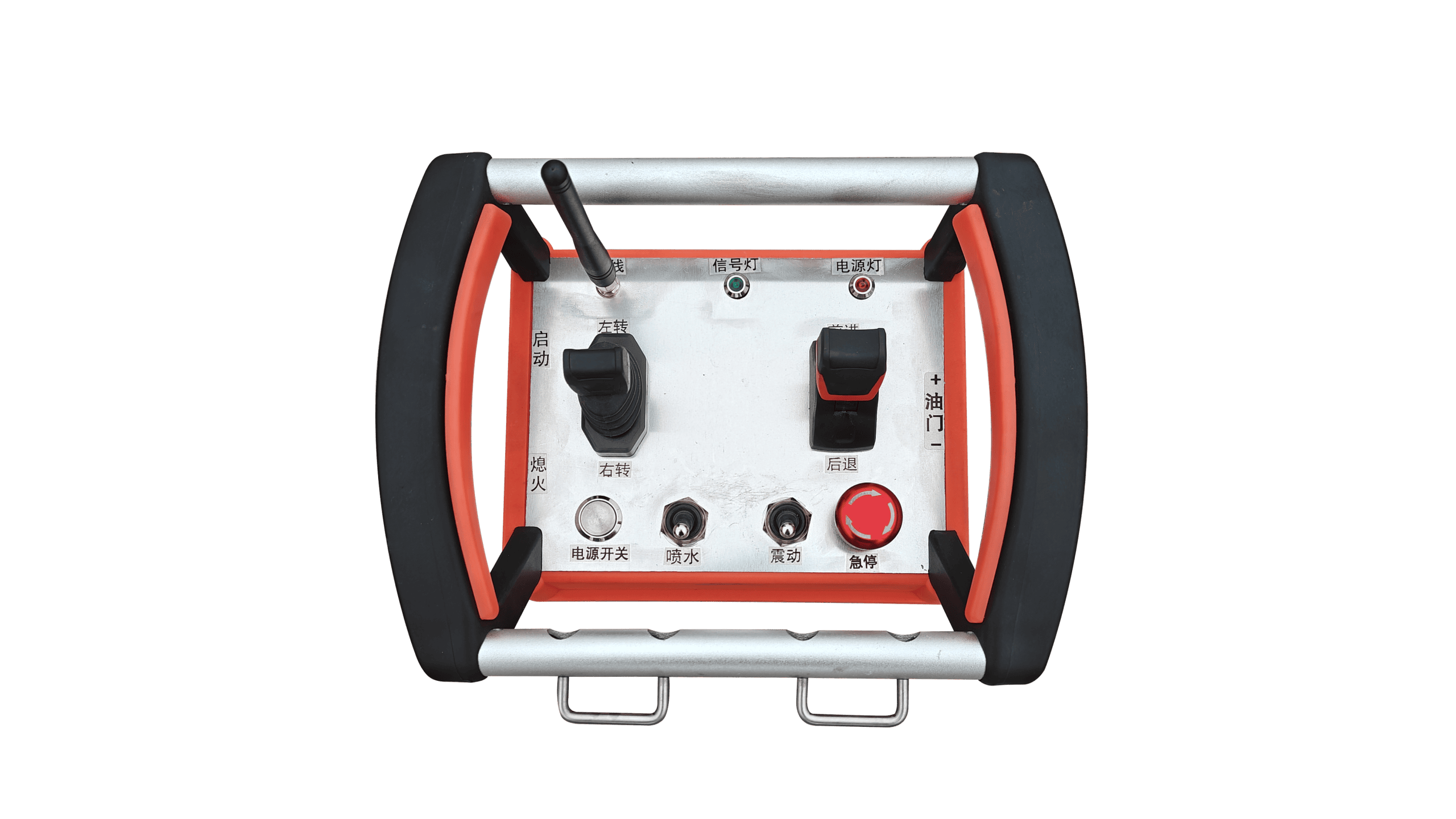

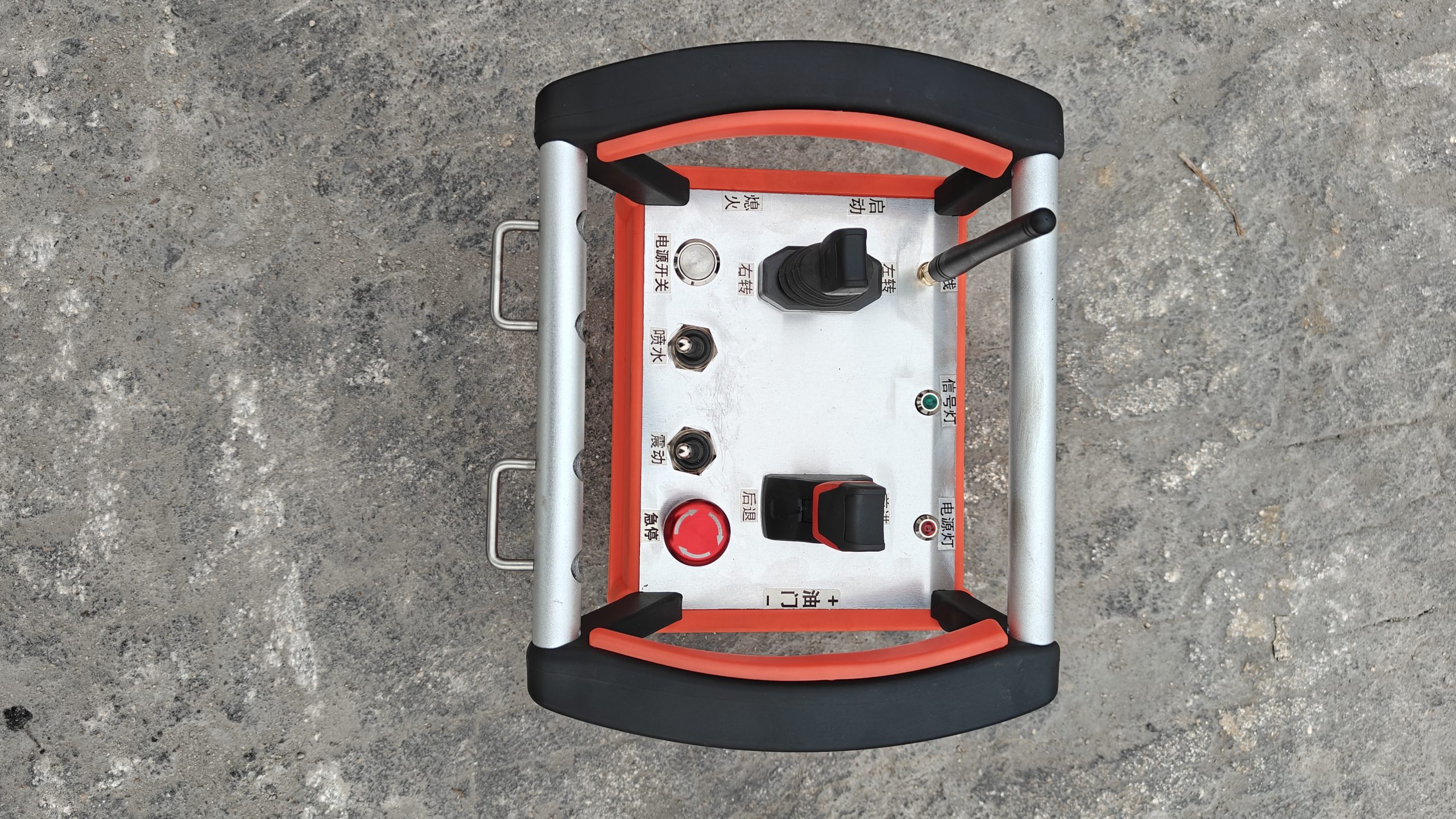

- Full Hydraulic Remote Operation: Complete wireless control of hydraulic travel, rear-wheel steering, and front drum vibration ensures maximum operator safety in hazardous or unstable zones.
- Plunger Pump & Dual-Motor Drive: Powered by a large-displacement plunger pump driving dual motors for smooth, stepless speed regulation (0–8 km/h).
- Vibration Speed Stabilization Button: Features a dedicated vibration motor speed stabilization control for consistent compaction energy output.
- High Compaction Energy (35 kN @ 65 Hz): Delivers 35 kN exciting force with 0.5 mm amplitude across an 800 mm compaction width.
- Small Operating Radius & Rear Steering: Designed for extreme maneuverability in tight spaces with a 1,530 mm turning radius and rear-wheel steering configuration[cite: 17, 18].
- Large Water Tank Capacity (90 L): Integrated 90 L water tank allows long continuous operation during asphalt patching and base compaction.
Recommended Applications
- Ditch & Trench Backfilling: Compact design easily enters and operates inside deep utility trenches, pipeline excavations, and ditch beds.
- Underground & Restricted Space Operations: Ideal for subterranean utility tunnels, basement foundations, and narrow alleyways.
- Special & Hazardous Environments: Steep canal banks, railway embankments, and hazardous slopes where ride-on equipment poses safety risks.
- Municipal Road Corners & Rural Construction: Urban street repairs, road corner paving, sidewalk construction, and rural infrastructure.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LX001JS |
| Control System | Full Hydraulic Wireless Remote Control |
| Operating Weight | 1,000 kg |
| Static Line Load | 70 / 60 N/cm |
| Engine Model & Type | CC192FA-4J Diesel, Single-Cylinder |
| Rated Power | 7.5 kW / 10.2 hp @ 3,600 rpm |
| Drive System | Plunger Pump, Dual Motor Drive, Hydrostatic Stepless |
| Steering System | Hydraulic Rear Wheel Steering |
| Exciting Force | 35 kN |
| Vibration Frequency | 65 Hz |
| Nominal Amplitude | 0.5 mm |
| Working / Drum Width (W) | 800 mm |
| Steel Drum Diameter (D) | 400 mm / 500 mm |
| Vibrating Drum | Front Steel Drum |
| Working Speed | 0–8 km/h |
| Climbing Ability (Gradeability) | 30° |
| Minimum Turning Radius | 1,530 mm |
| Minimum Ground Clearance (S) | 205 mm |
| Wheelbase (L1) | 1,167 mm |
| Water Tank Capacity | 90 L |
| Hydraulic Oil / Fuel Tank | 22 L / 5.5 L |
Overall Dimensions
- Overall Length (L): 1,740 mm
- Wheelbase (L1): 1,167 mm[cite: 18]
- Overall Width / Drum Width (W): 800 mm[cite: 18]
- Overall Height (H): 1,313 mm[cite: 18]
- Ground Clearance (S): 205 mm[cite: 18]
- Steel Drum Diameter (D): 400 mm[cite: 18]
