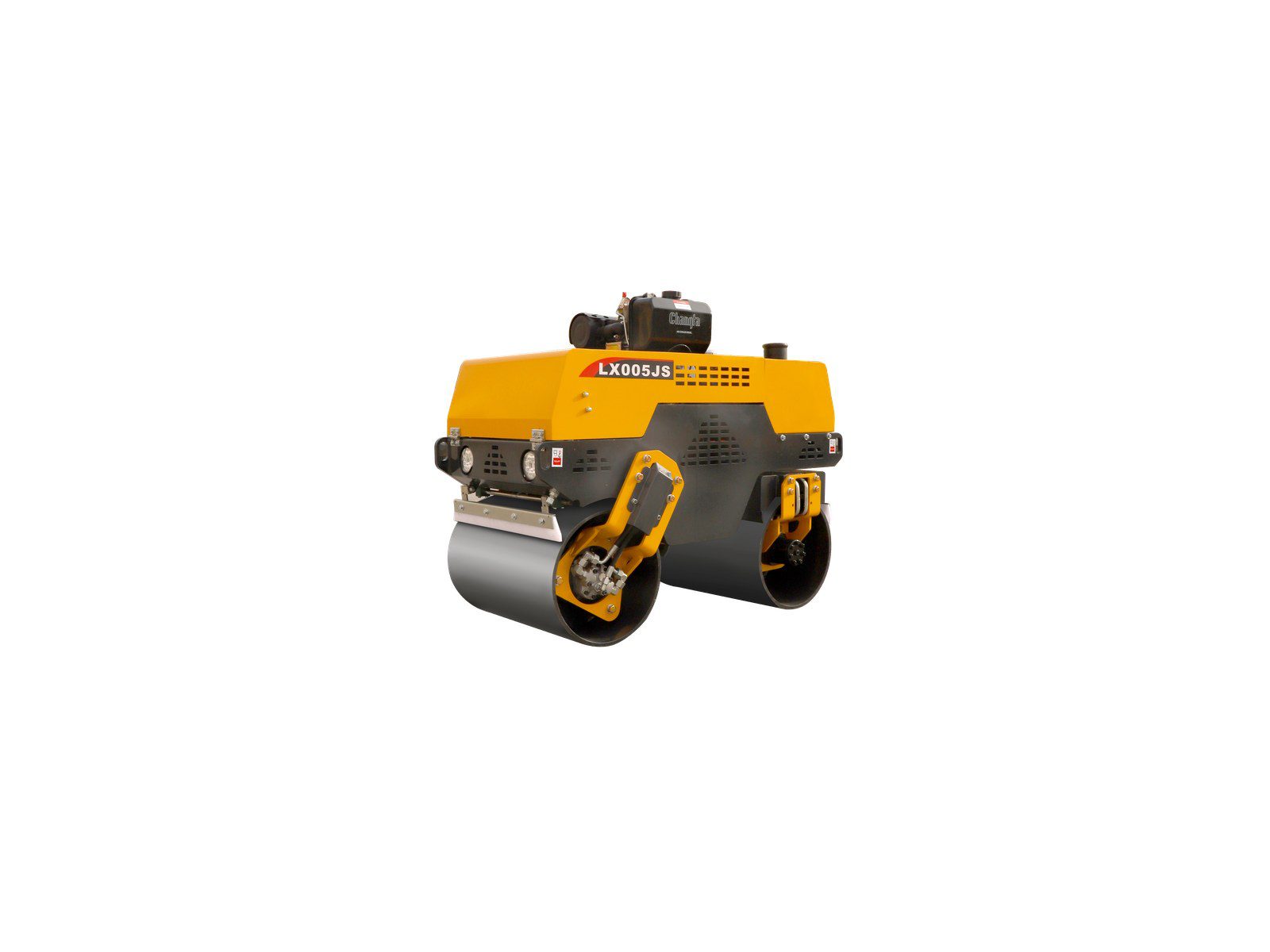

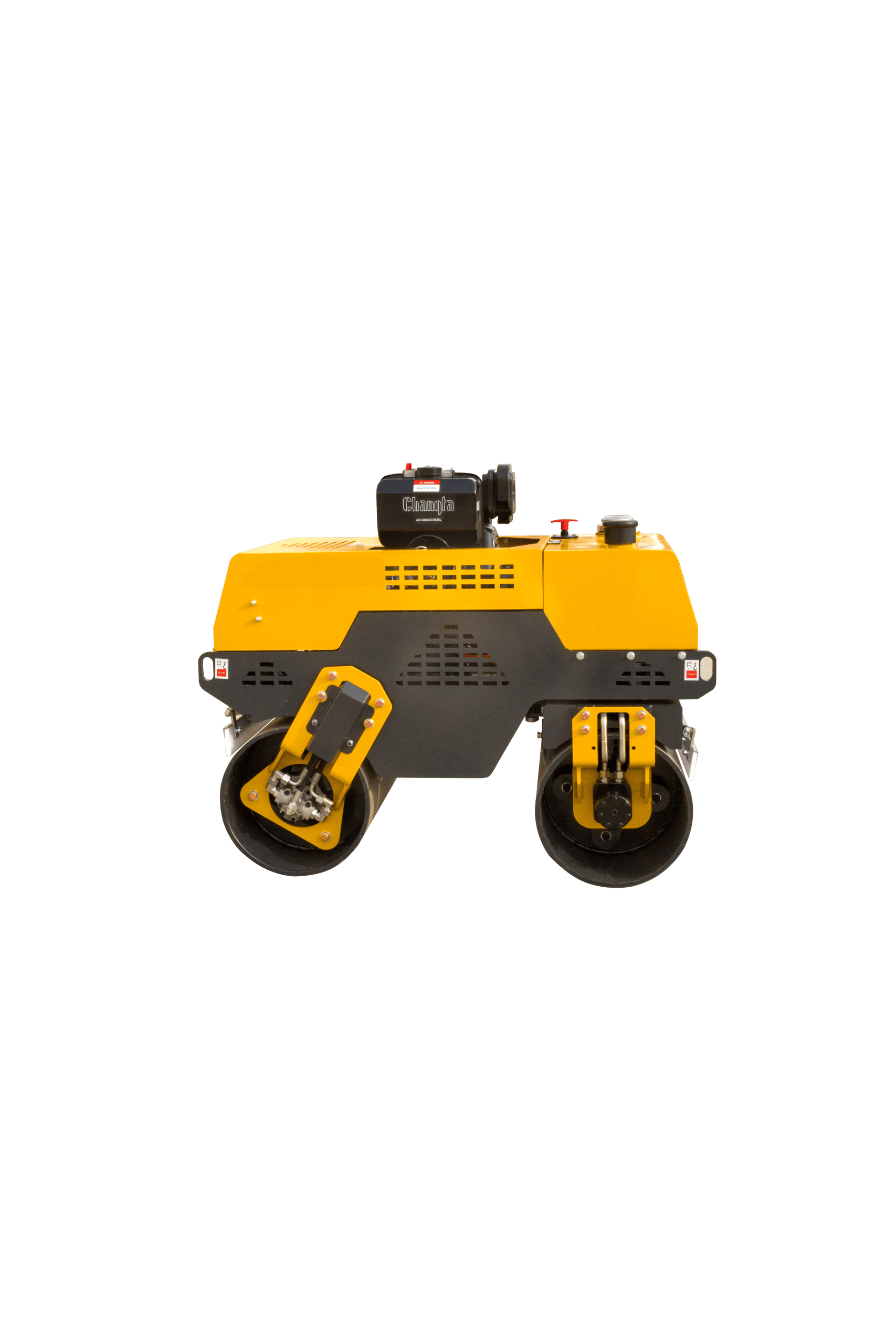

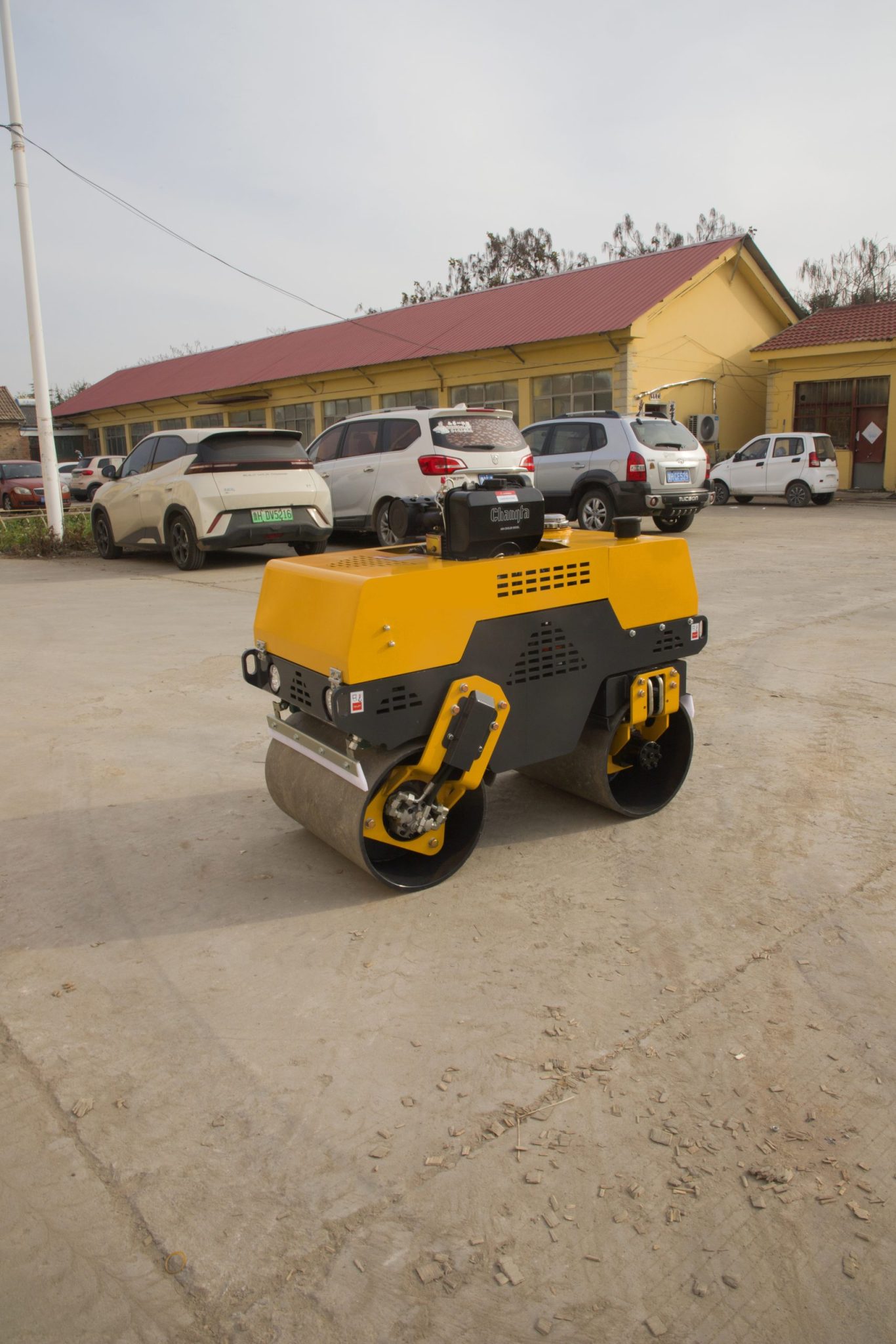

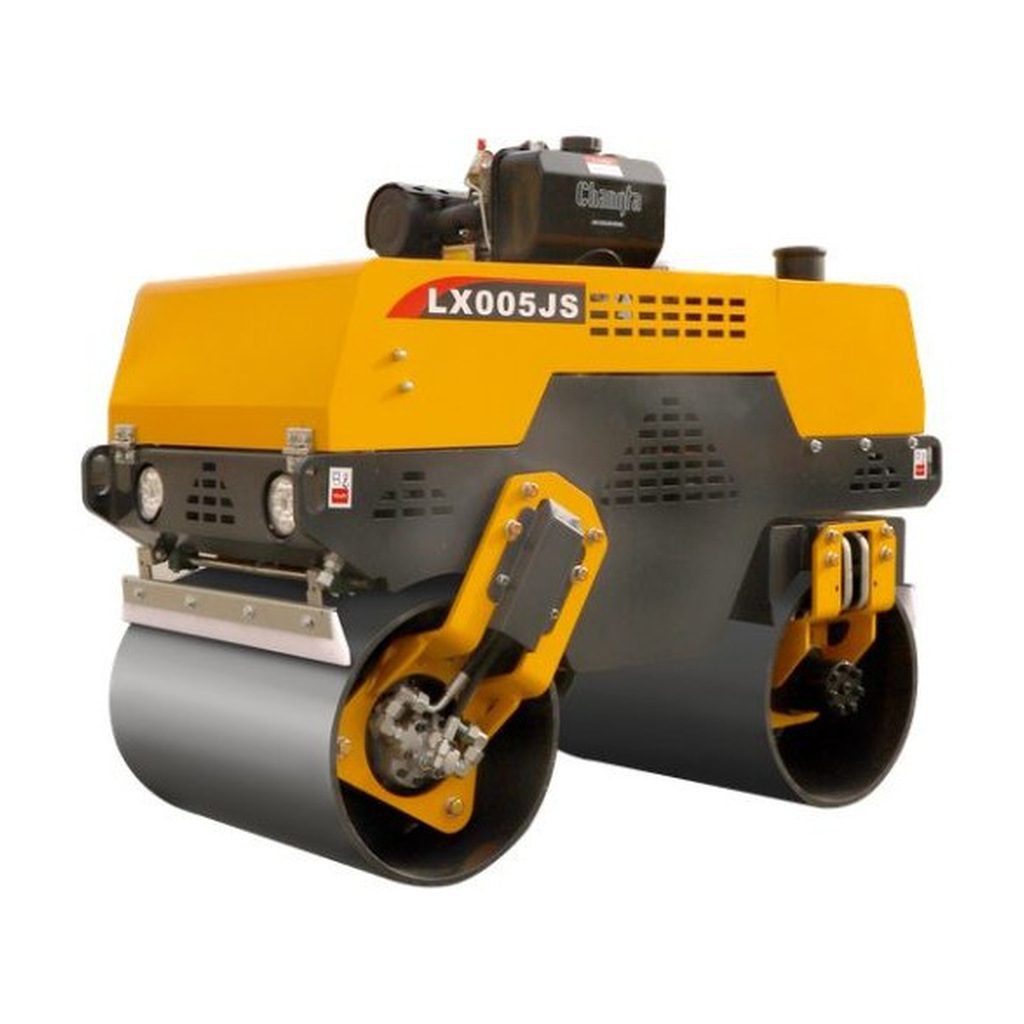

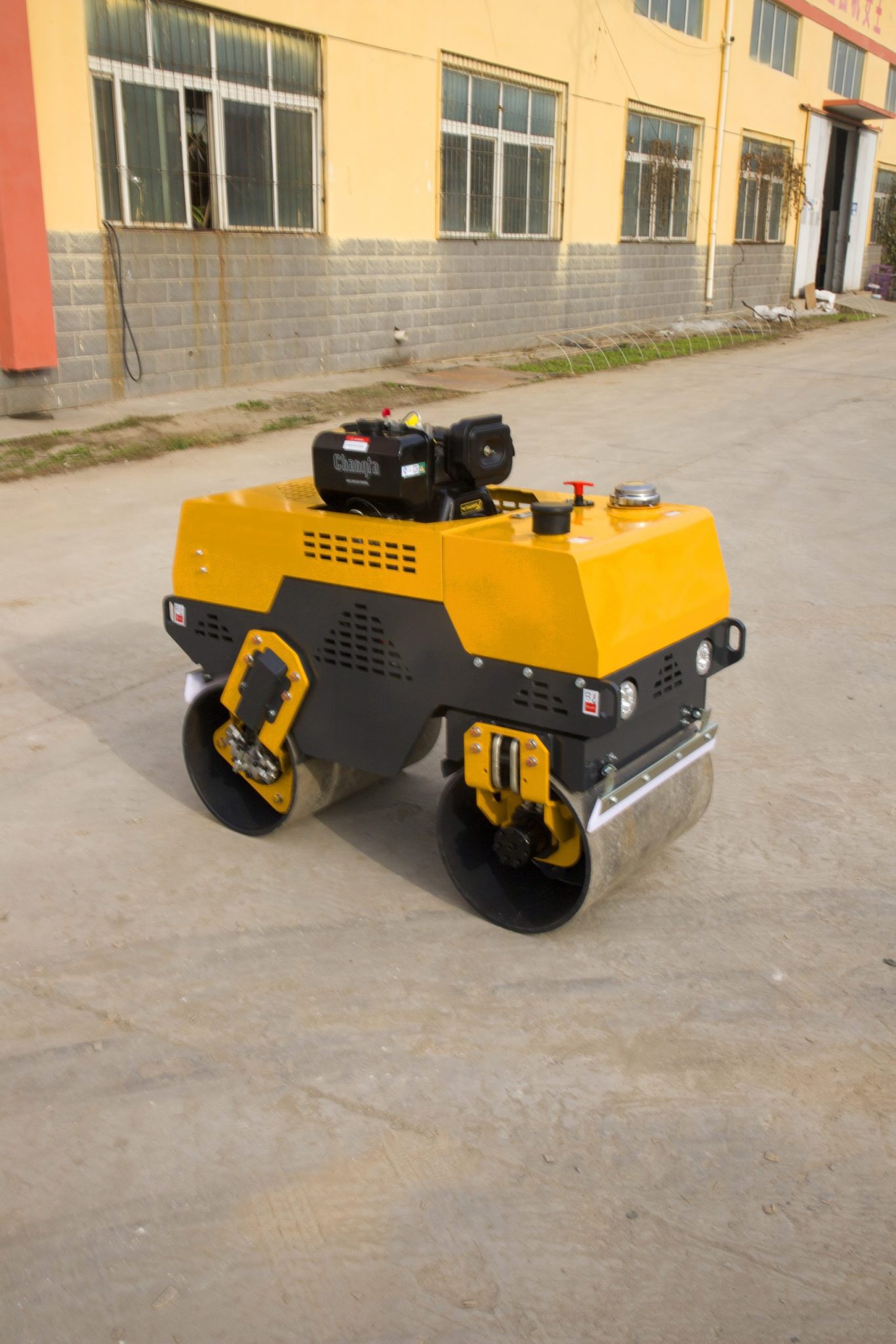

LUXIN LX800JS 0.8-Ton Remote Control Double Drum Vibratory Roller

The LUXIN LX800JS is an advanced 0.8-ton remote-controlled double drum vibratory roller designed for maximum operator safety and high-efficiency compaction in narrow, hazardous, or restricted construction environments. Driven by a dependable CF188 single-cylinder diesel engine (6.3 kW / 8.5 hp @ 3,600 rpm), this machine keeps operators at a safe distance while providing precise, heavy-duty compaction performance.

Featuring full hydraulic remote control for travel, steering, and vibration, the LX800JS utilizes a large-displacement plunger pump driving dual travel motors for smooth, continuously variable speed control (0–4 km/h). Delivering a powerful 15 kN exciting force at 70 Hz vibration frequency across front and rear vibrating drums with a 600 mm working width (675 mm total width), along with rear-wheel steering, a 2,200 mm turning radius, 30° gradeability, and a 17.6 L water tank, it is the optimal choice for ditch backfilling, underground excavations, steep slopes, and rural construction.

Key Features

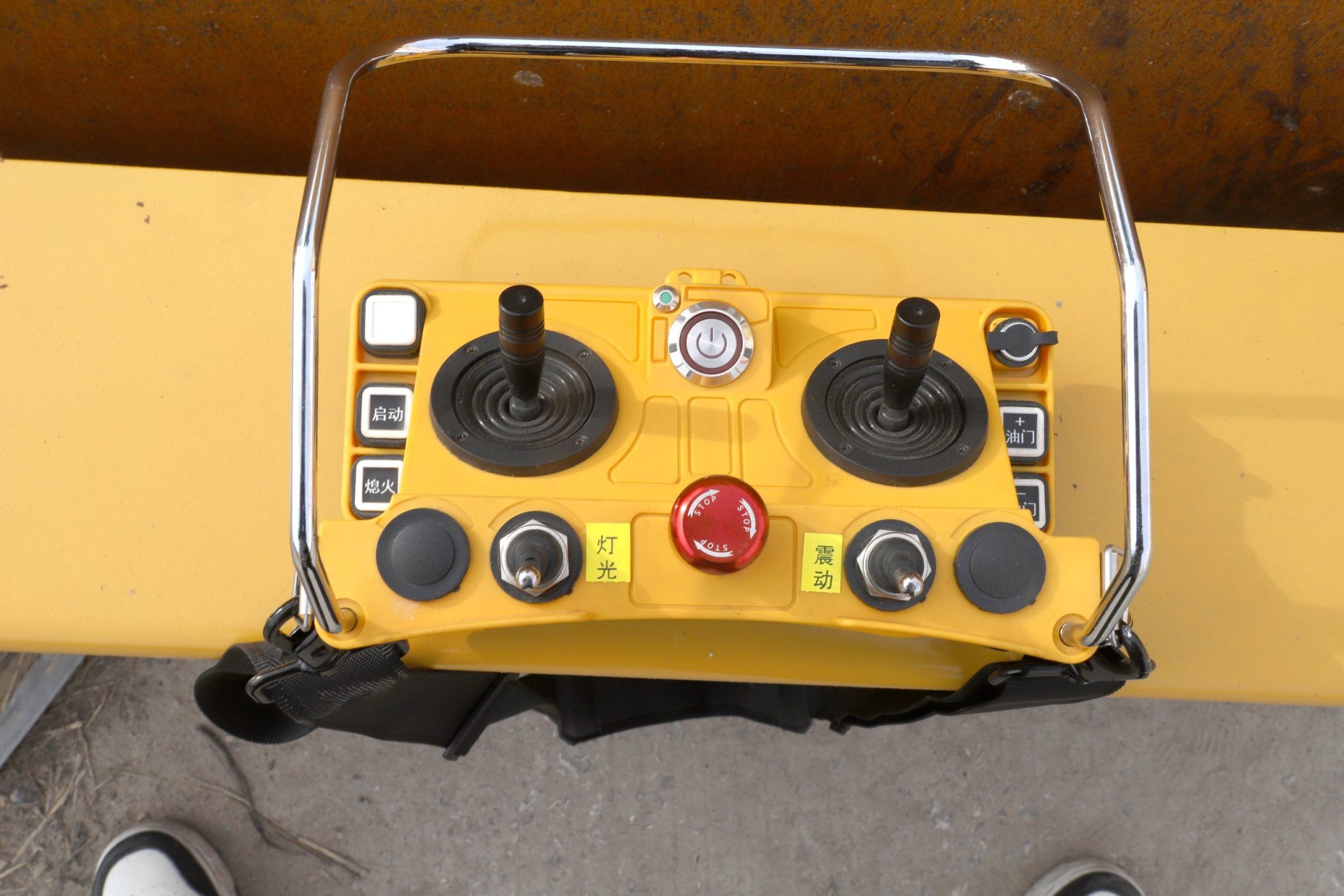

• Full Hydraulic Remote Operation: Complete wireless control of hydraulic travel, rear-wheel steering, and front/rear drum vibration ensures maximum operator safety in hazardous or unstable zones.
• Plunger Pump & Dual-Motor Drive: Powered by a large-displacement plunger pump driving dual motors for smooth, stepless speed regulation (0–4 km/h).
• Vibration Speed Stabilization Button: Features a dedicated vibration motor speed stabilization control for consistent compaction energy output.
• Front & Rear Dual Drum Vibration: Simultaneous front and rear drum vibration delivers high compaction density across a 600 mm working width.
• Small Operating Radius & Rear Steering: Designed for extreme maneuverability in tight spaces with a 2,200 mm turning radius and rear-wheel steering configuration.
• Compact Profile & High Ground Clearance: Features a low overall height (1,075 mm) and 300 mm ground clearance for flexible operation inside deep trenches and tunnels.

Recommended Applications

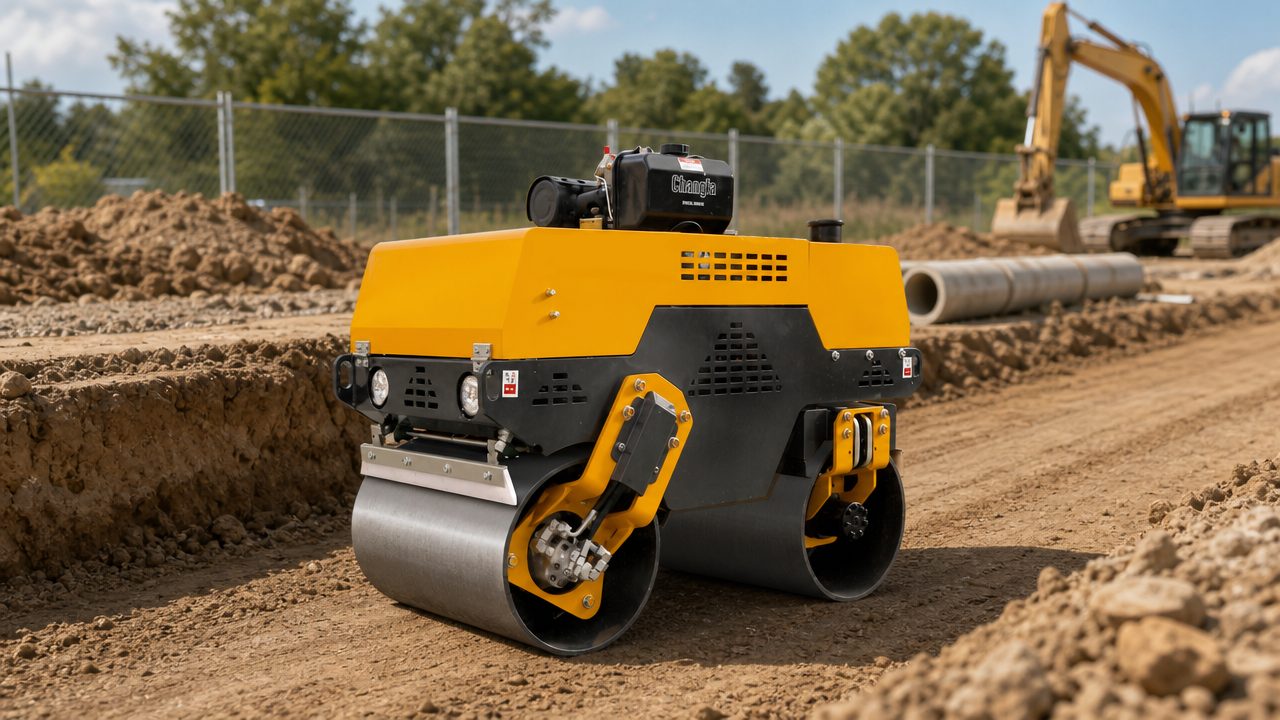

• Ditch & Trench Backfilling: Compact design easily enters and operates inside deep utility trenches, pipeline excavations, and ditch beds.
• Underground & Restricted Space Operations: Ideal for subterranean utility tunnels, basement foundations, and narrow alleyways.
• Special & Hazardous Environments: Steep canal banks, railway embankments, and hazardous slopes where ride-on equipment poses safety risks.
• Municipal Road Corners & Rural Construction: Urban street repairs, road corner paving, sidewalk construction, and rural infrastructure.

Technical Specifications

Overall Dimensions

• Overall Length (L): 1,320 mm[cite: 15]
• Wheelbase (L1): 820 mm[cite: 15]
• Overall Width (W): 675 mm[cite: 15]
• Working Width (W1): 600 mm[cite: 15]
• Overall Height (H): 1,075 mm[cite: 15]
• Steel Drum Diameter (D): 400 mm[cite: 15]
