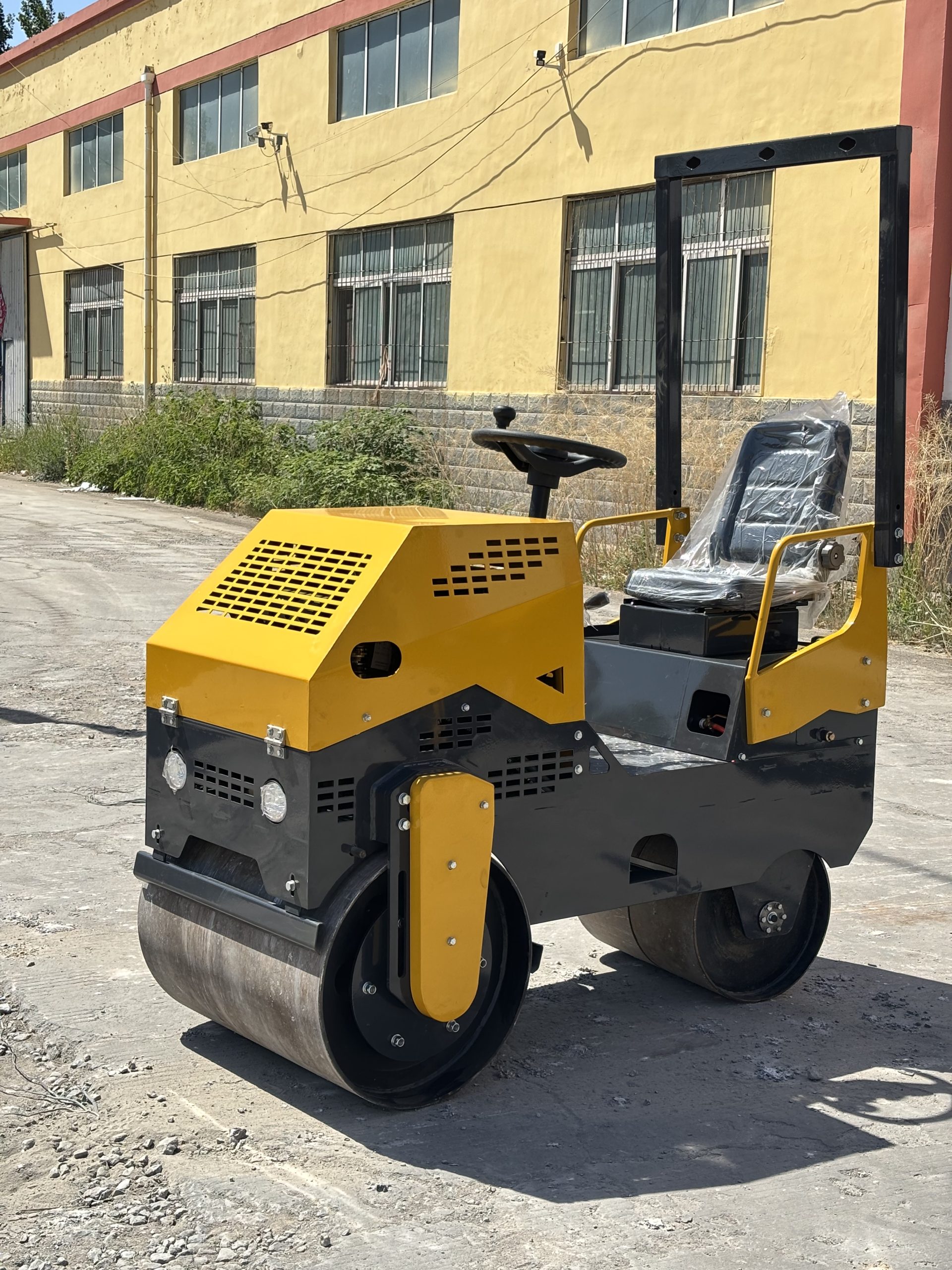

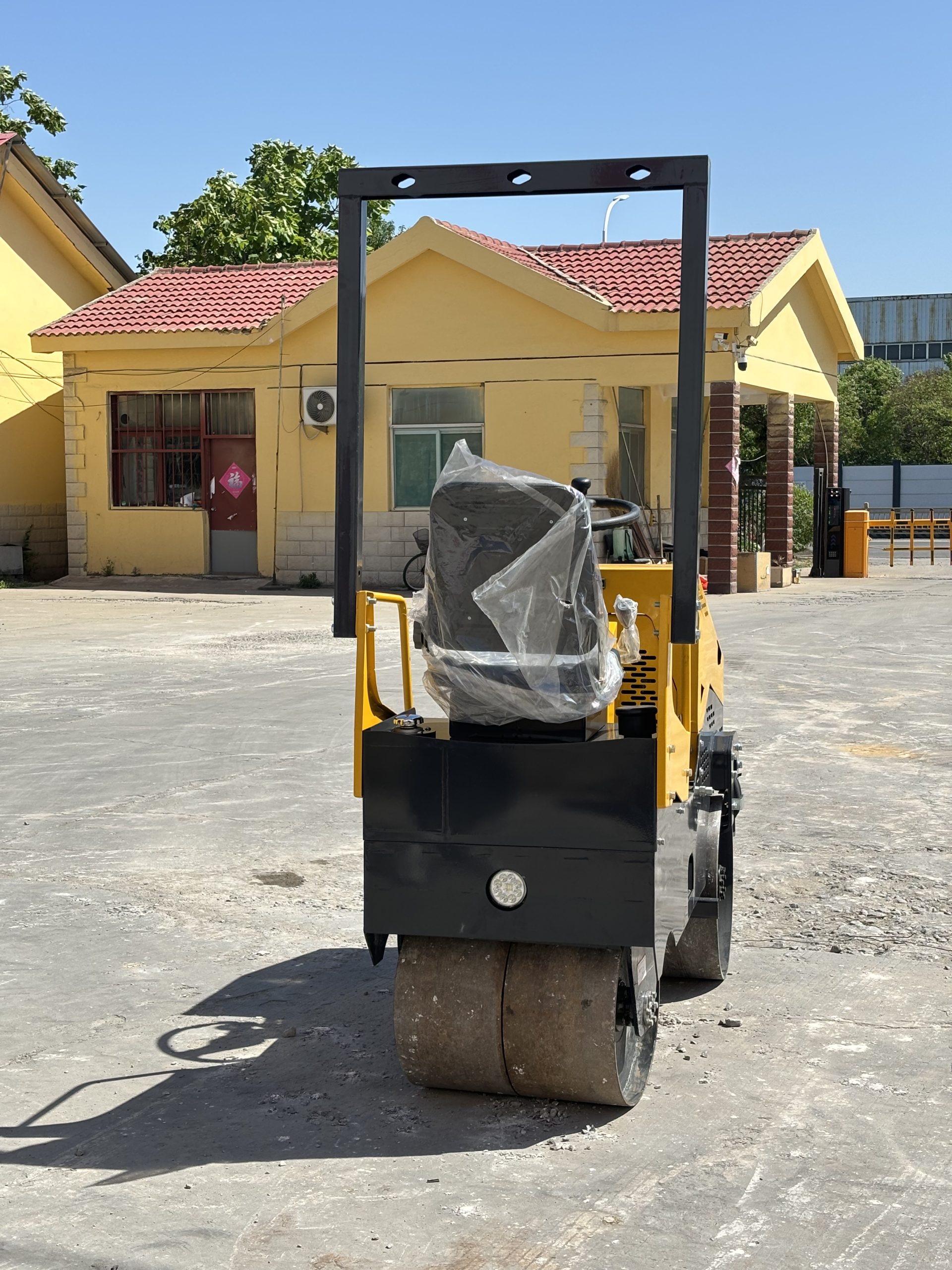

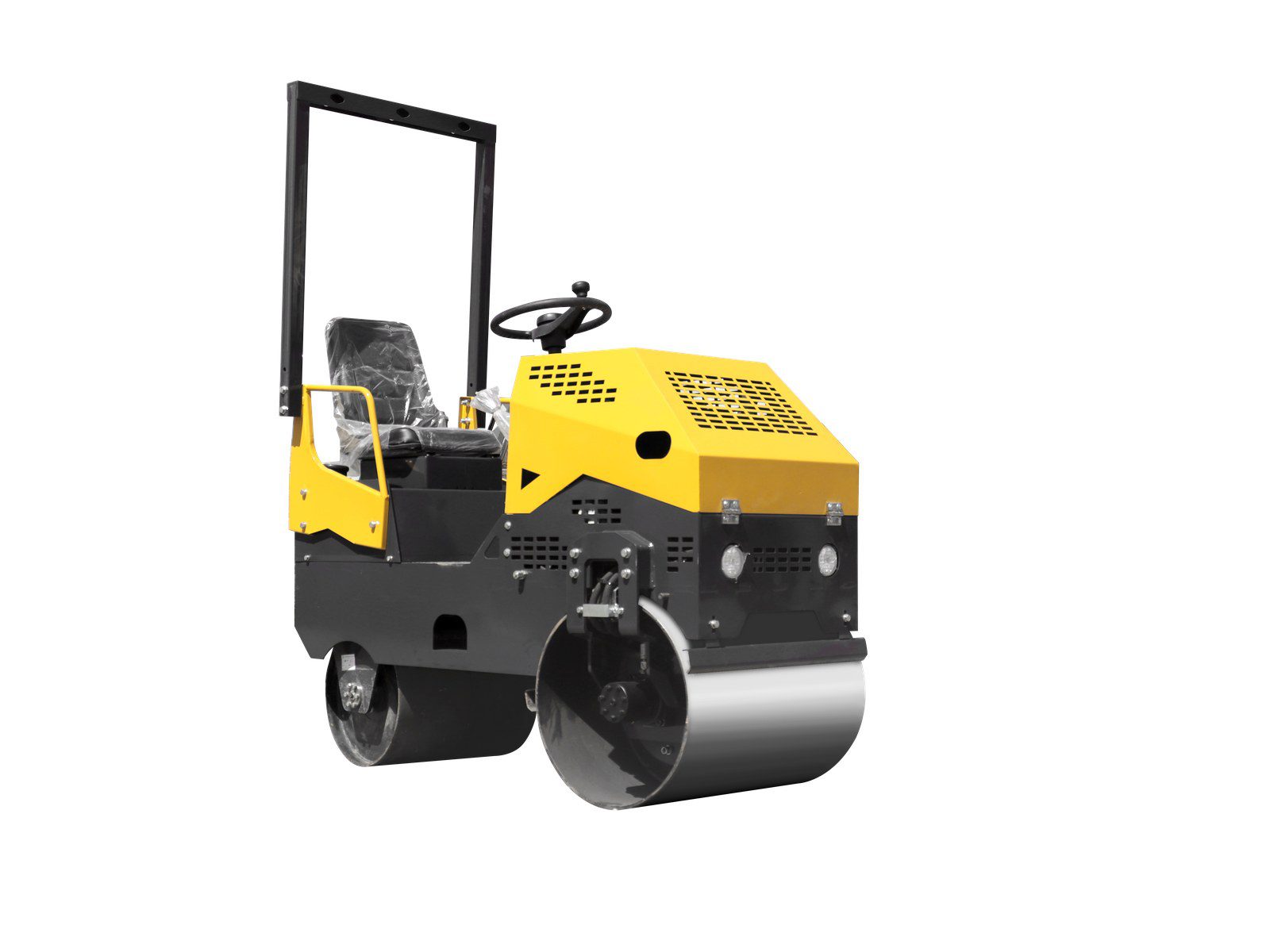

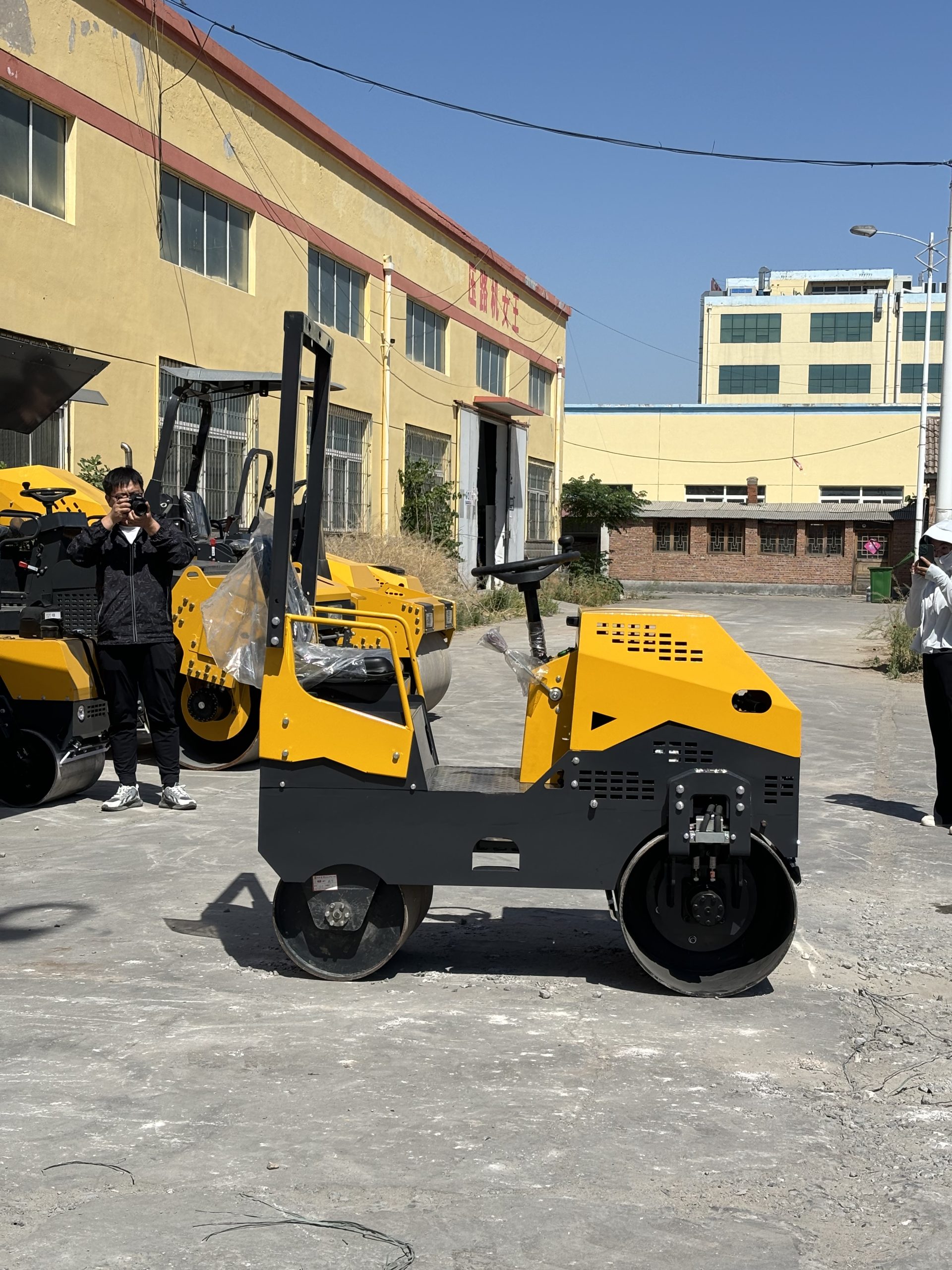

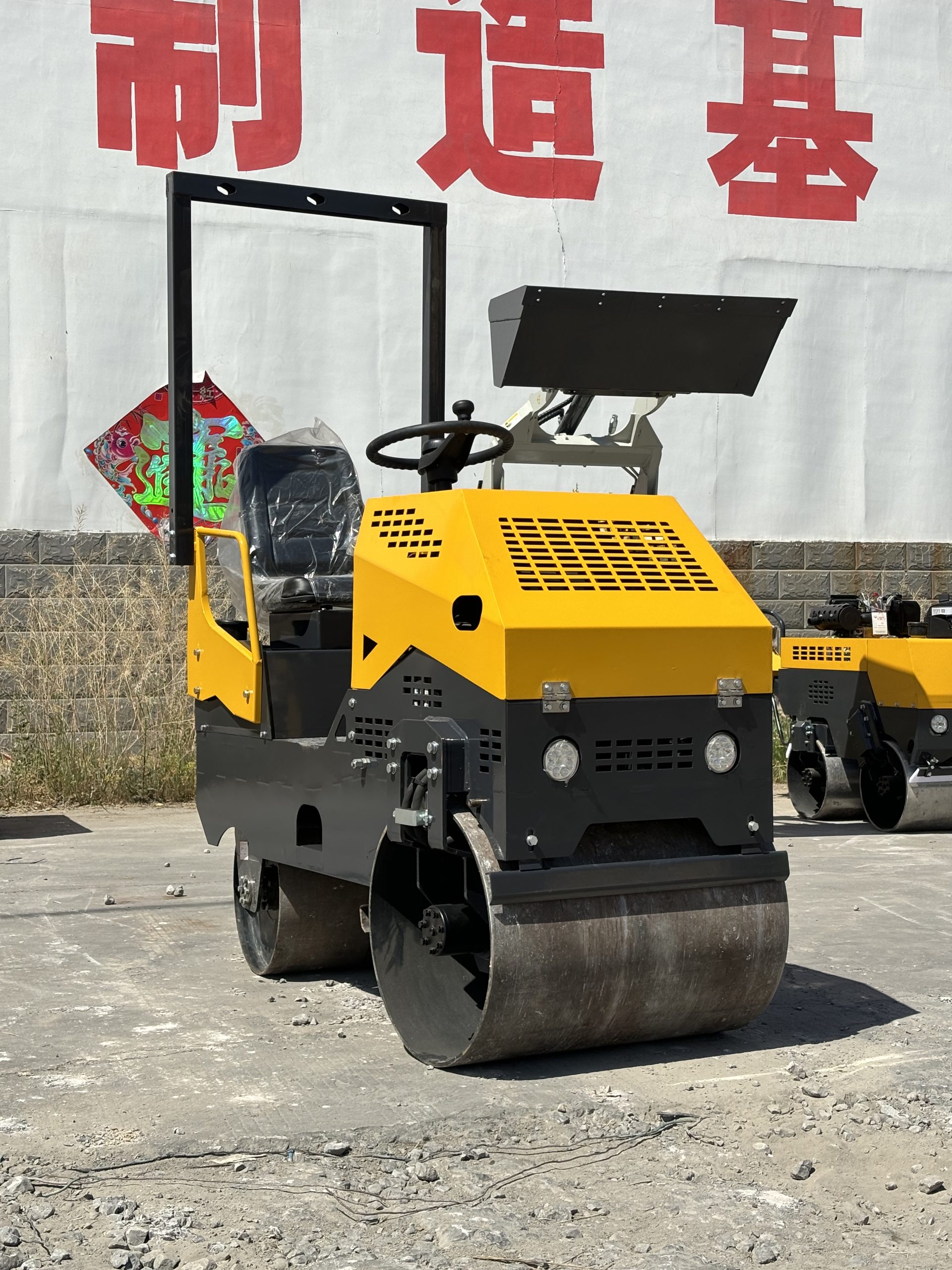

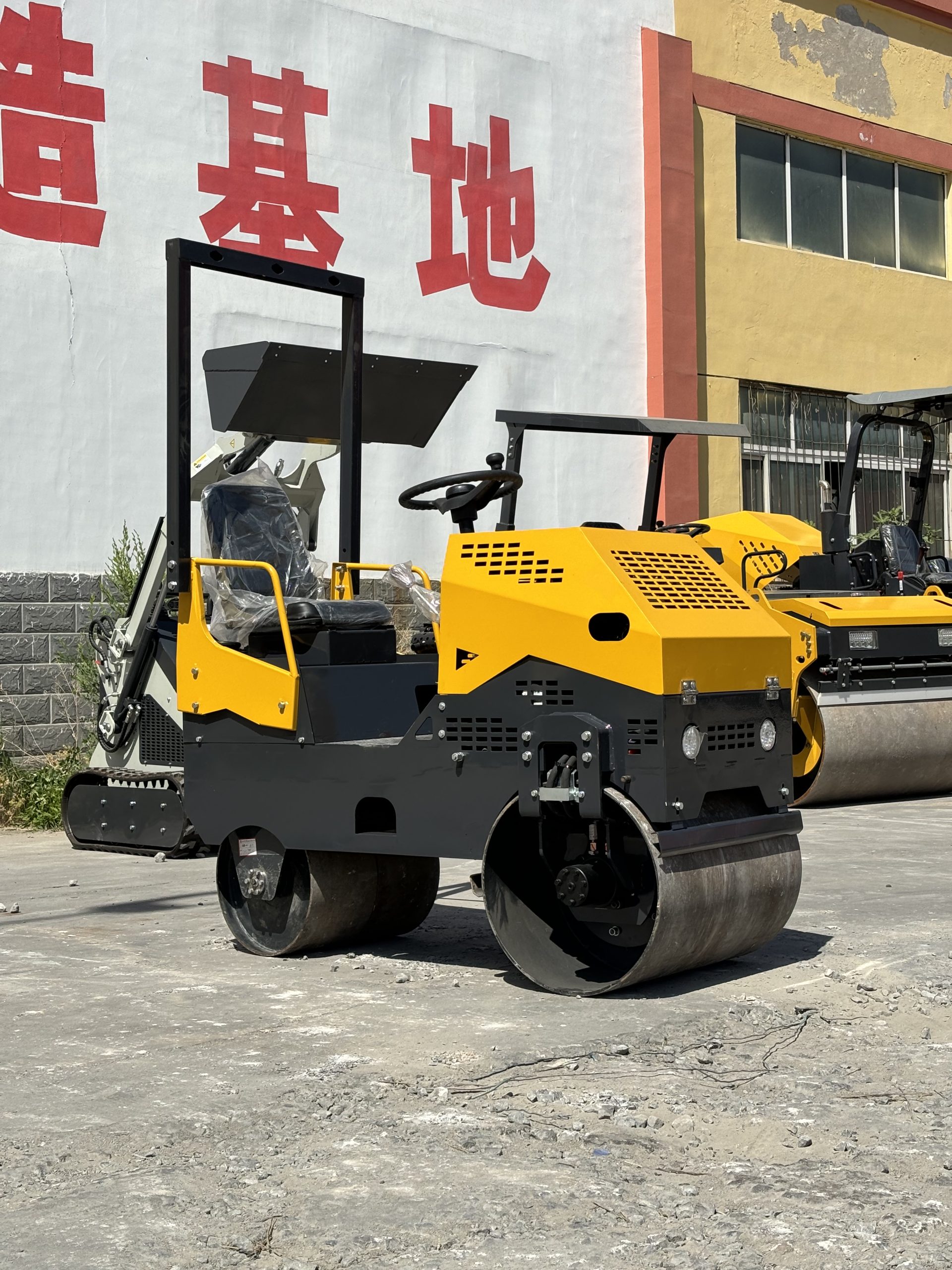

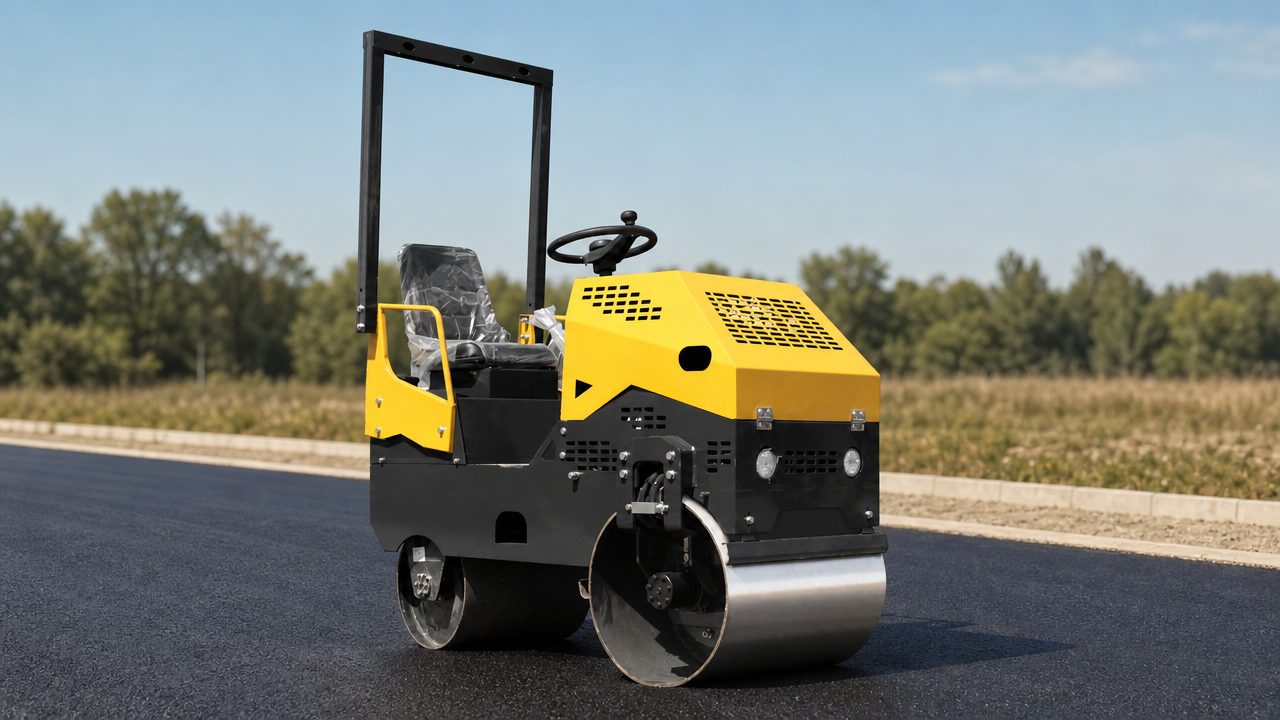

LX850JS 750 kg Compact Ride-On Vibratory Roller
A highly maneuverable 750 kg ride-on roller developed for small asphalt and soil compaction projects where operator comfort and productivity matter.
The LUXIN LX850JS 750 kg Compact Ride-On Vibratory Roller is a compact vibratory roller built for dependable compaction in restricted work areas.
Key Features
- Compact ride-on design improves productivity
- Front drum vibration with 14 kN exciting force
- 30° climbing ability
- 700 mm working width
- Integrated 38.8 L water tank
Recommended Applications
Sidewalks, cycling paths, courtyards, parking areas, road repair, landscaping and narrow municipal jobsites.
Technical Specifications
| Parameter | Specification |
| Operating weight | 750 kg |
| Static line load | 60 N/cm |
| Working speed | 0-4.5 km/h |
| Gradeability | 30° |
| Minimum turning radius | 1,500 mm |
| Vibration frequency | 61 Hz |
| Amplitude | 0.65 mm |
| Exciting force | 14 kN |
| Working width | 700 mm |
| Drum diameter | 530 mm |
| Vibrating drum | Front |
| Engine model | CF180FE-4 diesel |
| Rated power | 4.4 kW / 6 hp |
| Rated speed | 3,600 rpm |
| Hydraulic oil tank | 9 L |
| Fuel tank | 5 L |
| Water tank | 38.8 L |
Applications
Ideal for asphalt patching, sidewalks, trenches, municipal maintenance and small construction sites.
Product Support
Contact LUXIN for the current technical data sheet, configuration options and export support.
