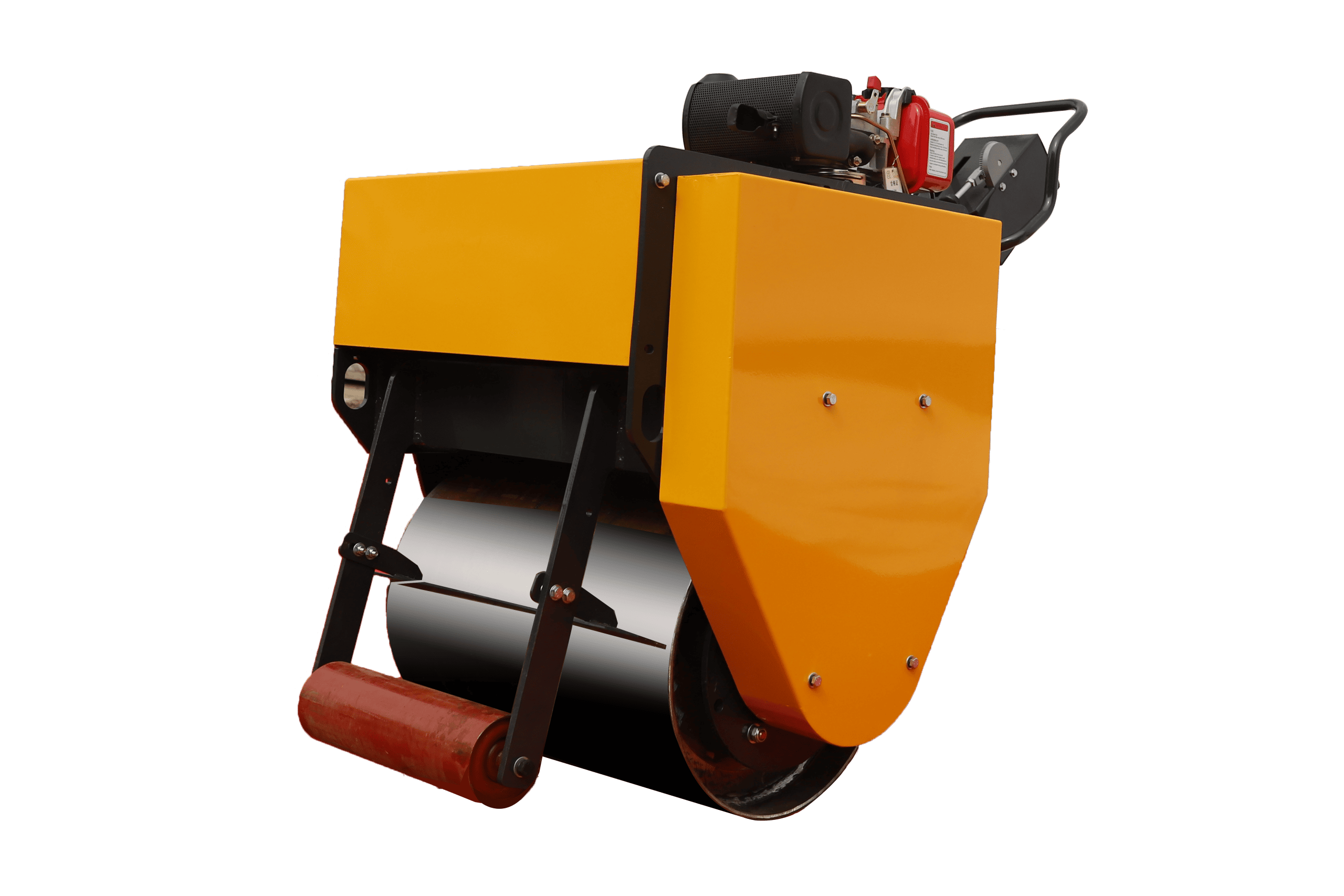

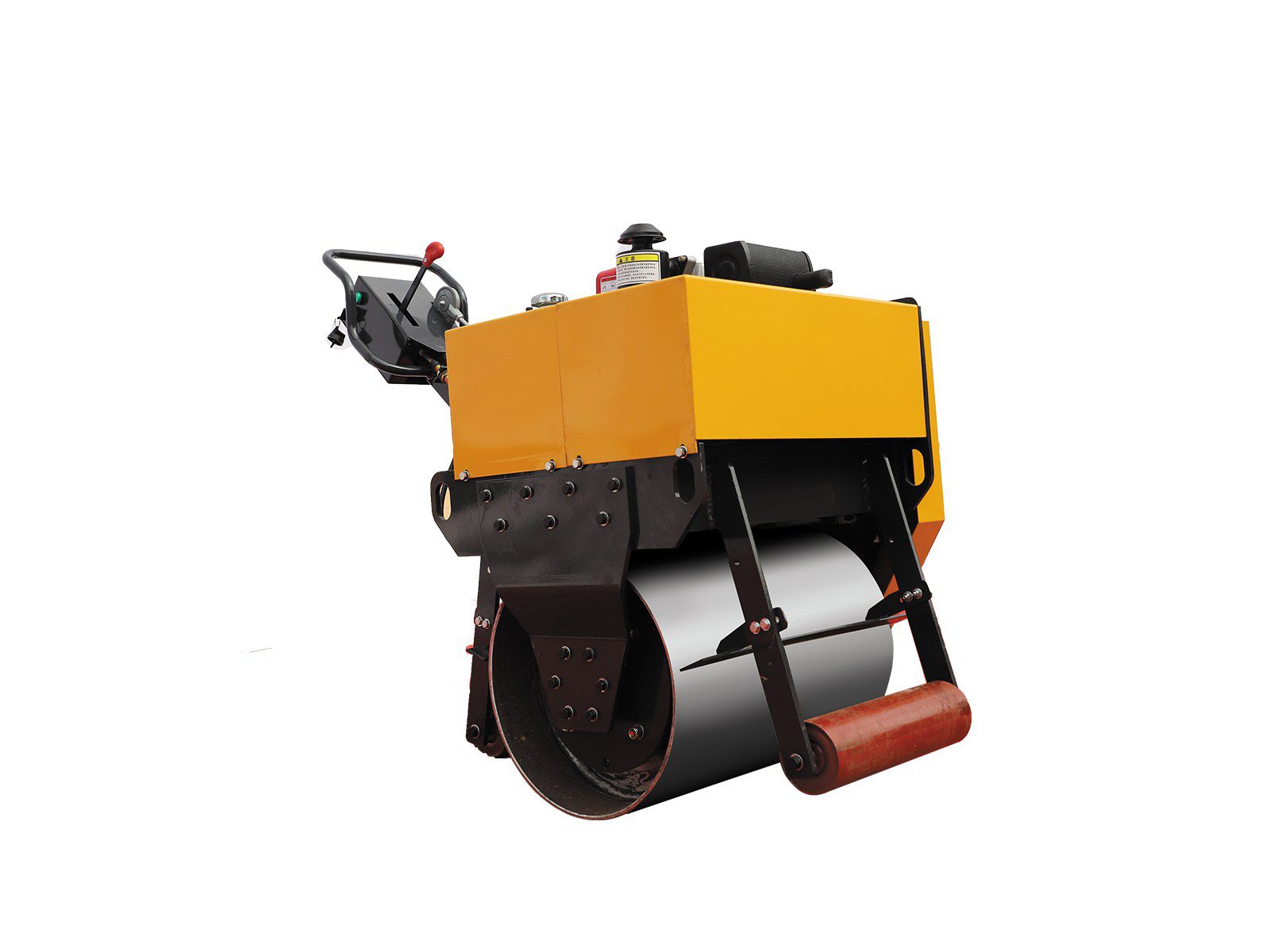

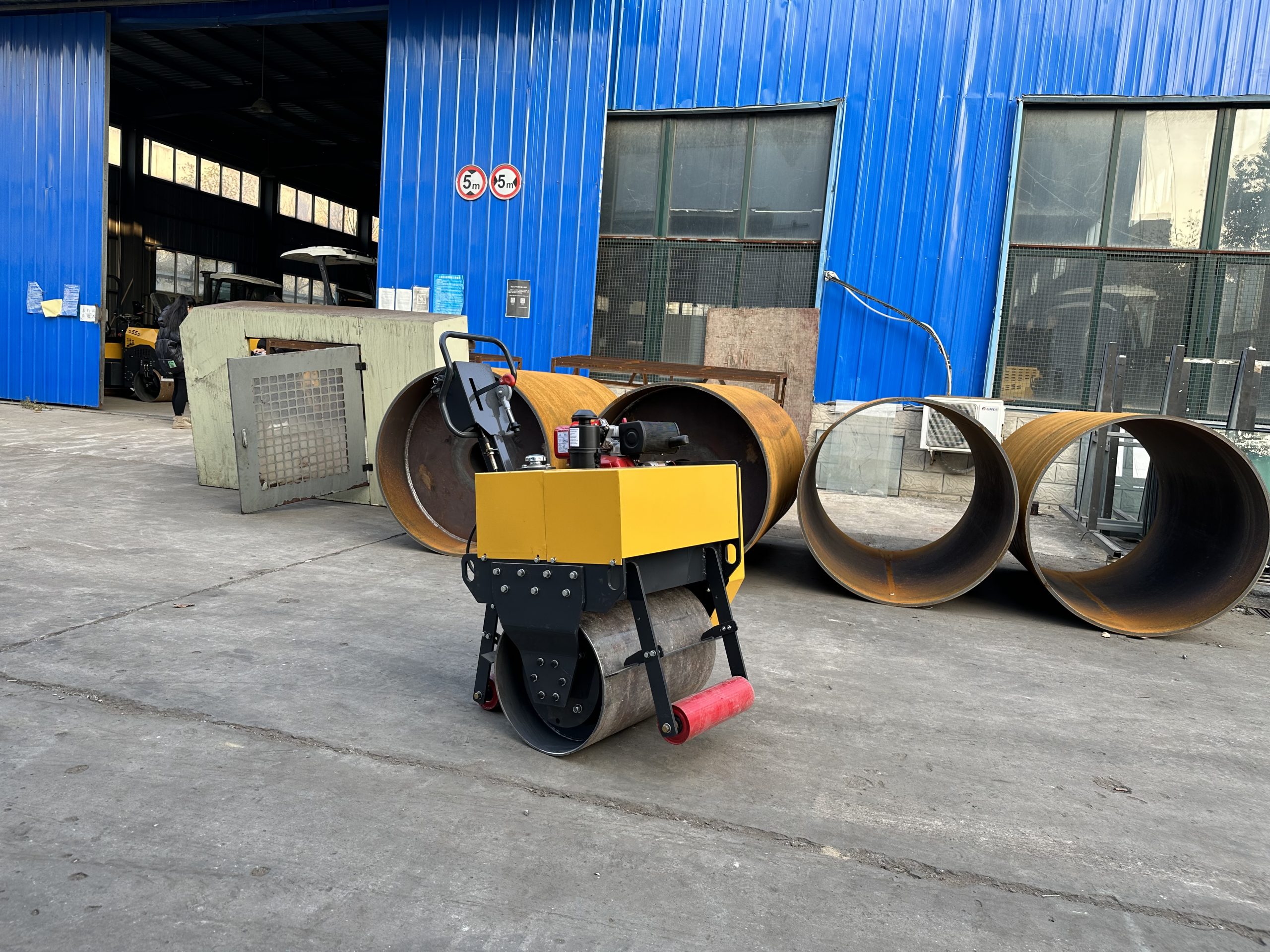

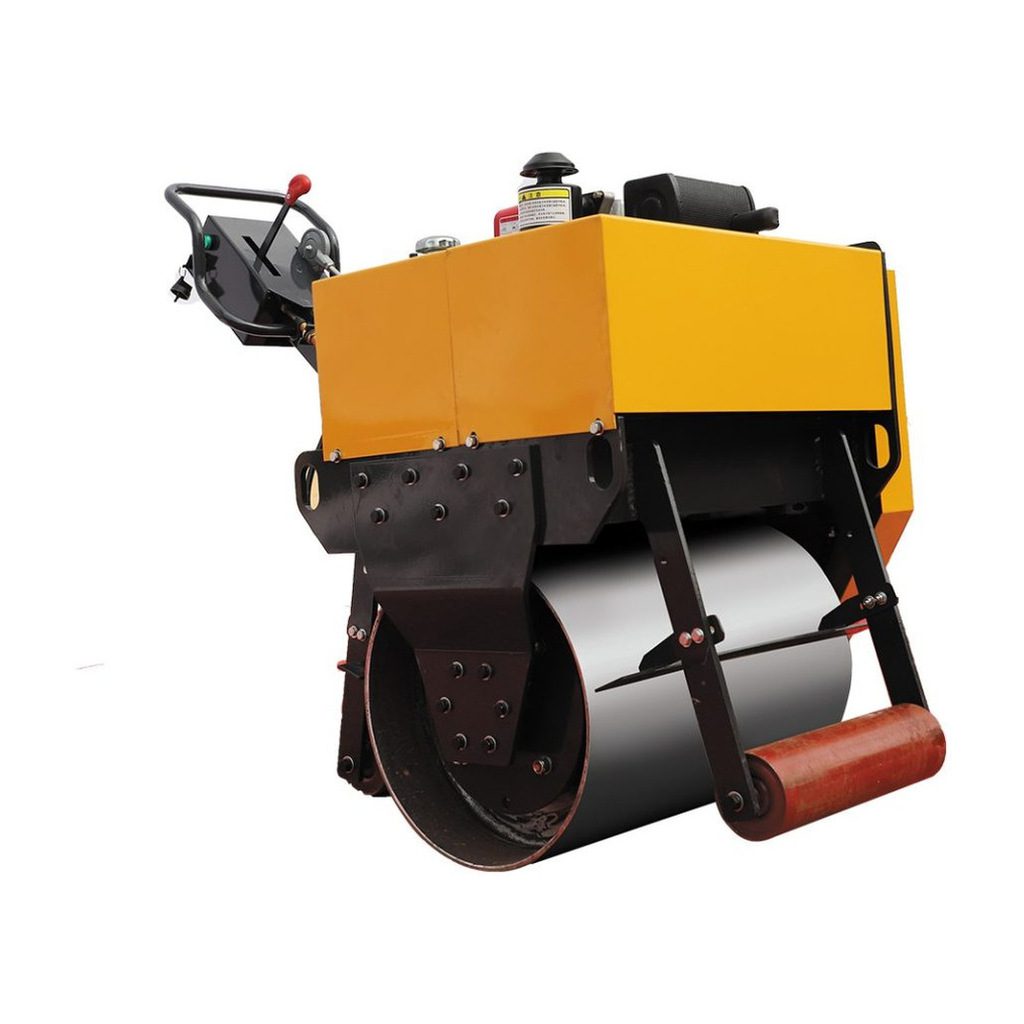

350 kg Walk-Behind Single Drum Vibratory Roller
A lightweight single drum roller for compacting small foundations, trenches, garden paths and other restricted-access areas.
The LUXIN Walk-Behind Single Drum Roller is a compact vibratory roller built for dependable compaction in restricted work areas.
Key Features
- Lightweight and easy to transport
- 600 mm working width for narrow-area compaction
- Diesel engine for reliable jobsite operation
- Compact drum delivers focused vibration
- Simple walk-behind controls and low maintenance requirements
Recommended Applications
Small foundations, pipeline trenches, garden paths, pavement edges, patch repair and landscaping projects.
Technical Specifications
| Parameter | Specification |
| Operating weight | 350 kg |
| Static line load | 5.72 kN/m |
| Working speed | 0-4 km/h |
| Gradeability | 30° |
| Vibration frequency | 30 Hz |
| Amplitude | 0.6 mm |
| Exciting force | 15 kN |
| Working width | 600 mm |
| Drum diameter | 426 mm |
| Engine model | KD173FB diesel |
| Rated power | 4.05 kW / 5.5 hp |
| Rated speed | 3,600 rpm |
| Hydraulic oil tank | 20 L |
| Fuel tank | 2.5 L |
| Water tank | 25 L |
Applications

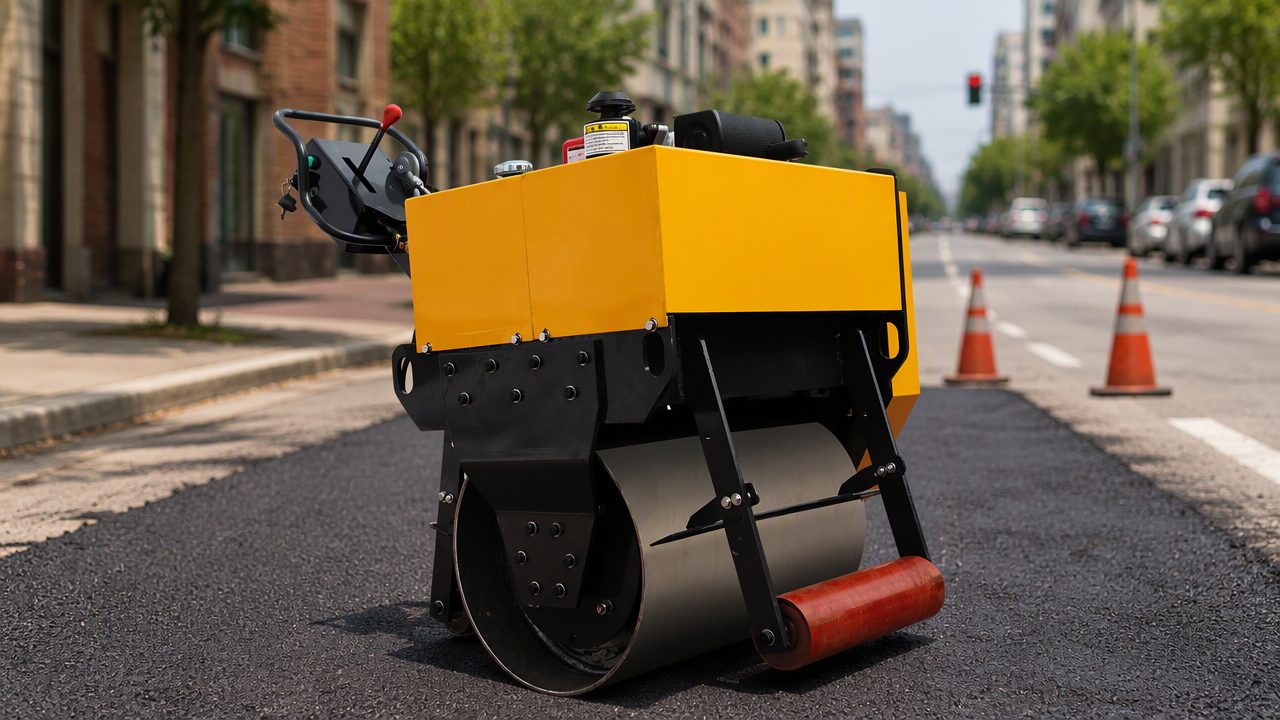

Ideal for asphalt patching, sidewalks, trenches, municipal maintenance and small construction sites.
Product Support
Contact LUXIN for the current technical data sheet, configuration options and export support.
