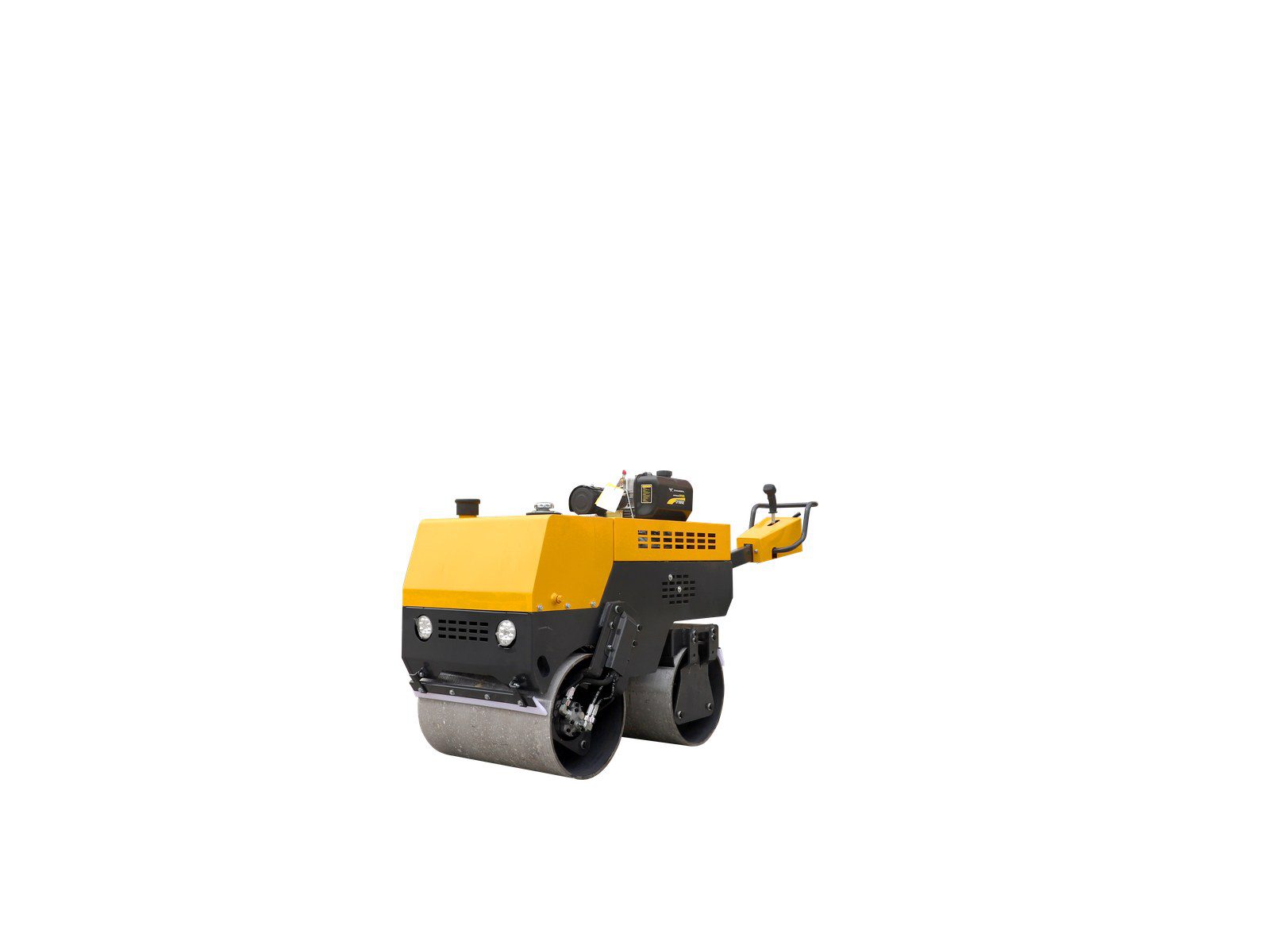

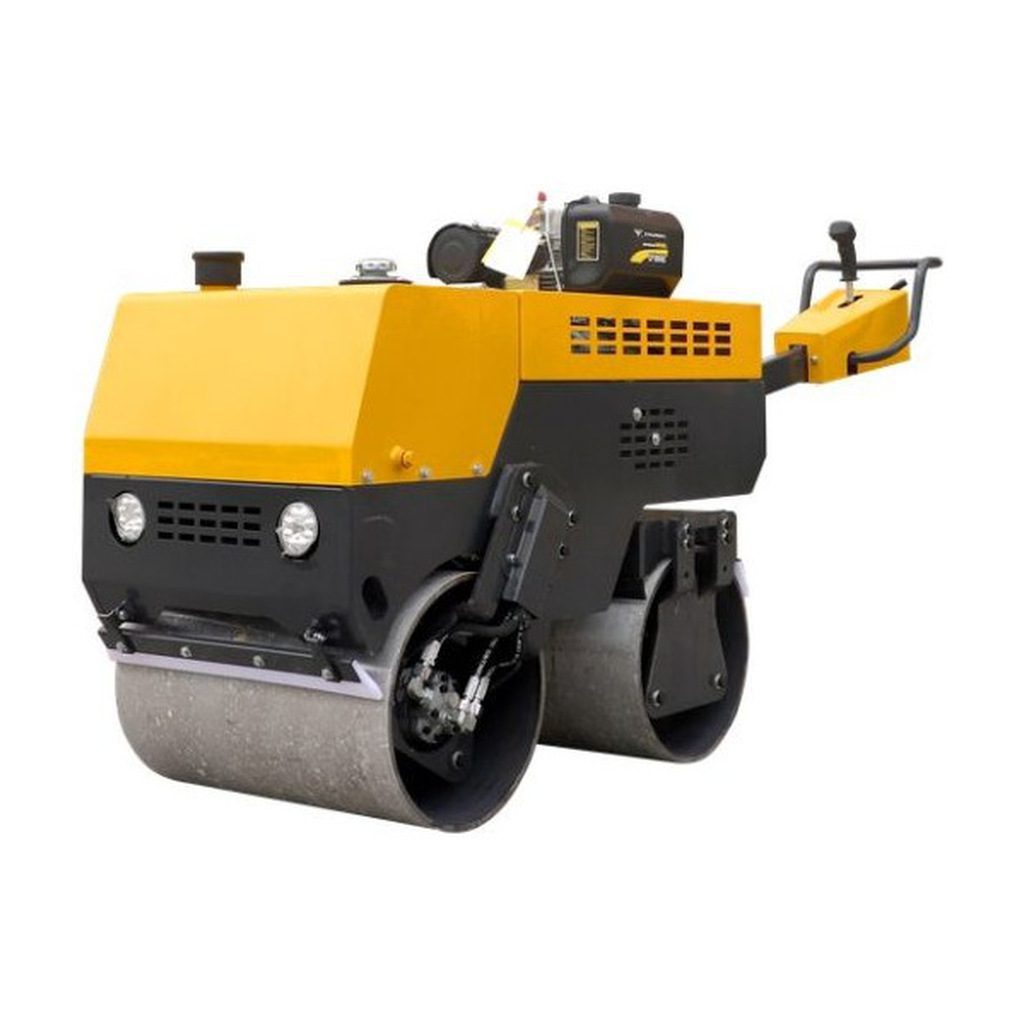

LX008JS 800 kg Fully Hydraulic Walk-Behind Double Drum Roller
An 800 kg fully hydraulic tandem roller combining compact dimensions, dual-drum vibration and strong climbing performance for professional small-area compaction.
The LUXIN LX008JS 800 kg Fully Hydraulic Walk-Behind Double Drum Roller is a compact vibratory roller built for dependable compaction in restricted work areas.
Key Features
- Fully hydraulic drive for smooth speed control
- Front and rear vibrating drums
- 15 kN exciting force for efficient compaction
- Compact 600 mm working width
- Diesel engine and large water tank for continuous operation
Recommended Applications
Asphalt maintenance, trench backfill, sidewalks, road shoulders, parking areas, landscaping and industrial yard repair.
Technical Specifications
| Parameter | Specification |
| Operating weight | 800 kg |
| Static line load | 70/60 N/cm |
| Working speed | 0-4 km/h |
| Gradeability | 25° |
| Vibration frequency | 70 Hz |
| Amplitude | 0.6 mm |
| Exciting force | 15 kN |
| Working width | 600 mm |
| Drum diameter | 400 mm |
| Vibrating drum | Front + Rear |
| Engine model | CF188 diesel |
| Rated power | 6.3 kW / 8.5 hp |
| Rated speed | 3,600 rpm |
| Hydraulic oil tank | 20.5 L |
| Fuel tank | 5.5 L |
| Water tank | 30.5 L |
Applications
Ideal for asphalt patching, sidewalks, trenches, municipal maintenance and small construction sites.
Product Support
Contact LUXIN for the current technical data sheet, configuration options and export support.
