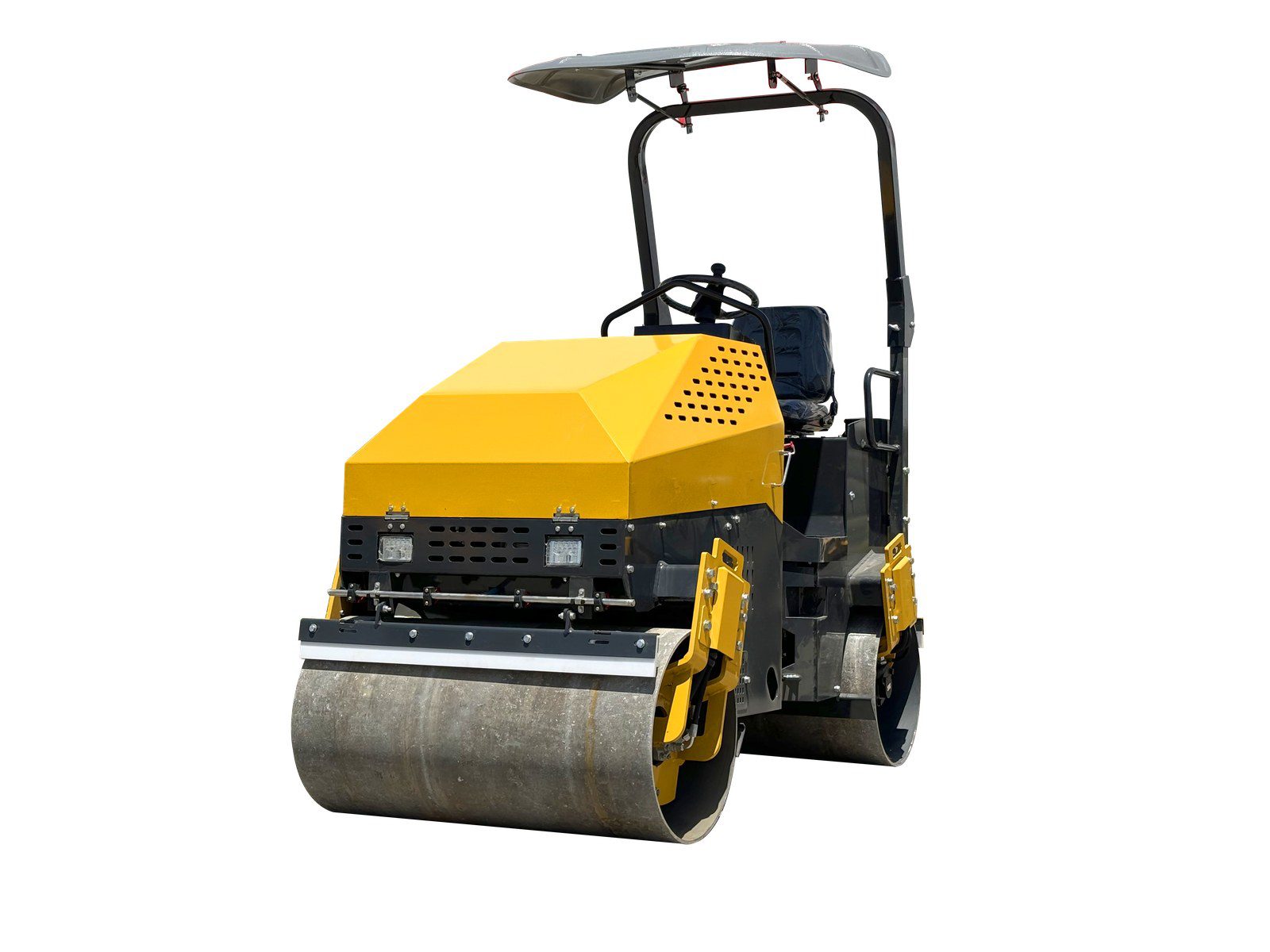

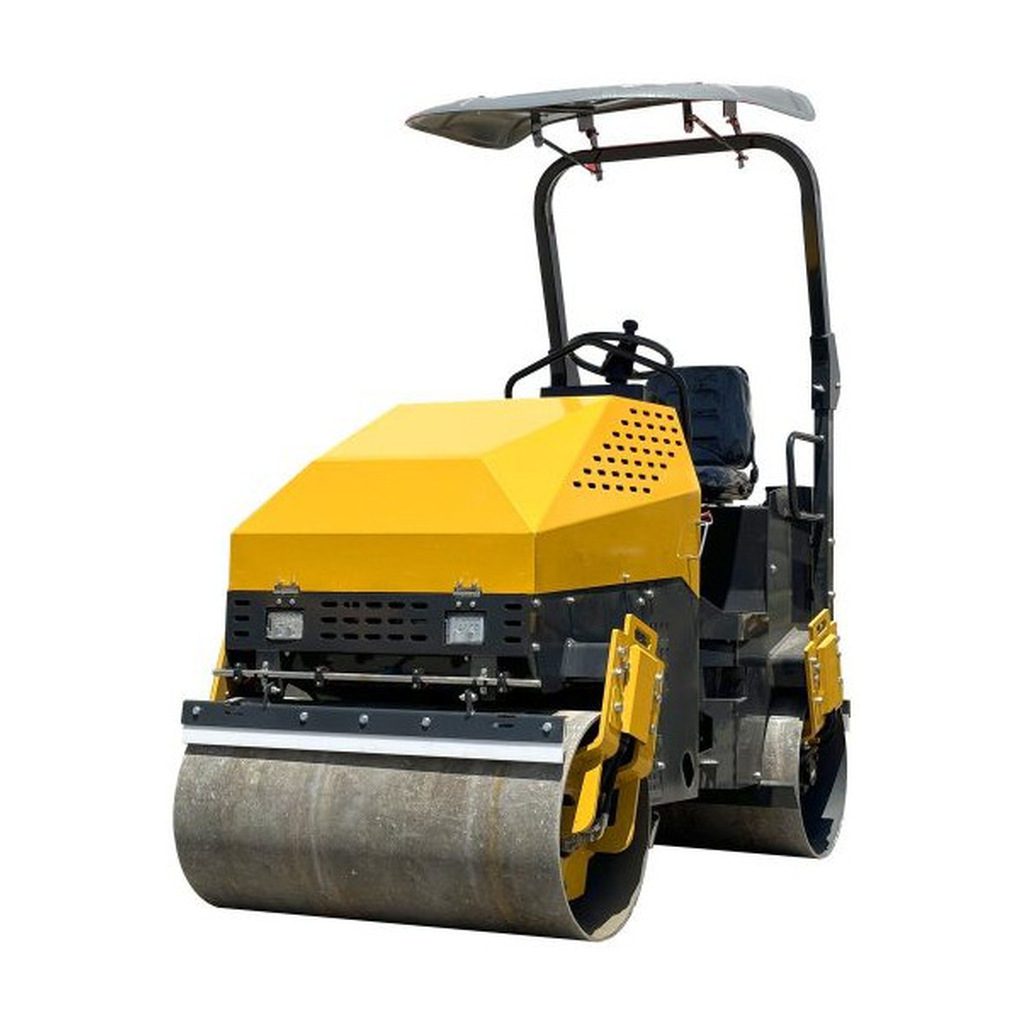

LUXIN LX025JS 2.5-Ton Compact Double Drum Vibratory Roller
CE-certified 2.5-ton (2,500 kg) vibratory roller powered by a 25 kW (34 hp) HC-390 3-cylinder diesel engine. Features a 1,100mm working width, 35 kN exciting force at 60 Hz vibration frequency, electric engine start, hydraulic vibration, tight 2,630 mm turning radius, luxurious adjustable seat, and a 70L water tank. Ideal for trench backfilling, narrow space compaction, and pavement maintenance.
Table of Contents
The LX025JS is a CE-certified 2.5-ton compact vibratory roller engineered for high-efficiency compaction in narrow spaces, utility trench backfilling, and general road repairs. Powered by a dependable HC-390 3-cylinder diesel engine (25 kW / 34 hp @ 2,600 rpm), this roller provides superior performance with guaranteed after-sales support.
Equipped with an electric start system and front-drum hydraulic vibration, the LX025JS generates a powerful 35 kN exciting force at 60 Hz vibration frequency across a 1,100 mm working width. With its compact operating radius (2,630 mm turning radius), rust-resistant plastic-sprayed body, 70L water tank, and luxurious adjustable seating, it offers comfortable and precise control in confined construction environments.
Key Features
- Small Operating Radius & Agile Maneuverability: Features a tight 2,630 mm turning radius, making it ideal for confined sites, narrow urban lanes, and pipe trench backfilling.
- Electric Start & Hydraulic Vibration: User-friendly electric engine start combined with smooth hydraulic drum vibration for easy operation.
- High-Performance Brand Engine: Reliable HC-390 3-cylinder diesel engine producing 25 kW (34 hp) @ 2,600 rpm.
- Powerful Compaction Force (35 kN @ 60 Hz): Delivers 35 kN exciting force with 0.6 mm amplitude for rapid soil and aggregate consolidation.
- Operator Comfort: Equipped with a luxurious adjustable operator seat and a sunshade canopy to ensure ergonomic and comfortable working conditions.
- Corrosion-Resistant Plastic-Sprayed Finish: High-durability powder-coated surface ensures a rust-proof finish and long service life.
- CE Certified: Manufactured in compliance with European quality and safety standards.

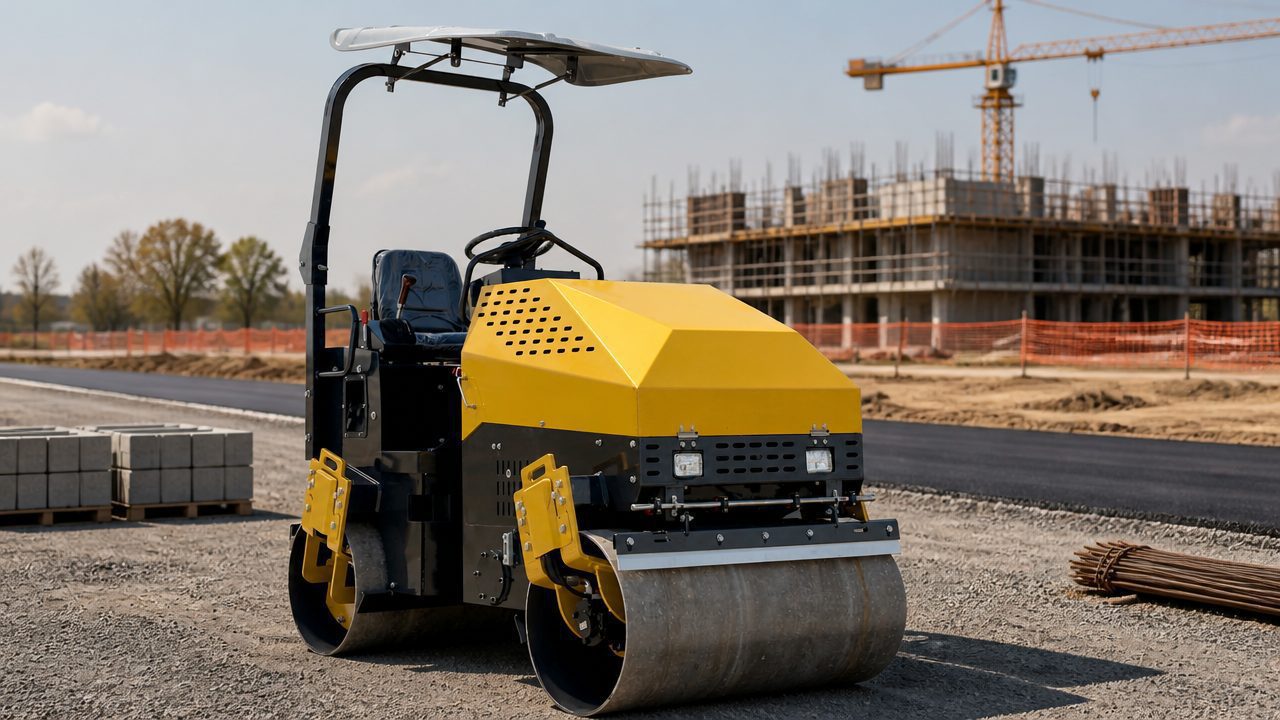

Recommended Applications
- Trench & Pipeline Backfilling: Compact design easily operates inside utility trenches, foundation footings, and pipe beds.
- Municipal Road Maintenance: Patching, sidewalk paving, urban lane repairs, and driveway maintenance.
- Parking Lots & Commercial Spaces: Base layer and surface compaction for small-to-medium parking bays and walkways.
- General Earthworks & Foundations: Ground preparation around building edges, garden paths, and sports grounds.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LX025JS |
| Certification | CE Certified |
| Operating Weight | 2,500 kg |
| Static Line Load | 21.9 N/cm |
| Engine Model & Type | HC-390 Diesel, 3-Cylinder |
| Rated Power | 25 kW / 34 hp @ 2,600 rpm |
| Exciting Force | 35 kN |
| Vibration Frequency | 60 Hz |
| Nominal Amplitude | 0.6 mm |
| Working / Drum Width | 1,100 mm |
| Steel Drum Diameter | 560 mm |
| Steel Drum Thickness (S) | 12 mm |
| Vibrating Drum | Front Drum |
| Working Speed | 0–10 km/h |
| Climbing Ability (Gradeability) | 30° |
| Minimum Turning Radius | 2,630 mm |
| Minimum Ground Clearance | 290 mm |
| Wheelbase | 1,740 mm |
| Water Tank Capacity | 70 L |
| Hydraulic Oil / Fuel Tank | 65 L / 25 L |
Overall Dimensions
- Overall Length (L): 2,400 mm
- Frame Length (L1): 2,300 mm
- Wheelbase (L2): 1,740 mm
- Overall Width (W): 1,220 mm
- Working / Drum Width (W1): 1,100 mm
- Overall Height with Canopy (H): 2,440 mm
- Frame / Seat Height (H1): 1,620 mm
- Ground Clearance (H2): 290 mm
- Drum Diameter (D): 560 mm
