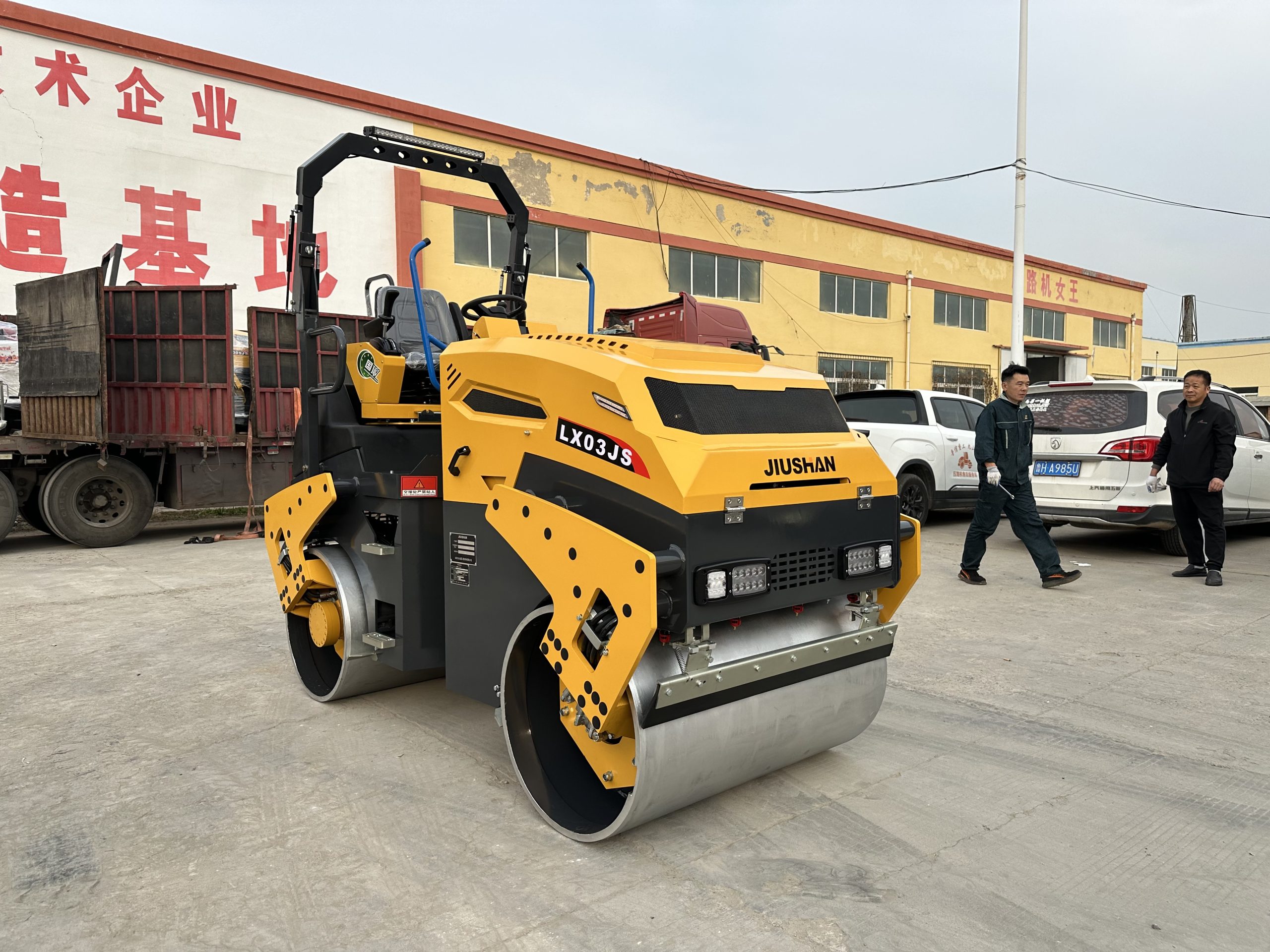

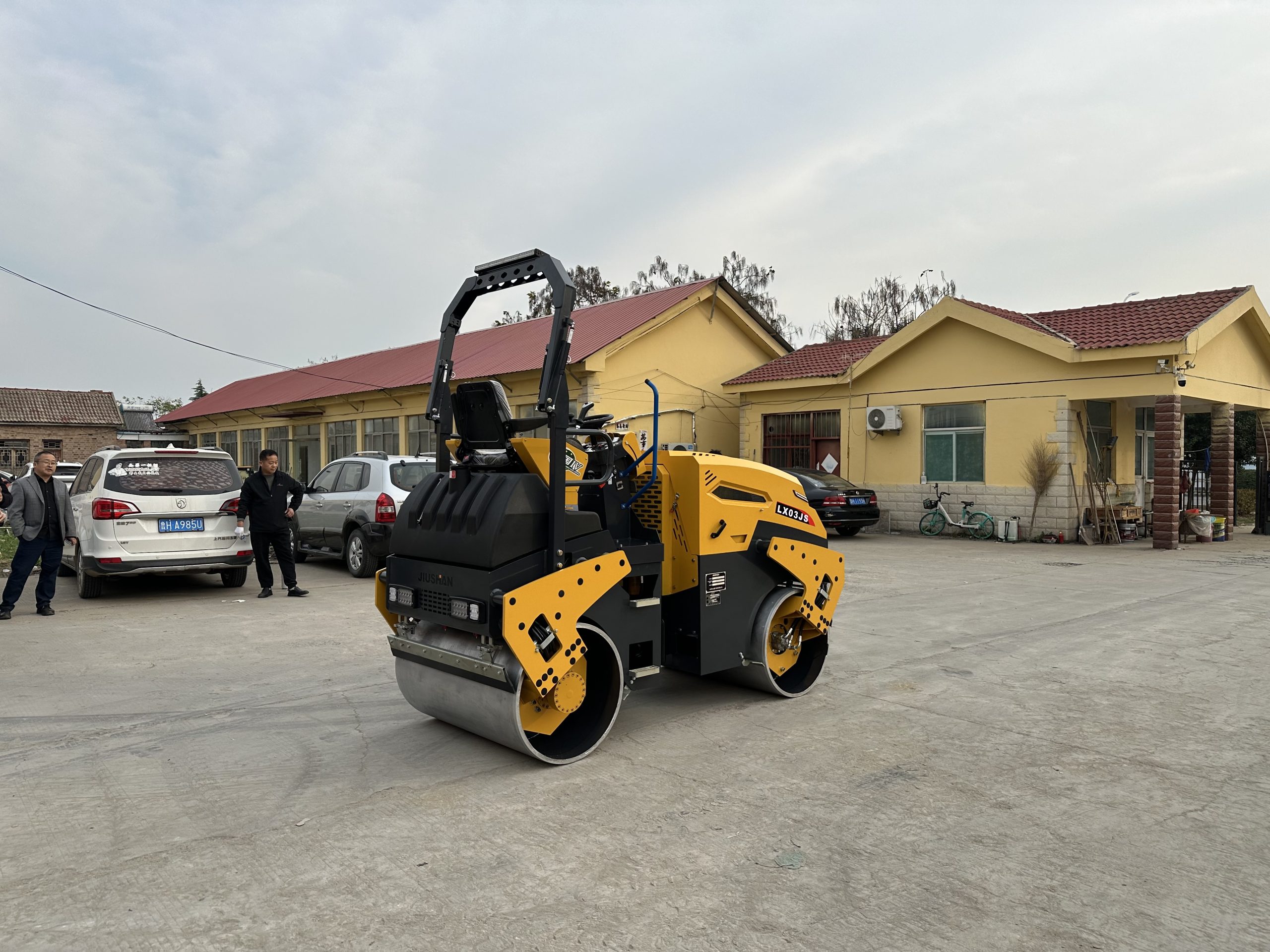

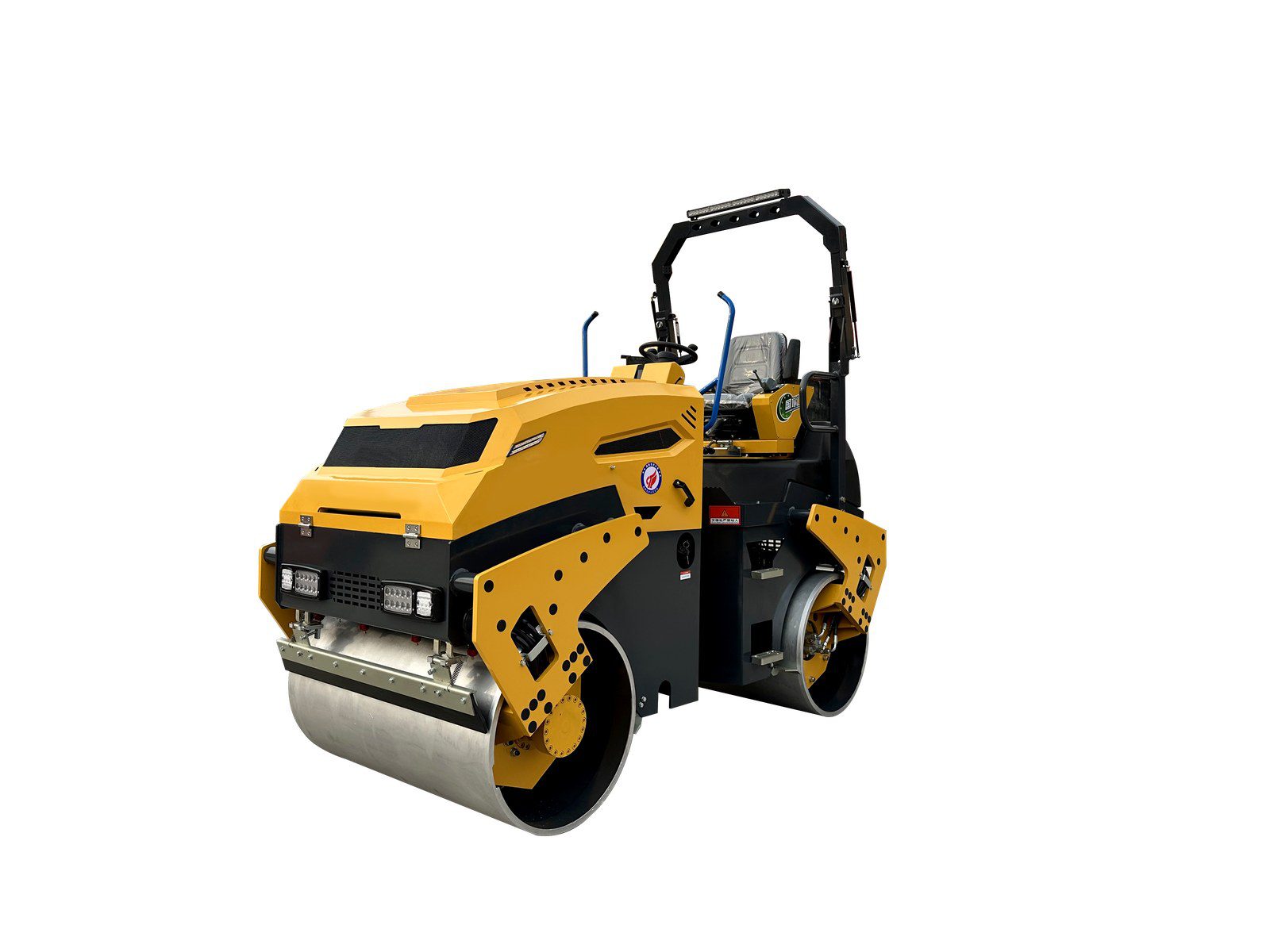

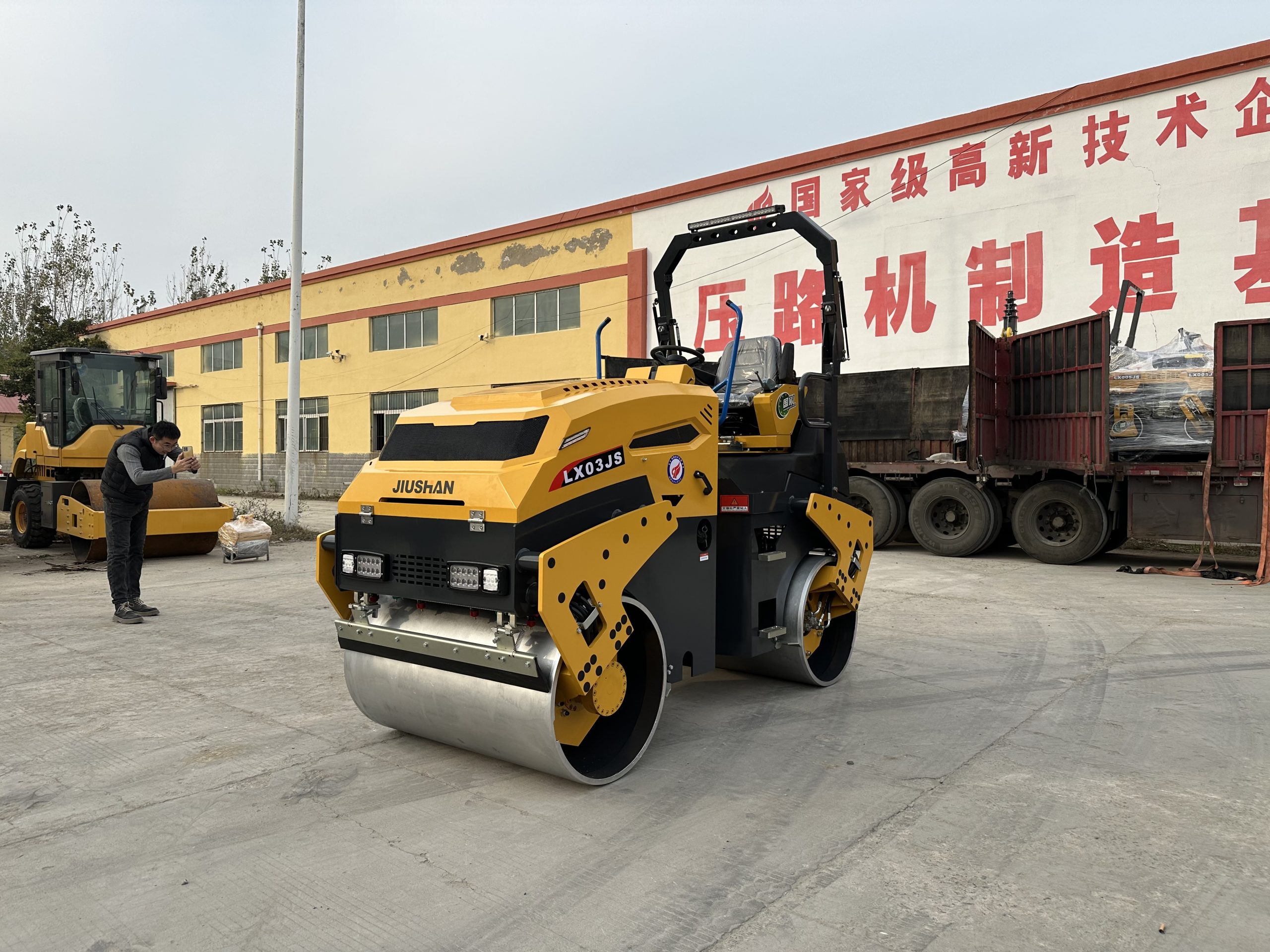

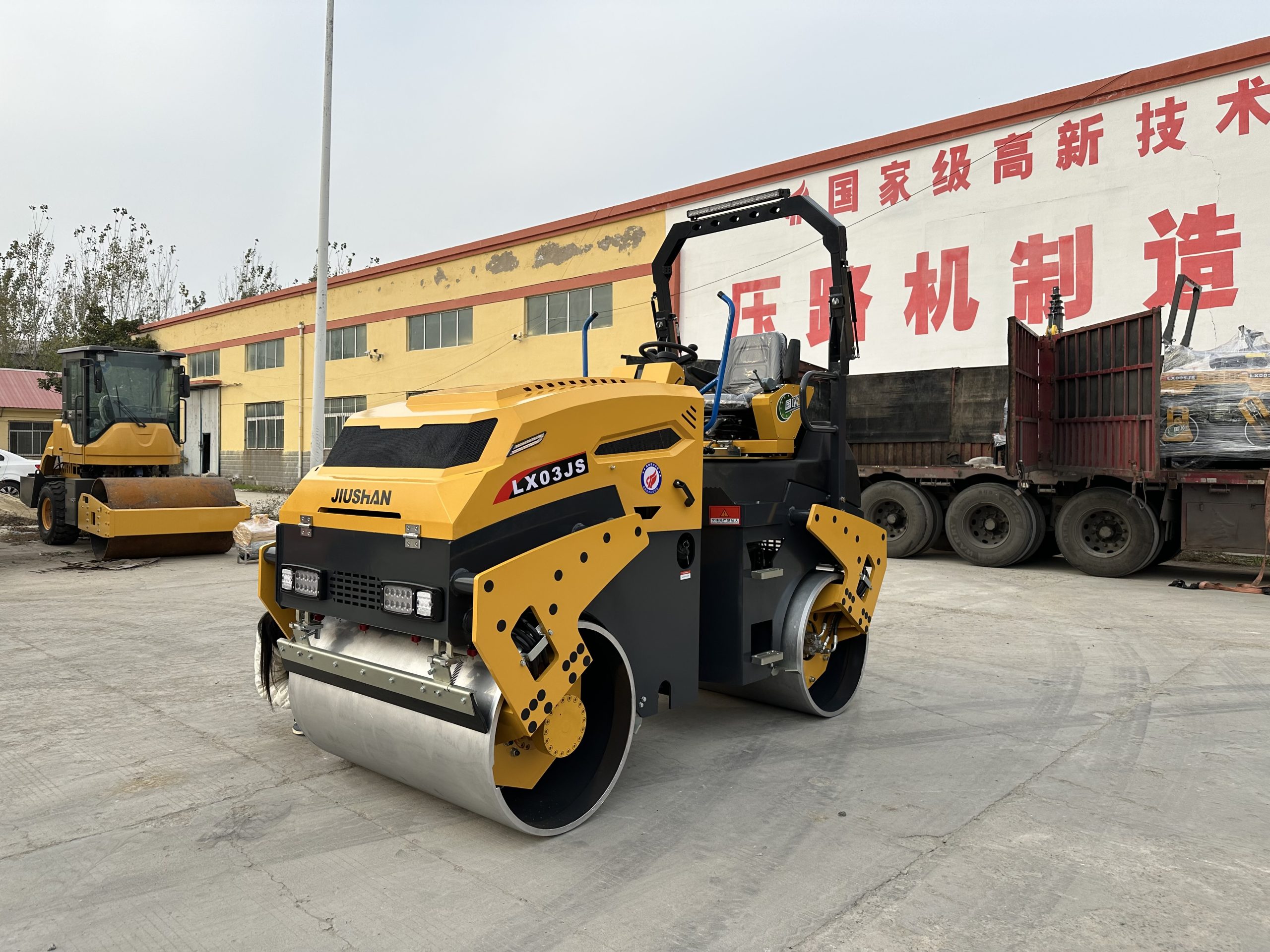

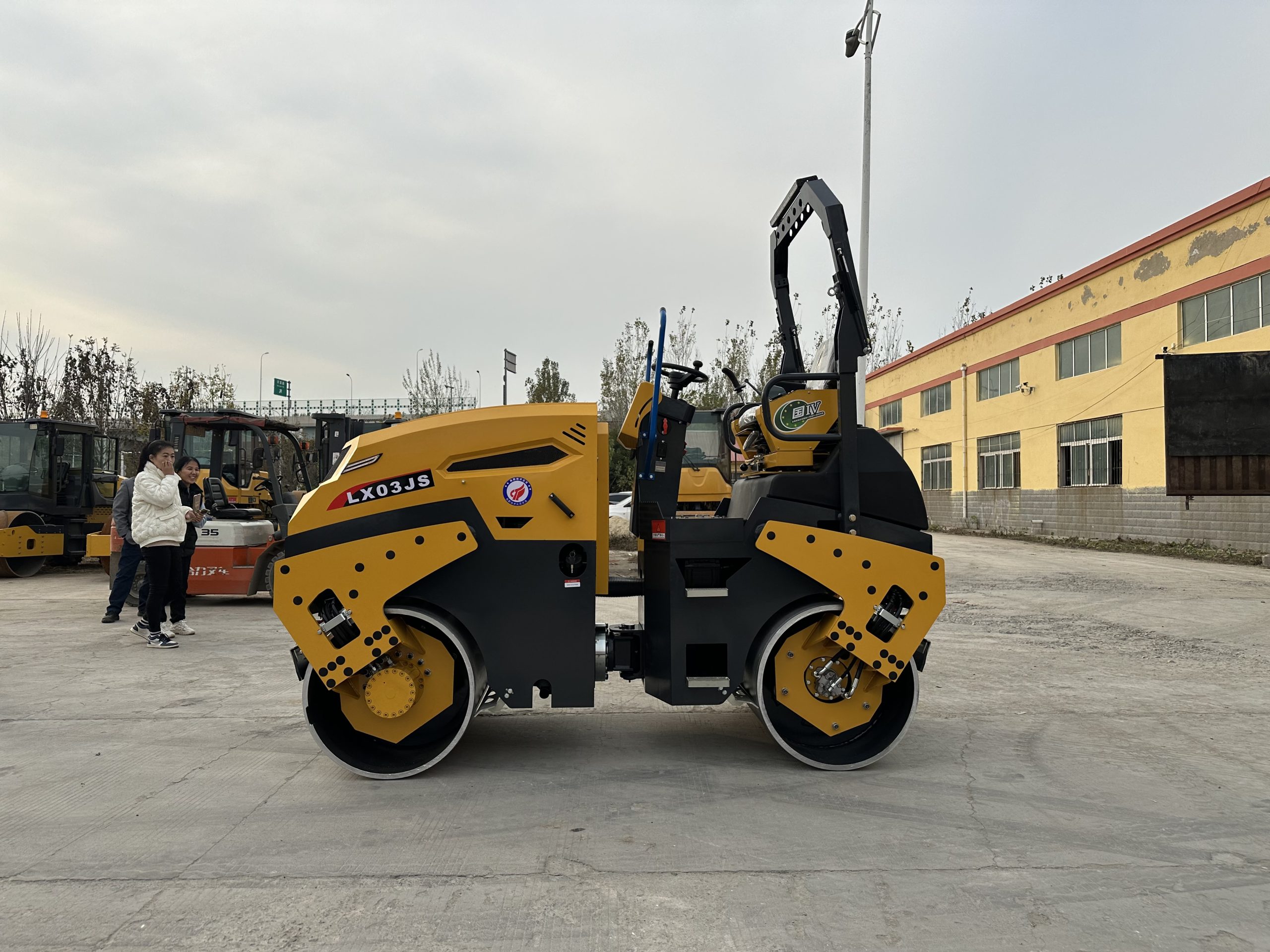

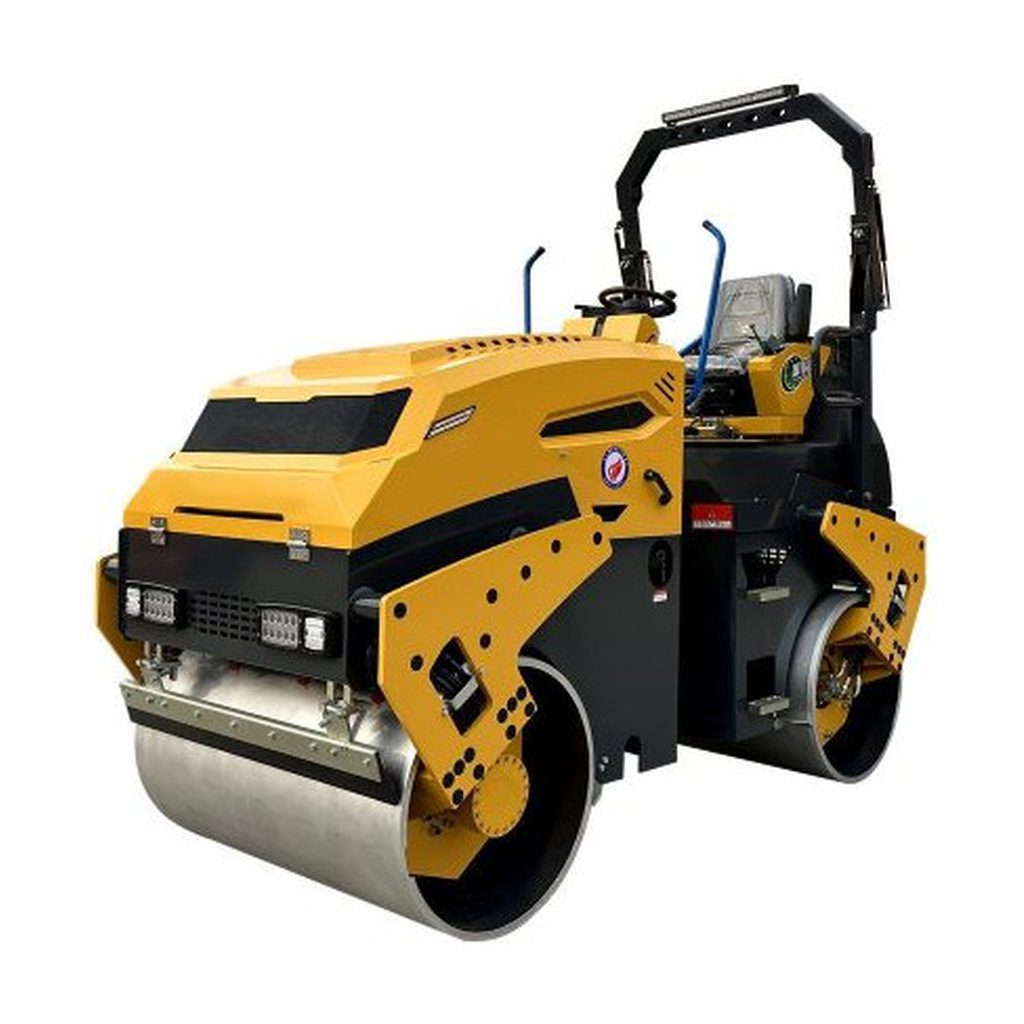

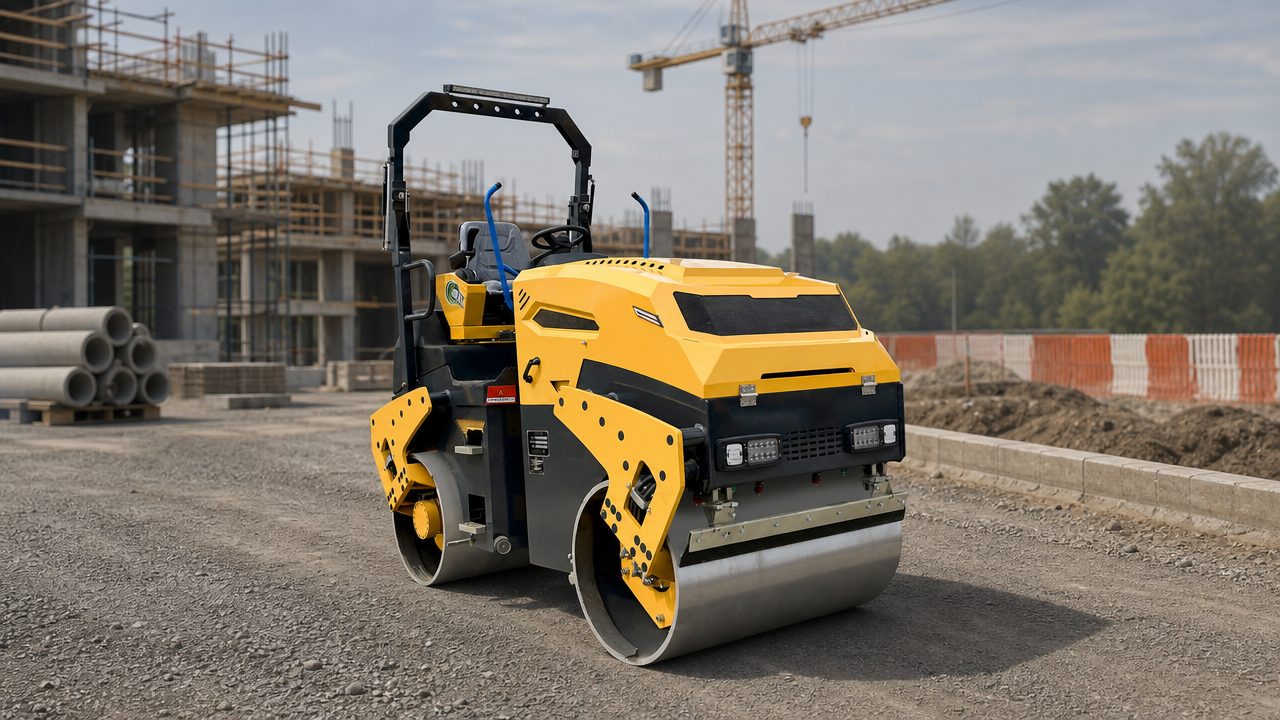

LUXIN LX03JS 2.9-Ton Fully Hydraulic Double Drum Vibratory Roller
High-performance 2.9-ton (2,900 kg) fully hydraulic double drum vibratory roller powered by a 36.8 kW (50 hp) V25-50C41 4-cylinder diesel engine. Features dual-amplitude & dual-drum vibration with independent single-drum mode, 1,200mm working width, 50.6 kN exciting force at 63 Hz frequency, hydraulic parking & steering, electronically controlled pressure spraying, and a large 150L water tank. Perfect for road base compaction and asphalt surface repairs.
Table of Contents
The LUXIN LX03JS is an advanced 2.9-ton fully hydraulic double drum vibratory roller engineered for high-efficiency compaction and maintenance of road sub-bases and asphalt surfaces. Powered by a robust V25-50C41 4-cylinder diesel engine (36.8 kW / 50 hp @ 2,400 rpm), this machine combines heavy-duty compaction performance with fuel efficiency and long service life.
Featuring a hydraulic dual-amplitude dual-vibration system, the LX03JS allows operators to engage both wheels or isolate vibration to a single drum for energy savings and machinery protection. With a 1,200 mm working width, 50.6 kN exciting force at 63 Hz vibration frequency, electronically controlled pressure spraying system (150L water tank capacity), and an agile 2,850 mm turning radius, it delivers outstanding surface smoothness and compaction density across urban roads, highways, stadiums, and industrial sites.
Key Features
- Hydraulic Dual Amplitude & Dual Vibration: Flexible vibration modes allow dual-drum vibration for deep layer compaction or single-drum vibration for energy saving and equipment protection.
- Powerful 4-Cylinder Engine: Driven by a V25-50C41 4-cylinder diesel engine producing 36.8 kW (50 hp) @ 2,400 rpm for reliable jobsite output.
- High Compaction Force (50.6 kN @ 63 Hz): Delivers 50.6 kN exciting force with 0.8 mm amplitude across a 1,200 mm compaction width.
- Hydraulic Steering & Parking Brake: Articulated frame structure with hydraulic steering and hydraulic parking system for smooth, lightweight, and safe operation.
- Electronically Controlled Pressure Spraying System: High-efficiency spraying system with a large 150 L water tank prevents asphalt sticking during hot-mix paving operations.
- Shock-Absorbing Seat & Excellent Sightlines: Ergonomic operator platform with a shock-absorbing seat provides clear visibility to drum edges and reduces fatigue during long shifts.
- Tight Turning Radius (2,850 mm): Articulated steering design ensures effortless maneuverability in narrow municipal roads and confined spaces.
Recommended Applications
- Asphalt Paving & Maintenance: Resurfacing, patching, and finishing urban roads, inter-city highways, and rural pavements.
- Road Base & Subgrade Compaction: Compacting soil layers, gravel bases, and aggregate sub-bases for infrastructure projects.
- Municipal & Utility Roadwork: Trench backfilling, utility road repairs, and sidewalk construction.
- Industrial & Commercial Sites: Parking lot paving, industrial yard leveling, water conservancy dikes, and sports stadiums.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LX03JS |
| Operating Weight | 2,900 kg |
| Static Line Load | 130 / 120 N/cm |
| Engine Model & Type | V25-50C41 Diesel, 4-Cylinder |
| Rated Power | 36.8 kW / 50 hp @ 2,400 rpm |
| Drive & Vibration Mode | Hydraulic Dual-Amplitude, Front + Rear Drum Vibration (Single Drum Switchable) |
| Exciting Force | 50.6 kN |
| Vibration Frequency | 63 Hz |
| Nominal Amplitude | 0.8 mm |
| Working / Drum Width | 1,200 mm |
| Steel Drum Diameter | 700 mm |
| Steel Drum Thickness (S) | 10 mm |
| Working Speed | 0–10 km/h |
| Climbing Ability (Gradeability) | 30° |
| Minimum Turning Radius | 2,850 mm |
| Minimum Ground Clearance | 300 mm |
| Wheelbase | 1,830 mm |
| Water Tank Capacity | 150 L |
| Hydraulic Oil Tank Capacity | 70 L |
| Fuel Tank Capacity | 60 L |
Overall Dimensions
- Overall Length (L): 2,800 mm
- Overall Width (W): 1,320 mm
- Working / Drum Width (W1): 1,200 mm
- Overall Height with Canopy (H): 2,593 mm
- Frame / Seat Height (H1): 2,100 mm
- Ground Clearance (H2): 300 mm
- Wheelbase (L1): 1,830 mm
- Drum Diameter (D): 700 mm
